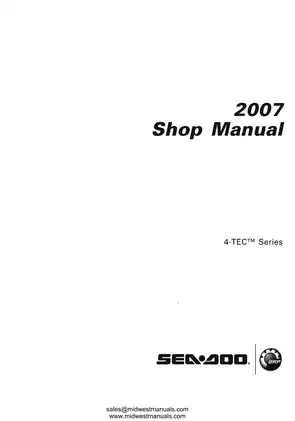

Sea-Doo GTI / GTX / RXP / RXT 4-TEC 2007 Repair Manual Set (P/N 219 100 258)

The shop manual supplies maintenance, diagnostic and repair procedures. The inserted bulletin provides additional storage guidance and refers back to the appropriate shop manual for component repairs.

The bulletin’s stated model-year coverage is 2006; the shop manual’s repair coverage follows its 2007 model list.

PDF Bookmarks, Text Search and Wiring Detail

Chapter access and diagram viewing: Embedded bookmarks link to major sections and key subsections. Manual text search is not available. The overall wiring diagram spans three sideways pages; small pin numbers and wire-color codes require zooming.

One printable, English-language PDF contains 449 pages total, including the four-page bulletin, covers, blank pages and wiring diagrams.

4-TEC Engine, Propulsion and Electrical Service

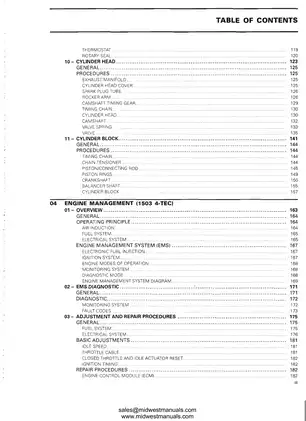

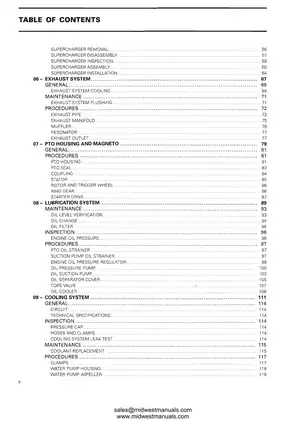

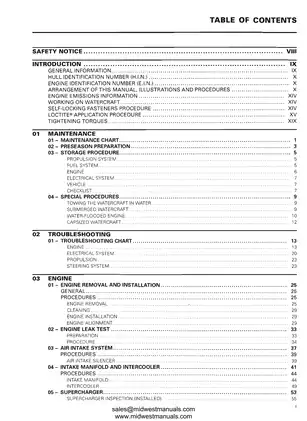

The following selected coverage highlights outline the main repair areas. Other topics include information-center setup and wake-pylon service.

• Engine repair: Step-by-step engine removal and alignment, cylinder-head overhaul, cylinder-block inspection, and PTO housing and magneto service.

• Supercharger and intake: Slip-clutch inspection and rebuild procedures, intake-manifold removal, intercooler leak testing, and exhaust-system service.

• Cooling and lubrication: Cooling-system leak tests, water-pump and rotary-seal replacement, oil-pressure diagnosis, and oil-pump inspection.

• EMS and fuel: Fault-code diagnosis, injector testing, fuel-pump pressure checks, throttle-body replacement, and closed-throttle/idle-actuator resets.

• Electrical systems: Ignition, charging and starter-circuit tests, DESS key programming, sensor checks, connector service, and wiring schematics.

• Propulsion: Jet pump impeller and wear ring replacement, drive shaft carbon ring service, reverse cable adjustment, and Variable Trim System (VTS) troubleshooting.

• Steering and O.P.A.S.: Steering-nozzle alignment, cable replacement, side-vane adjustment, and variant-specific cylinder and valve service.

This manual was written primarily for watercraft mechanical technicians already familiar with BRP service procedures and equipped with the required hand tools and special service tools.

Internal Engine Work and Supercharger Assembly

Cylinder-head coverage reaches valve guides, valve seats and hydraulic lifters. The cylinder-block chapter covers piston rings, crankshaft bearings and balancer-shaft timing, with inspection dimensions and wear limits for assessing parts before reassembly.

Engine alignment instructions identify the alignment shaft (P/N 295 000 141) and engine alignment adapter (P/N 529 035 719). Exploded views place component-specific tightening torques alongside the relevant assemblies.

Supercharger reassembly notes specify replacement of both shaft ball bearings after shaft removal and cages facing the impeller; incorrect press support can shorten bearing life.

EMS Diagnosis, Fuel Testing and Circuit References

The Engine Management System (EMS) sections connect monitoring beeps and fault-code information with sensor and circuit tests. ECM replacement coverage addresses stored vehicle information and the resets needed after replacement.

B.U.D.S. diagnostic, reset and programming procedures require a PC and the specified MPI or MPI-2 communication hardware. The manual distinguishes naturally aspirated and supercharged throttle bodies and explains the closed-throttle and idle-actuator reset.

The Engine Management System Diagram, Fuel Pump Diagnostic Flow Chart, and separate ignition, charging and starting system wiring diagrams support fault tracing. Connector views and terminal-service instructions cover Deutsch, Packard and Kostal connections.

Jet Pump, Steering and Hull Repairs

GTI Rental jet pumps receive their own wear ring specifications, so their inspection criteria can be distinguished from the other covered models.

Off-Power Assisted Steering (O.P.A.S.) coverage separates the vertically moving GTX/RXT side-vane arrangement from the GTI/RXP arrangement. Reverse-system service covers the cable, gate and linkage; VTS testing addresses the switch, motor and control module.

Hull and body work includes component replacement, gelcoat damage and fiberglass fracture repairs, with materials guidance and repair illustrations.

Seasonal Service and Water-Ingestion Recovery

Maintenance charts, preseason checks and storage procedures support routine workshop planning. Water-flooded engine coverage includes draining, contaminated-oil replacement and boil-out recovery, with additional supercharger attention where water has entered.

Live testing involves hot engine components and rotating propulsion parts; follow the manual’s task-specific safety precautions.

A Preview of Clutch-Test and Exhaust-Alignment Specifications

For supercharged intercooled engines, the clutch slipping-moment tables distinguish new superchargers at 7–12 N•m from broken-in units at 5–10 N•m, measured counterclockwise.

The exhaust installation section specifies a maximum flange-to-manifold gap of 0.5 mm. It explains how misalignment places strain on the flexible joint and can cause bellows failure.
