Sea-Doo GTI, GTX, RXP, RXT & Wake 2008–2009 4-TEC PWC Manual Set (P/N 219 100 313)

The supplement must be used with the shop manual, referring back to its procedures where a system is unchanged. The Technical Update Book explains running changes and revised service information.

Coverage limits: Sport-boat material consists of technical updates and specifications, rather than a full sport-boat shop manual. For GTX Limited iS and RXT iS, the update introduces iTC throttle control, iBR brake/reverse operation and override, iS hydraulic suspension, and OTAS; S3-hull repair procedures are deferred to separate factory documentation.

PDF Bookmarks, Text Search and Page Breakdown

Navigation and wiring detail: All three files have embedded PDF bookmarks. Text search is available only in the main manual’s four-page storage bulletin; the remaining pages and both other PDFs lack searchable text. Small wiring labels require zooming, and some diagram pages need rotation. The main PDF omits introductory page ix; printed steering page 409 appears twice.

The ZIP contains three printable PDFs totaling 786 pages. That total includes covers, blank pages, the four-page Service Bulletin 2006-15, six wiring-diagram pages and the repeated steering page in the shop manual; it also includes Service Bulletin 2008-12 (one page), Service Bulletin 2008-3 (two pages), and six additional annex pages in the Technical Update Book.

4-TEC Engine, EFI and Jet-Pump Service

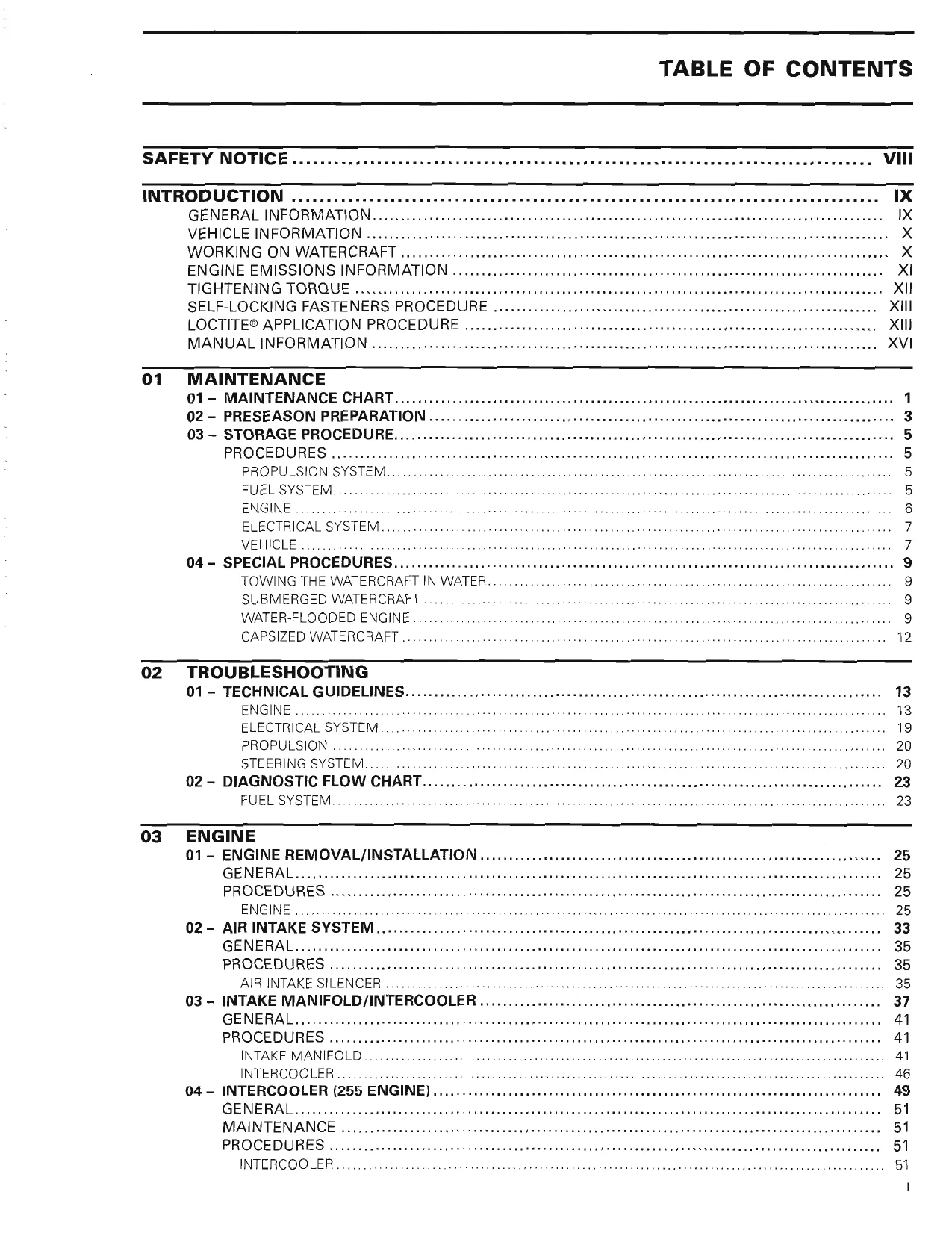

The following selected service topics show the main repair and diagnostic areas. Further examples include fuel-tank vent-system checks and water-temperature/speed-sensor testing.

• Engine repair: Engine removal and installation, engine-to-jet-pump alignment, cylinder-head and cylinder-block repair, camshaft timing, lubrication-system diagnosis, and PTO housing/magneto service.

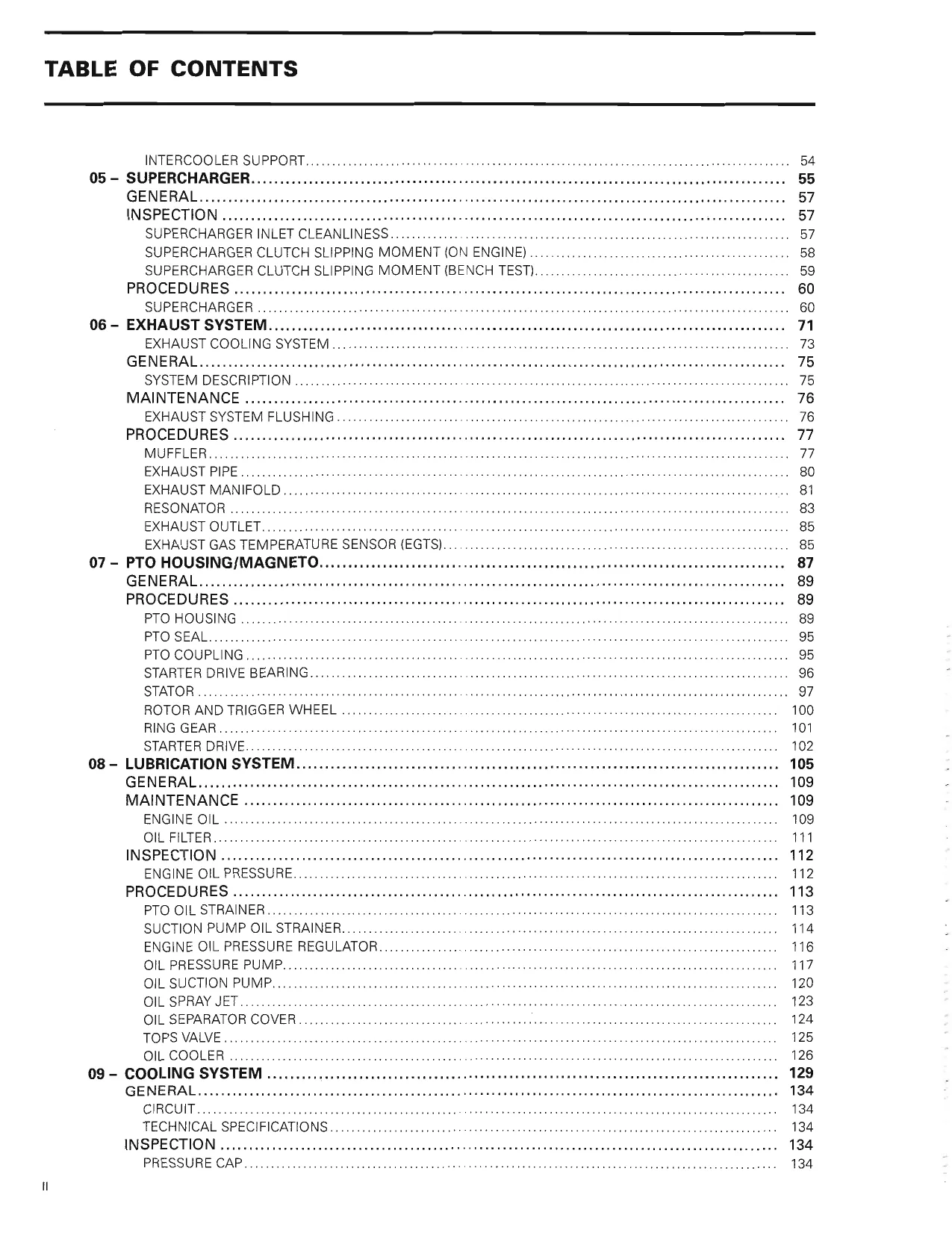

• Supercharger and cooling: Supercharger inspection and clutch repair, intercooler pressure testing, exhaust-system service, cooling-system leak tests, and water-pump repair.

• EFI and B.U.D.S.: Fuel-tank and high-pressure fuel leak tests, fuel-pump diagnosis, sensor/actuator checks, fault-code interpretation, reset functions, and ECM replacement.

• Propulsion and steering: Jet-pump and impeller repair, drive-shaft and carbon-ring service, reverse/VTS adjustment, steering alignment, O.P.A.S., and body/hull work.

• Electrical troubleshooting: D.E.S.S. key programming, ignition, charging and starting tests, gauge/fuse diagnosis, connector views, test charts, wiring schematics, and diagnostic flowcharts.

Written primarily for watercraft mechanical technicians already familiar with BRP service procedures, this set assumes access to the specified hand tools and special service tools.

Model Differences and Technical Updates

The supplement directs 2009 WAKE owners to the GTI procedures, except for the ballast and wake pylon; WAKE PRO follows the earlier WAKE platform. RXP-X RS and RXT-X RS variants are also listed.

The Technical Update Book covers running changes for the 150 Speedster, 180 Challenger, 200 Speedster/Speedster Wake, 205 Utopia, and 230 Challenger/230 Wake families.

Rotax 1503 Engine, Supercharger and Cooling

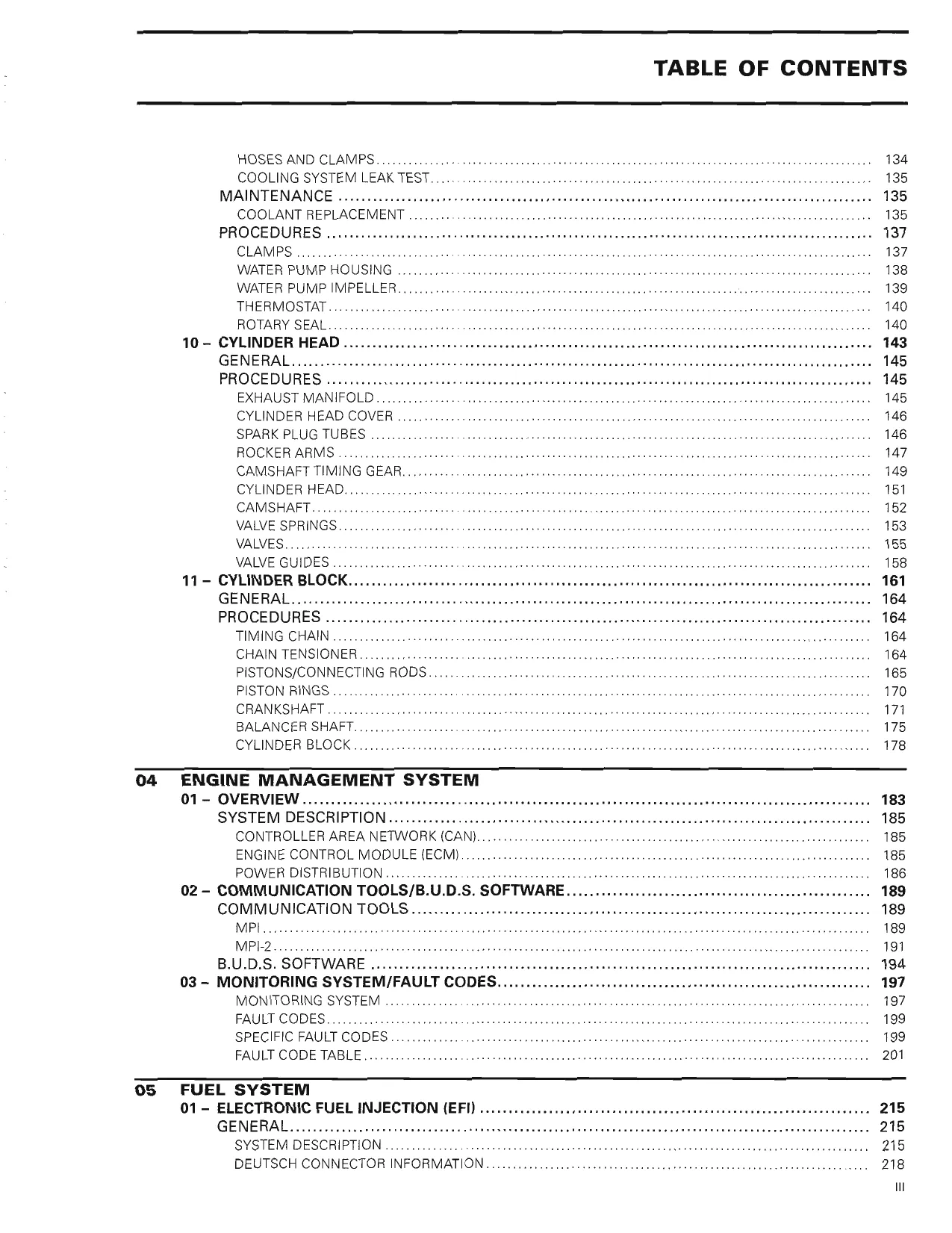

Step-by-step procedures cover cylinder-head and cylinder-block disassembly and reassembly. Internal engine work extends to valve guides, pistons, connecting rods, crankshaft and balancer-shaft inspection, with wear limits and clearances. Exploded views carry component-specific torque specifications.

Supercharger clutch slipping-moment checks are provided on the engine and on the bench, with separate specifications for new and broken-in assemblies. Intercooler procedures distinguish the intake-manifold unit from the external unit used on the 255-engine applications.

The 1503 HO ETC update identifies the electronically controlled throttle body, Bosch ECM, upgraded fuel rail, and dedicated injectors.

Alignment tooling: The shop manual identifies support plate kit P/N 529 035 506, alignment shaft P/N 295 000 141, and engine alignment adapter P/N 529 035 719. Overtightened engine mounts can strip the aluminum bilge inserts; incorrect alignment after hull-to-jet-pump shim removal can damage components.

Fuel Injection, B.U.D.S. and Wiring

Fuel diagnosis is application-specific: the Fuel System Diagnostic Flow Chart separates naturally aspirated and supercharged/intercooled pressure checks. The update identifies four non-interchangeable 1503 injector groups: 130/155, 185/215, 255, and 255 ETC.

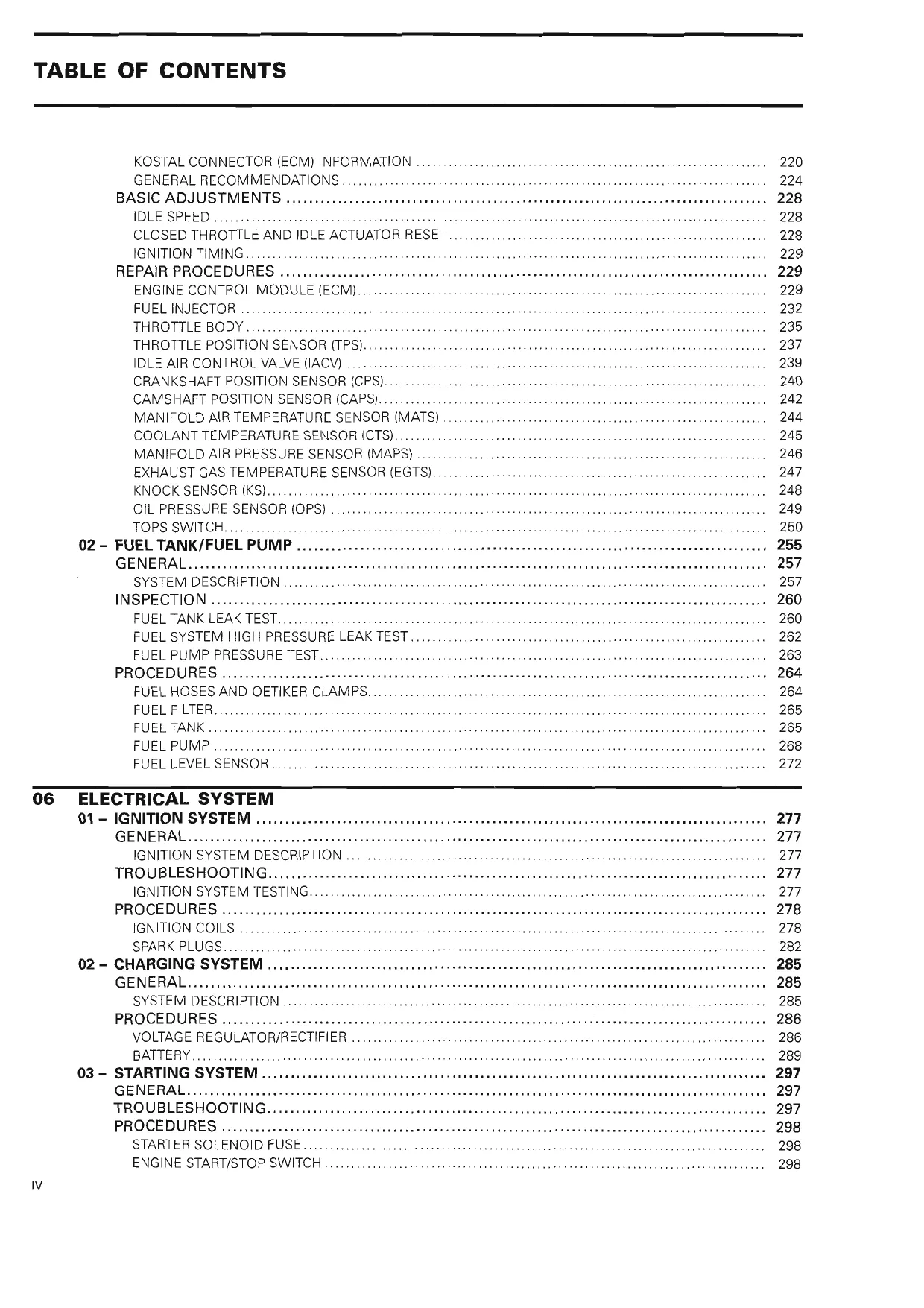

Electronic diagnosis: B.U.D.S. coverage includes ECM communication, monitoring faults, replacement data, and closed-throttle/idle-actuator resets. EFI tests address TPS, IACV, CPS, CAPS, MATS, CTS, MAPS, EGTS and OPS, together with injector, fuel-pump circuit and harness checks.

The update also covers premium gauge-cluster flashing, diode-cap troubleshooting and TOPS-switch diagnosis for unexplained engine shutdowns with electrical power still present.

Circuit references: The 2008 Sea-Doo 4-TEC Series wiring schematic and separate Ignition System, Charging System and Starting System diagrams support electrical troubleshooting. Deutsch, Packard and 41-pin Kostal ECM connector information supports the circuit tests.

Fuel-system work requires the manual’s ventilation and ignition-source precautions because fuel vapor can accumulate in the bilge.

Jet Pump, Drive Shaft and Hull Repair

The 2009 aluminum die-cast pump uses a revised impeller shaft, impeller and cone. Old and new impeller/shaft versions must remain matched pairs; the new cone does not fit previous pumps. These distinctions help identify compatible replacement parts before jet-pump repair.

For the revised pump, the update identifies blue wear rings for 130-engine applications, white for 215 and black for 255. The base manual separately identifies the Rental GTI’s black wear ring.

Pump tooling: Impeller remover/installers are P/N 529 035 820 for 130/155-engine applications and P/N 529 035 956 for 215/255-engine applications. The supplement specifies pressure cap P/N 529 036 172 and vacuum/pressure pump P/N 529 021 800 for post-repair leak testing.

The updated drive-system section covers the rubber-coated shaft, left-hand threaded sealing-ring connection and PTO-seal leak diagnosis. Body/hull procedures include molded and aluminum wake-pylon service, jet-pump support work and gelcoat repair.

Maintenance, Storage and Water-Flooded Engines

Maintenance tables cover initial service and recurring hour/calendar intervals, with greater frequency for rental or intensive use. Model-specific specification tables supply fluid capacities and lubricant requirements.

The Technical Update Book clarifies which storage procedures supersede earlier instructions, including water removal from internal intercoolers/exhaust manifolds and condensation removal from external intercoolers. Trapped water can severely damage the intercooler and exhaust manifold during freezing conditions. Recovery procedures also cover submerged, water-flooded and capsized watercraft.

Examples of Compression and Jet-Pump Test Specifications

The shop manual’s engine tables list 10.6:1 compression for naturally aspirated Rotax 1503 applications and 8.4:1 for supercharged/intercooled builds, alongside valve-train and crankshaft inspection limits.

The supplement’s jet-pump leak test specifies a maximum pressure of 70 kPa (10 PSI), maintained for at least five minutes. Its diagnostic notes distinguish minor leakage at the impeller-side seal from leaks elsewhere in the assembly.
