2006 Sea-Doo 1503 4-TEC PWC Shop Manual: GTI, GTI SE, GTX, GTX Supercharged, GTX Limited, GTX WAKE, RXP & RXT (P/N 219 100 258)

This 2007 Sea-Doo 4-TEC Shop Manual, P/N 219 100 258, covers the listed GTI and GTX variants, plus RXP and RXT models, with naturally aspirated, supercharged, and supercharged intercooled Rotax 1503 engines.

• Engine repair: Engine removal and alignment, cylinder leak testing, cylinder-head service, valve timing, and piston, crankshaft, and balancer-shaft inspection.

• Intake and supercharger: Intake-manifold and intercooler removal, supercharger clutch testing, disassembly, bearing replacement, component inspection, and reassembly.

• Cooling and lubrication: Cooling-system leak tests, thermostat checks, rotary-seal replacement, oil-pressure testing, and pressure-pump, suction-pump, and oil-cooler service.

• Engine management and fuel: B.U.D.S. diagnostics, throttle and idle-actuator resets, sensor testing, injector checks, and fuel-pump pressure diagnosis.

• Electrical systems: Ignition, charging, and starting tests; DESS key programming; connector repair; wiring diagrams; and ECM terminal identification.

• Propulsion and steering: Jet-pump overhaul, wear-ring replacement, drive-shaft and carbon-ring service, reverse-system repairs, VTS testing, and O.P.A.S. adjustments.

• Maintenance and hull: Seasonal preparation, storage, water-flooded engine procedures, body-component replacement, and gelcoat and fiberglass repairs.

Written for watercraft mechanical technicians already familiar with BRP service procedures, this manual assumes access to the specified hand tools and special service equipment.

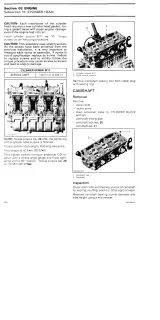

Engine and Supercharger Repair

Internal engine coverage extends to valve-guide and valve-seat work, piston-ring inspection, crankshaft bearing clearances, and balancer-shaft installation. Exploded views identify fasteners, tightening requirements, and service products, while the engine-removal section explains engine-to-jet-pump alignment.

The supercharger section separates installed-unit checks from bench inspection and assembly. It covers clutch components, spring washers, drive-gear wear, and bearing installation; its bearing-support cautions explain how pressing loads transmitted through the bearing balls can shorten bearing life.

Cooling, Exhaust, and Oil Circulation

The closed-loop cooling diagram shows the engine circuit and ride-plate heat exchanger. Related procedures cover pressure-cap testing, coolant replacement, water-pump service, and thermostat operation.

Exhaust cooling is treated separately, including configurations with and without an intercooler, flushing, and exhaust-pipe alignment. Lubrication coverage follows the dry-sump system through its pressure and suction pumps, strainers, pressure regulator, TOPS valve, and oil cooler.

B.U.D.S. Diagnostics and Electrical Testing

The fault-diagnosis section distinguishes TPS out-of-range faults from adaptation failures. That distinction helps a technician assess whether poor idle or stalling calls for sensor and wiring checks or attention to the documented throttle-reset requirements.

B.U.D.S.-based procedures assume access to the software and an MPI or MPI-2 interface. Named equipment includes the MPI-2 interface, P/N 529 036 018, and ECM adapter, P/N 420 277 010. ECM and MPEM replacement procedures address data transfer and required programming.

The manual explains ECM-controlled ignition timing and idle speed rather than presenting them as conventional mechanical adjustments. Fuel-system coverage includes injector leakage and electrical tests, pump-pressure checks, and a diagnostic flowchart distinguishing different pressure-loss patterns.

Electrical references include the 1503 4-TEC Control System diagram, temperature-sensor resistance chart, ECM connector “A” terminal view, and separate ignition, charging, and starting schematics.

Jet Pump, Drive Shaft, and Steering

Jet-pump procedures distinguish plastic and aluminum housings and identify the GTI Rental wear-ring specification separately. Inspection extends to impeller condition, shaft play, bearings, seals, and pump leakage.

Drive-system illustrations show correct and incorrect PTO-seal positioning. The accompanying warning explains how incorrect drive-shaft installation can force the seal assembly against the crankshaft splines, causing seal damage and an oil leak.

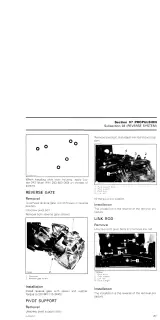

Reverse-cable and gate repairs, VTS motor and control-module tests, and steering alignment are covered. The O.P.A.S. section distinguishes the vertically moving GTX/RXT side vanes from the GTI/RXP arrangement.

Seasonal Service and Hull Repairs

Maintenance charts are supported by preseason and storage procedures, plus dedicated treatment of submerged watercraft and water-flooded engines. Hull coverage includes seat and storage-cover components, the wake pylon, and repair methods for gelcoat damage and deeper fiberglass fractures.

These engines combine pressurized fuel systems with heavy rotating components. Review the manual’s safety precautions and required service tools before starting work.

A Preview of Clutch and Oil-Pressure Test Data

These examples represent a small selection of the manual’s component-specific inspection data.

The supercharger clutch slipping-moment table specifies 7–12 N·m for a new supercharger and 5–10 N·m after break-in, distinguishing the two conditions when assessing clutch operation.

For all covered 1503 4-TEC engines, the oil-pressure table specifies a minimum of 228 kPa (33 PSI) at idle and 80°C (176°F), measured at the oil-pressure-switch location.

Bookmarked PDF and Wiring-Diagram Access

Navigation, search, and diagram detail: Embedded PDF bookmarks provide access to the main systems and specification sections. PDF text search is unavailable. Small wiring codes and pin labels require zooming, and the overall wiring diagram spans three consecutive pages.

The download contains one printable English PDF with 407 pages. That total includes two cover/title pages, one duplicated supercharger page numbered 55, and the three wiring-diagram pages.
