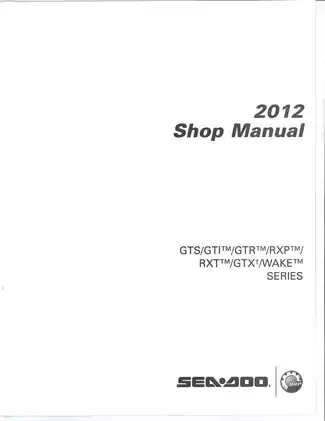

Sea-Doo 2012 GTS/GTI/GTX/GTR/RXP/RXT/WAKE Shop Manual Set (P/N 219 100 647)

The 2013 supplement must be used with the 2012 manual and updates only the systems it covers. Systems omitted from the supplement are handled in the base manual.

2012 coverage limit: GTI 23CR/23CS; GTI SE 24CR/24CS/30CS; GTI LTD 39CS; GTS 43CS; GTS Rental 25CS; GTX 38CR/38CS/42CS; GTX Limited iS 18CS; RXT RS 17CS; and WAKE 155 35CR/35CS require the 2011 Shop Manual, P/N 219 100 538, which is not included.

Missing procedure pages: The 2012 Connector Information section omits printed pages 772–773, leaving part of the APEX ErgOMate connector-handling procedures incomplete. The 2013 supplement omits printed pages 186–187 from the VTS control-button testing section, including the continuation of its multimeter tests.

PDF Search, Bookmarks and Foldout Detail

Search and diagram navigation: Most manual text has an OCR search layer, with recognition errors. The 2012 foldout is not searchable; OCR on the 2013 foldouts is unreliable. Small wiring labels require zooming, and the 2012 sheet is faint. Embedded bookmarks cover both manuals and the additional publications, but the 2013 main-diagram bookmark has no active jump.

One printable English PDF contains 1,204 pages, including 21 service-bulletin pages, 60 catalog pages and five Notes pages following the 2013 wiring diagrams. Covers and blank leaves are included. The catalog is retail/reference material, not workshop repair content.

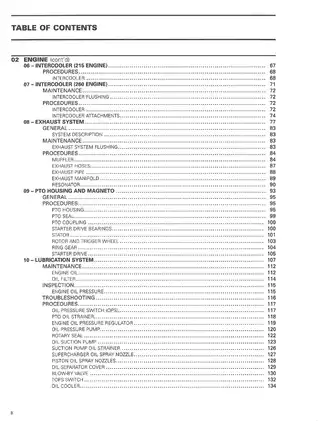

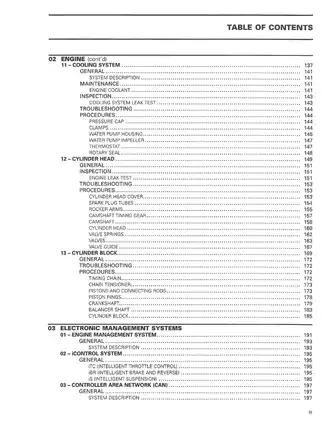

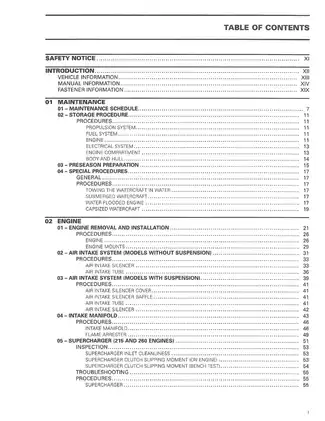

4-TEC Engine, iControl and Jet-Pump Service

The following selected topics outline the repair coverage rather than reproduce the complete contents; further examples include bailer pickup inspection and Speed-Tie unit removal and installation.

• Engine repair: Engine removal and alignment, cylinder-head and cylinder-block repair, timing and valvetrain service, plus lubrication and cooling diagnosis.

• Supercharger and intercoolers: On-engine and bench clutch tests, bearing and friction-clutch inspection, disassembly, reassembly, and model-specific intercooler leak testing.

• Electronic controls and fuel: B.U.D.S./MPI-2 communication, CAN fault tracing, iTC/EFI diagnosis, closed-throttle reset, and fuel-delivery testing.

• Electrical systems: Power distribution, ignition, charging, starting, D.E.S.S., gauges, sensors, and connector diagnosis.

• Steering and propulsion: Steering alignment, O.T.A.S., iBR/VTS adjustment and testing, jet-pump service, and drive-shaft/carbon-ring repair.

• Suspension and body: Manual (s), adjustable (aS), and intelligent (iS) suspension repair, with model-specific body, moving-deck, and hull procedures.

• Workshop references: Torque tables, pressure-test specifications, capacities, wear limits, electrical test values, exploded views, connector pinouts, and diagnostic flowcharts.

These publications were written for technicians already familiar with BRP service procedures and equipped with the required hand tools and special service tools.

Engine Configurations and Internal Repair

The specification chapters distinguish GTS 130/GTI 130, GTI 155/WAKE 155, GTR 215, GTX 155/215/260, RXT 260, WAKE PRO 215, and RXP-X 260. Naturally aspirated and supercharged/intercooled configurations have different intake, exhaust, intercooler, and access arrangements.

Internal engine work: Step-by-step procedures cover PTO housing and magneto service, camshaft timing, valves, pistons and rings, crankshaft, connecting rods, timing chain, and balancer shaft. Inspection limits accompany the component repair sections.

Boost-system repair: The supercharger chapter extends through clutch-component inspection, complete reassembly, and final slipping-moment verification. Separate intercooler chapters cover removal, installation, and leak testing; the 260 section also addresses flushing, cleaning, and attachment repair.

The supercharger procedures specify replacement of both ball bearings after shaft removal and warn that incorrect cage orientation or unsupported pressing loads can shorten bearing life. Intercooler cautions address outlet-hose scuffing against the 215 engine block and permanent internal damage from chemical cleaners on the 260 intercooler.

EFI, Security-System and Circuit Diagnosis

Fuel-system procedures cover the ECM, fuel rail, injectors, throttle body, tank, and pump. Injector operation and balance tests, fuel-pressure checks, and leak diagnosis provide more detail than a fault-code list alone.

Sensor coverage includes TPS, CPS, CAPS, MATS, CTS, MAPS, EGTS, and knock-sensor circuits. B.U.D.S./MPI-2 troubleshooting connects the monitoring system and fault-code tables with component and wiring tests.

D.E.S.S. coverage includes key programming. Gauge procedures add self-tests, maintenance-message resets, display-message diagnosis, and electrical checks.

iBR, Suspension and Hull Work

Propulsion: iBR procedures cover neutral adjustment, gate backlash, friction sleeves, functional tests, actuator service, and the U-arm. Jet-pump sections add leak testing, impeller/wear-ring inspection, shaft-bearing service, and drive-shaft sealing-component repair.

Suspension diagnosis: Separate iS electrical and hydraulic/mechanical flowcharts help distinguish sensor, control-module, hydraulic-pump, and actuator faults before replacement parts are selected.

Body and hull: Model-specific procedures cover moving decks, boarding platforms, and WAKE pylons. Hull sections address ride plates, inlet grates, sponsons, and jet-pump supports, with access differences for suspension-equipped models.

Wiring References and BRP Service Tools

Electrical references include the Power Distribution Diagram, the 2012 Sea-Doo 4-TEC-iTC all-series foldout, and the 2013 main and starting/charging/ignition sheets.

Connector material includes 48-pin ECM Molex pinouts, iBR/iS power-connector views, and the 24-pin APEX ErgOMate steering connector. Procedures address terminal identification, inspection, safe probing, extraction, and reassembly, subject to the missing APEX pages noted above.

Alignment tools: The manual specifies alignment shaft P/N 295 000 141, alignment-shaft support P/N 529 035 506, and alignment-shaft adapter P/N 529 035 719.

Electronic testing: References include MPI-2 cable P/N 710 000 851, interface card P/N 529 036 018, diagnostic harness P/N 529 036 188, and ECM adapter P/N 529 036 166. Supercharger work references retaining key P/N 529 036 027. Tools and B.U.D.S. software are not supplied with the PDF.

Seasonal Service and Water-Ingestion Procedures

Maintenance coverage includes seasonal storage, preseason preparation, towing, submerged or capsized watercraft, and water-flooded engine procedures.

Stop the engine, remove the tether cord, allow hot engine and exhaust parts to cool, support the watercraft securely, and follow the model-specific warnings, tightening sequences, service products, and final checks.

Fuel-Pressure and Cooling Leak-Test Examples

The fuel-pump outlet-pressure specification for all models in the base manual is 386–414 kPa (56–60 PSI) during the START-button check with the engine stopped.

The cooling-system chapter specifies 90 kPa (13 PSI) for leak testing through the coolant tank.
