2005 Sea-Doo Rotax 1503 4-TEC Engines Shop Manual

This 2005 Rotax 1503 4-TEC engine shop manual covers watercraft and sports boats. It details maintenance, troubleshooting, and specific procedures for various models. Part Number 290897651.

4.5starstarstarstarstar_half(2)
visibility Preview Available

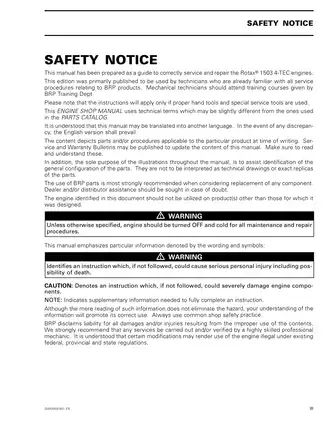

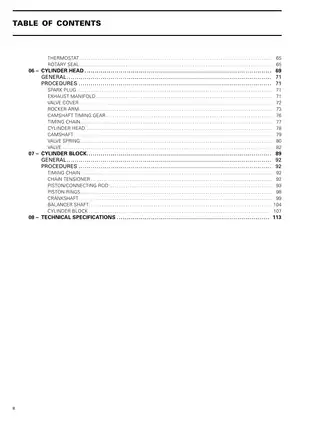

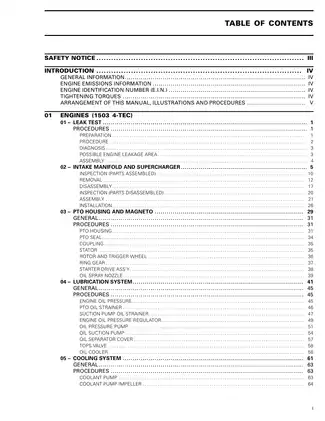

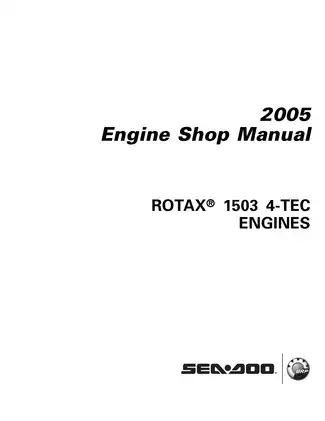

Sea-Doo 2005 Sea-Doo Rotax 1503 4-TEC Engines Shop Manual manual page preview - page 1 of 939

Sample pages from the 2005 Sea-Doo Rotax 1503 4-TEC Engines Shop Manual manual

Sea-Doo 2005 Sea-Doo Rotax 1503 4-TEC Engines Shop Manual manual preview page 1 - thumbnail
Sea-Doo 2005 Sea-Doo Rotax 1503 4-TEC Engines Shop Manual manual preview page 2 - thumbnail
Sea-Doo 2005 Sea-Doo Rotax 1503 4-TEC Engines Shop Manual manual preview page 3 - thumbnail
Sea-Doo 2005 Sea-Doo Rotax 1503 4-TEC Engines Shop Manual manual preview page 4 - thumbnail
info_outline Click thumbnails to preview different pages
$14.89 (incl. VAT) Original OEM Factory Manuals & Data Instant Download / No Shipping Fees
OR BUY NOW
verified_user
Lifetime Access
Re-download anytime
flash_on
Instant Download
Get it immediately
lock
Secure Payment
PayPal
Technical Safety Notice
keyboard_arrow_down

This official OEM document is intended for professional technicians and skilled operators. Performing service on mechanical equipment involves inherent risks. By purchasing, you acknowledge that RepairLoader provides original manufacturer data for informational purposes. Always prioritize safety: use correct tools, wear protective gear, and consult a certified professional if you are uncertain of any procedure.

Sea-Doo Models Covered & Key Technical Specifications

Models: Rotax 1503 4-TEC
Sub-models / Variants: Naturally Aspirated, Supercharged, Supercharged Intercooled
Build Years: 2005
Technical Data:

  • Engine: Rotax 1503 4-TEC
  • Leakage Test Pressure: 69 kPa (10 PSI) for 10 minutes minimum
  • Supercharger Clutch Torque (New): 7–12 Nm (62–106 lbf·in)
  • Supercharger Clutch Torque (Break-in): 5–10 Nm (44–88 lbf·in)
  • Oil Pressure Switch Test (Naturally Aspirated): 296–400 kPa (43–58 PSI) at idle (cold)
  • Oil Pressure Switch Test (Supercharged): 448–648 kPa (65–94 PSI) at idle (cold, short duration)
  • Compression Spring Free Length: 60 mm (2.362 in); Service limit 50.3 mm (1.980 in)
  • Valve Stem Diameter (Exhaust/Intake): 5.946–5.960 mm (Exhaust); 5.961–5.975 mm (Intake)
  • Outer Valve Spring Free Length: 45.45 mm (1.789 in); Service limit 43 mm (1.693 in)
  • Inner Valve Spring Free Length: 41.02 mm (1.615 in); Service limit 38.8 mm (1.499 in)
Technical Specifications
keyboard_arrow_down
Document Number / Seller:
24383 / Douglas Gonzalez
File Size:
51.24 MB
File Type:
ZIP
Language:
English
Pages:
939
Printable:
Yes
Category:
Gasoline-Engines
Last updated / verified
Jun 22, 2025

Sea-Doo Manual Features & Content Preview

2005 Sea-Doo Rotax 1503 4-TEC Engine Manual Features

  • Covers 2005 Sea-Doo Rotax 1503 4-TEC engines, including Naturally Aspirated, Supercharged, and Supercharged Intercooled variants
  • Original OEM publication SMR2005-002, dated 2005
  • Contains 37 exploded-view assembly diagrams, 16 diagnostic tables, and 14 technical specification charts
  • Delivered as a direct download the moment payment clears
  • Indexed PDF search covers every chapter and appendix
  • This 2005 edition is the primary source for technical parameters regarding the 1503 4-TEC engine line launch

Engine Service and Diagnostic Documentation

The 2005 Sea-Doo Rotax 1503 4-TEC engine shop manual provides technical details for servicing major engine subsystems. The document leak test procedures, intake manifold removal, and supercharger clutch maintenance, ensuring that the 1503 4-TEC platform maintains factory specifications. Each section includes exploded views and torque tables for proper assembly, alongside troubleshooting guidance for the lubrication, cooling, and cylinder head systems. Professional mechanics find this documentation essential for precise engine work and internal component inspections.

Technical Specifications and Reference Data

Detailed specifications within the 2005 Sea-Doo Rotax 1503 4-TEC manual define engine integrity. Torque values for critical fasteners are documented throughout, including the 10 Nm torque for manifold screws. Oil pressure for the 2005 Rotax 1503 4-TEC at 4000–7500 RPM is specified at 296–400 kPa. The manual lists the service limit for compression spring free length at 50.3 mm. For owners interested in how factory workshop documentation is structured, this publication serves as an authoritative resource. The 2005 Sea-Doo Rotax 1503 4-TEC engine shop manual covers the complete maintenance, diagnostic, and technical data for the 2005 1503-series engine platform.

Manual FAQ, Purchase & Download Details

What technical details regarding engine oil pressure and cooling system maintenance are listed in the manual? keyboard_arrow_down

Manual contains specification tables and descriptive sections for the lubrication and cooling systems, including references for engine oil pressure testing and coolant pump maintenance. It covers general information for the Rotax 1503 4-TEC engine, providing detailed service data without including procedural instructions.

Is there documentation showing exploded views of the intake manifold and supercharger components? keyboard_arrow_down

Document includes detailed exploded view illustrations that show the general configuration and component positioning for the intake manifold and supercharger assemblies.

Are the chapter sections covering the engine block, cylinder head, and PTO housing included in this manual? keyboard_arrow_down

Shop manual contains comprehensive coverage for major systems including the cylinder head, cylinder block, and the PTO housing and magneto section. It lists technical specifications, tolerances, and identification details for the Rotax 1503 4-TEC engine. Each system section includes references to internal components like the camshaft, timing chain, and crankshaft.

Which publication identifiers or revision markers help confirm the identity of this shop manual? keyboard_arrow_down

Manual is identified as the 2005 Sea-Doo Rotax 1503 4-TEC Engines Shop Manual, bearing the publication reference SMR2004-001 EN.

Can I preview whether this document includes technical information for the supercharged and intercooled engine variants? keyboard_arrow_down

Manual covers the Rotax 1503 4-TEC engine line, specifically including sections that reference naturally aspirated, supercharged, and supercharged intercooled configurations. It contains technical specification tables and exploded view diagrams specific to these engine variants.
