2005 Sea-Doo GTX, GTX Limited, GTX Supercharged, RXP, RXT & WAKE 4-TEC PWC Shop Manual (P/N 219 100 211)

This 2005 Sea-Doo 4-TEC Vehicle Shop Manual, P/N 219 100 211, covers GTX, GTX Limited, GTX Supercharged, RXP, RXT, and WAKE personal watercraft with naturally aspirated, supercharged, and supercharged intercooled Rotax 1503 engines.

Supplied as one 314-page PDF in English.

• Engine installation and exhaust: Engine removal, engine-to-jet-pump alignment, exhaust manifold inspection and installation, and water-flooded engine recovery procedures.

• Engine management: MPEM and ECM diagnosis, DESS and TOPS testing, throttle position sensor checks, and closed throttle and idle actuator resets.

• Fuel and cooling systems: Fuel pump pressure testing, injector leak checks, cooling-system leak testing, coolant replacement, and variant-specific cooling circuit diagrams.

• Electrical repair: Ignition and charging tests, starter-motor disassembly and inspection, instrument diagnosis, wiring diagrams, and electrical connector service.

• Jet pump and drive system: Pump overhaul, bearing and seal replacement, wear-ring inspection, pump pressurization, and drive shaft removal and installation.

• Steering and trim: Steering alignment, reverse cable adjustment, O.P.A.S. service, and RXP Variable Trim System (VTS) motor and mechanism testing.

• Hull and body repair: Gelcoat and fiberglass repair, ride plate sealing, sponson replacement, and WAKE pylon disassembly and inspection.

Written for watercraft mechanical technicians already familiar with BRP service procedures and equipped with the required hand tools and special service tools.

Vehicle Repair Scope and Engine Installation

Internal engine overhaul, supercharger repair, and intercooler servicing require the separate 1503 4-TEC Engine Shop Manual, which is not included in this PDF.

Air intake service covers silencer removal and installation; lubrication coverage includes oil-level verification and oil and filter replacement.

The engine installation section specifies alignment shaft P/N 295 000 141 and engine alignment adapter P/N 529 035 719, with illustrations of mount shims and alignment checks. Exhaust pipe and manifold procedures include tightening sequences and a warning that incorrect alignment can strain the exhaust bellows and cause failure.

Engine Management and Fuel Diagnosis

EMS fault-code tables connect faults with warning messages, beeper patterns, limp-home behavior, and circuit checks. The Fuse and Related Fault Code chart helps trace multiple simultaneous faults to a shared electrical supply before replacing an ECM or MPEM.

B.U.D.S. procedures use the VCK (Vehicle Communication Kit), P/N 529 035 981, for module replacement, stored-data transfer, safety lanyard programming, and diagnostic resets. The ECM controls ignition timing and firing order for the three-cylinder engine; timing requires no manual adjustment.

The Fuel Delivery System Diagnostic Flow Chart and TOPS Diagnostic Flow Chart support fault isolation. Injector, throttle body, and sensor instructions distinguish naturally aspirated from supercharged components.

Electrical testing guidance specifies ECM adapter P/N 420 277 010 and explains how improper probing can deform connector terminals, creating intermittent or permanent faults.

Cooling, Storage and Water-Flooded Engines

Cooling diagrams separate the closed-loop engine and ride plate heat-exchanger circuit from the open-loop exhaust and intercooler circuits. Maintenance schedules cover preseason preparation, while storage procedures address engine fogging, throttle body lubrication, exhaust-system flushing, and intercooler freeze protection.

Water-flooded engine coverage includes contaminated-oil removal and boil-out procedures. Troubleshooting charts address starting problems, loss of power, overheating, and oil-pressure complaints.

Jet Pump, Steering and Hull Repair

Jet-pump exploded views distinguish GTX/WAKE assemblies from those used on the supercharged models. Impeller identification tables and model-specific service-tool listings support pump repair. Drive system coverage includes carbon and floating rings, PTO seal positioning, and shaft-deflection checks.

O.P.A.S. procedures cover side vanes, cylinders, tie rods, and the filter. RXP trim service includes worm and sliding-shaft inspection; WAKE pylon procedures address the locking components.

Hull repair instructions distinguish surface gelcoat damage from fractures requiring fiberglass reinforcement. Ride plate and jet pump support installation drawings show sealing areas and tightening sequences.

Wiring Diagrams and Service Specifications

Separate ignition, charging, and starting-system wiring diagrams accompany the combined 4-TEC vehicle schematic. Connector instructions cover Deutsch, Packard, AMP, and ECM terminal identification, removal, and crimping.

Model-specific tables provide fluid capacities, electrical test values, and propulsion wear limits. Component torque specifications accompany the relevant repair procedures.

Observe workshop precautions for pressurized fuel and electrical systems, and consult a qualified technician before attempting unfamiliar service work.

File Format and Readability

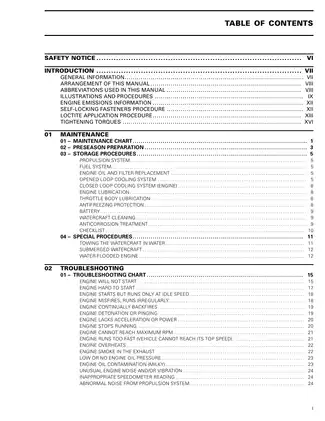

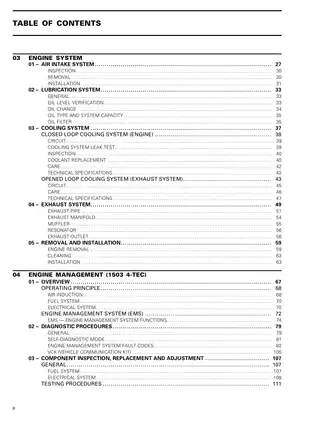

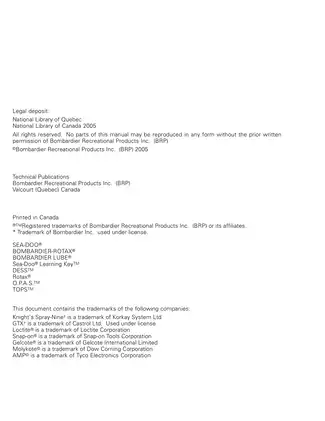

The total includes two cover pages, 19 pages of front matter, 292 pages in Sections 01–11, and one wide-format wiring diagram. All are included in the stated page count.

The main text is searchable; electrical schematic labels are not. Section and subsection bookmarks provide navigation, although the MAIN MENU bookmark links to an external file. Small wire codes and pin numbers require zooming for clear reading.
