Takeuchi TB045 Compact Excavator Workshop Manual, 1998 (P/N WK2-101E2)

308 Pages • 1 Printable PDF (English) • Download

4.6starstarstarstarstar_half(5)
$19.50 Instant Download / No Shipping Fees
or

Credit/debit card, Apple Pay or Google Pay

30-day refunds for defective files or manuals not as described. Refund policy.

print
Save & print
Keep a copy on your device
lock
Secure Payment
Stripe

Takeuchi Models Covered & Key Technical Specifications

Model: TB045

Model Year: 1998

Serial Numbers: 1453001 and higher

Wiring Diagram Serial Breaks: 1453001–1455913 and 1455914 onward. The later diagram also marks a wiring change from 1456695 onward.


  • Engine: Yanmar 3TN100L-TBZ Diesel, 3-cylinder, 2,591 cc displacement

  • Rated Output: 44.1 PS at 2,000 rpm

  • Main Hydraulic Pump Rated Pressure: 200 kgf/cm²

  • Hydraulic Tank Capacity: 95 L (25.1 US gallons)

  • Bucket Capacity (SAE): 0.141 m³ (0.185 yd³)

  • Overall Dimensions: 5,595 mm (220.3 in) length

  • Travel Drive: Two-speed hydraulic travel motor with a two-stage planetary reducer. The specifications list MAG-33V-460, and the hydraulic circuit diagram labels the travel motor MAG-33VP-460.

Takeuchi Manual Features & Selected Content Preview

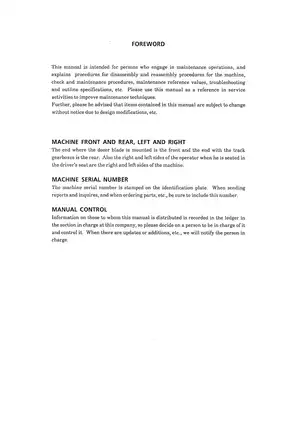

This July 1998 Takeuchi workshop manual (P/N WK2-101E2) covers the TB045 compact excavator from serial number 1453001 onward. It includes separate service data for steel and rubber crawlers and identifies differences between cab and canopy machines.

English PDF, Navigation and Diagram Detail

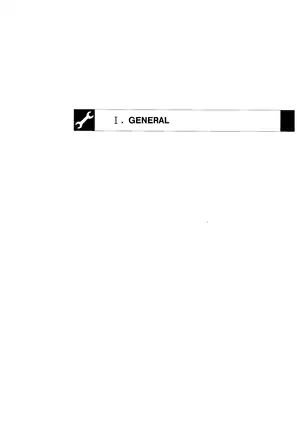

Text search and wiring labels: Use the printed section contents and page references to navigate. The PDF has no searchable text or embedded bookmarks. Zoom in to read small wire codes and switch contact labels.

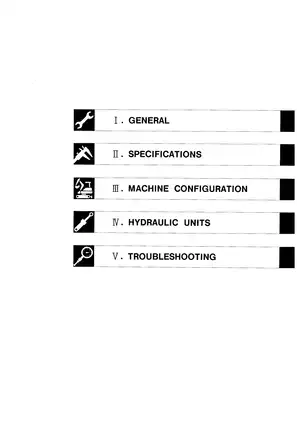

The download contains one printable English-language PDF with 308 pages, including the cover, foreword, section overview, five section dividers, eight blank pages, and 11 pages with only running headings and page numbers.


Hydraulic Overhaul, Travel and Slew Diagnostics

These are selected workshop topics. The manual also covers cab and floor-frame removal and control-lever stroke adjustment.

  • Hydraulic pumps and valves: Step-by-step procedures for disassembling and reassembling the main pump, plus gear-pump overhaul, sectional control-valve service, pilot-valve inspection, and relief-pressure adjustment.

  • Travel and slew assemblies: Removal, installation, and internal service for the travel motor, slew motor, and swivel joint, including travel parking-brake service and planetary gear inspection.

  • Undercarriage: Carrier-roller and track-roller replacement, idler and track-tension service, and drive-sprocket wear checks for steel and rubber crawler configurations.

  • Attachments and cylinders: Boom, arm, bucket, swing-bracket, and dozer-blade removal, with cylinder rebuilding, leakage tests, air bleeding, and bucket-to-arm clearance adjustment.

  • Performance testing: Hydraulic pressure checks, sub-pump discharge measurement, travel-deviation tests, slew stopping checks, and cylinder drift diagnosis.

  • Electrical systems: Serial-specific wiring diagrams and wire-color tables, with lever-lock and TRASM circuits and diagnostic checks for fuses, limit switches, and solenoids.

The manual is intended for machine maintenance personnel. Hydraulic testing and component overhaul require suitable workshop equipment.

Engine, Cooling and Machine Configuration

The Yanmar 3TN100L-TBZ section gives compression ratio and rated-output specifications. Engine removal and installation are covered alongside the engine mounts, pump coupling, radiator, oil cooler, and fuel tank. The engine section covers machine-side service through removal and installation. Internal engine overhaul requires separate documentation.

Separate rated lift charts apply to standard-arm cab and canopy machines. The boom-cylinder specifications also distinguish cab and canopy versions. Dimensional drawings and attachment tables show which buckets pair with the standard or long arm and the work each combination is rated for.

Hydraulic Teardown and Repair Standards

Main-pump overhaul covers the front and rear rotary groups, swash plate, and displacement controller. The control-valve section explains how TRASM supports simultaneous travel and attachment operation. The cylinder section covers seal assemblies, cushion mechanisms, and post-assembly leakage tests.

The hydraulic system and circuit diagrams trace the main and pilot circuits. A connection table distinguishes ISO and JCB control patterns. Travel-motor cross sections show the parking brake, counterbalance valve, and two-speed mechanism.

Dimensioned drawings cover pilot-valve installation jigs, cylinder-seal fitting tools, and travel-motor bearing and seal tools. Service notes address pump cavitation after loss of tank pressurization and seal damage from misaligned piston-rod installation.

Wear Checks and Fault Isolation

Service tables distinguish factory dimensions from allowable wear and give pin and bushing clearances for attachment inspections. Component torque tables, fluid capacities, and lubricant recommendations accompany the service standards.

Troubleshooting charts connect weak hydraulics, travel veering, and boom drift to pressure and leakage checks. The boom tests help distinguish internal cylinder leakage from control-valve leakage before parts are replaced.

Wiring Diagrams and Serial Breaks

Use the wiring diagram for 1453001–1455913 or the one for 1455914 onward. The later diagram marks a further wiring change from 1456695 onward. The diagrams show starting, charging, stop-motor, warning-indicator, and cab circuits with switch contact tables.

Safety notice: Before starting hands-on work, adjustments, or maintenance, consult the full manual and follow its precautions for stored hydraulic pressure, suspended loads, and electrical isolation.

Selected Undercarriage and Slew Inspection Values

The undercarriage tables give an allowable track-roller flange width of 8.5 mm and an allowable drive-sprocket tooth-profile wear measurement of 11.2 mm. The specified crawler-belt droop is 163–183 mm for steel tracks and 112–122 mm for rubber tracks.

For the slew-bearing looseness check, the performance table gives a standard of 0.6 ± 0.5 mm and an allowable value of 2.0 mm.
