Takeuchi TB007 Compact Excavator Workshop Manual (1998) (P/N 10445)

230 Pages • 1 Printable PDF (English) • Download

4.6starstarstarstarstar_half(5)
$19.00 Instant Download / No Shipping Fees
or

Credit/debit card, Apple Pay or Google Pay

30-day refunds for defective files or manuals not as described. Refund policy.

print
Save & print
Keep a copy on your device
lock
Secure Payment
Stripe

Takeuchi Models Covered & Key Technical Specifications

Models: TB007

Sub-models / Variants: A Type (ISO hydraulic controls), G Type (JCB hydraulic controls)

Serial Numbers: 1073001~

Wiring Diagram Serial Numbers: 1073001~1073463, 1073464~


  • Engine model: Yanmar 2TN66L-UTBA

  • Engine type: 4-Cycle Water Cooled Diesel

  • Displacement: 439 cc

  • Rated output: 8 PS at 2,550 rpm

  • Max travel speed: 3.7 km/h

  • Standard bucket capacity: 0.018 m³

  • Hydraulic oil tank level: 12 Liters

  • Machine transport weight: 760 kg

  • Travel drive: K-G08CGOAB-A orbit motor with two-stage planetary reduction gears

Takeuchi Manual Features & Selected Content Preview

This Takeuchi workshop manual (P/N 10445) covers the 1998 TB007 compact excavator, serial number 1073001 and up. It provides machine-level service procedures, hydraulic component repair instructions, and troubleshooting charts.

Chapter Bookmarks and Wiring Diagram Legibility

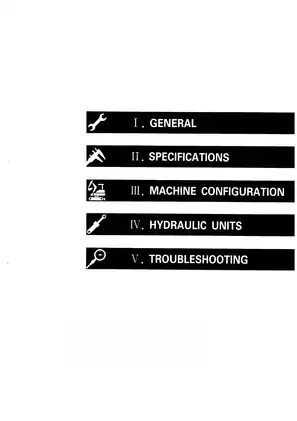

Navigation and diagram detail: Embedded bookmarks open the cover and the five main sections. PDF text search is unavailable. Small terminal numbers and wire codes on both electrical diagrams are legible when zoomed in.

The download is one printable English PDF with 230 pages. The total includes the cover and six blank pages.


Hydraulic Repair, Travel Drive, and Wiring

This selection of workshop topics shows the range of repairs and checks covered. The manual also lists compatible bucket and arm combinations and gives dimensions for special cylinder service tools.

  • Drive system: Removal and installation of the Yanmar 2TN66L-UTBA engine, radiator, hydraulic pump, and fuel tank, with a drawing of the flywheel-to-pump coupling.
  • Travel and slew: Service procedures for the rubber tracks, track adjusters, rollers, idlers, and slew bearing, plus internal repair coverage for the travel and slew motors.
  • Hydraulic components: Disassembly and assembly of the gear pump, control valve, cylinders, and swivel joint, with pump discharge checks and post-assembly leak tests.
  • Wiring and hydraulic circuits: Two serial-specific wiring diagrams with starter-switch connection tables and wire-color keys, plus hydraulic circuit diagrams for A Type (ISO) and G Type (JCB) controls.
  • Fault diagnosis: Troubleshooting charts for weak hydraulics, travel drift, poor slew response, and faults affecting the boom, arm, bucket, dozer blade, and track-width cylinder.
  • Service references: Rated lift charts, working-range diagrams, unit weights, and wear standards for track components, sprockets, and attachment pins and bushings.

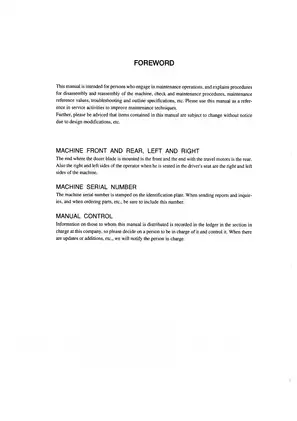

The foreword addresses maintenance personnel. The manual is suited to technicians and experienced mechanics who use pressure gauges, dial indicators, and lifting equipment during service.

Engine Installation, Controls, and Reassembly

Engine and operator controls: The drive-system chapter covers engine removal and installation as an assembly, including the cooling system, fuel lines, and pump coupling. Engine coverage is limited to installation and related systems. The control section illustrates the ISO lever layout and explains how lever stroke is matched to control-valve spool travel.

Reassembly checks: The swivel joint has a dial-indicator centering check after installation. The slew bearing procedure also specifies the position of the marked section of the outer race. Torque tables cover hydraulic hoses, fittings, and ISO strength-class fasteners. The manual gives hoisting and residual-pressure precautions for work involving suspended components or disconnected hydraulic lines.

Hydraulic Troubleshooting and Performance Checks

Symptom-based diagnosis: If the boom briefly drops as the lever is eased into motion, the troubleshooting chart helps distinguish a control-valve load-check fault from internal cylinder leakage. Separate checks cover excessive cylinder drift, travel that pulls to one side, and slew overrun. The hydraulic-unit chapter also describes cylinder bleeding after a cylinder or hydraulic line has been opened.

Selected Relief Pressure, Slew Backlash, and Coolant Data

Hydraulic relief checks: The boom, arm, and dozer blade circuits have a standard relief-test pressure of 150 kgf/cm² with a +10/−0 tolerance. The check is specified at rated engine speed, with hydraulic oil at 50–60°C and the tracks fully extended.

Slew backlash and coolant: For the check measured at the bucket teeth, the manual gives a standard slew backlash of 30 ± 15 mm and an allowable value of 105 mm. The fluid-capacity table lists 2.5 L for the engine cooling system.
