Takeuchi TL150 2004–2005 Crawler Loader Workshop Manual Set (P/N CT7E001)

The Takeuchi sections cover machine access, hydraulic repair and fault isolation; the Yanmar publications provide internal engine procedures. The TNV fuel chapter refers internal MP-pump work to a separate manual, which is included in this set.

The engine books cover broader engine families. Use the TL150 machine specifications and serial-number assignments for the installed configuration.

Text Search, Wiring Detail and PDF Contents

Search coverage and diagram detail: Machine, TNV and MP-pump text is searchable, but the TNE publication and many diagram labels are not. There are no embedded PDF bookmarks. Small wiring labels require zooming, and some lettering in the earlier machine wiring diagram remains faint.

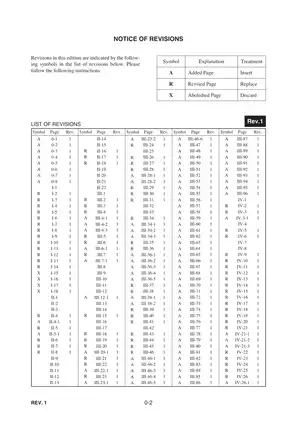

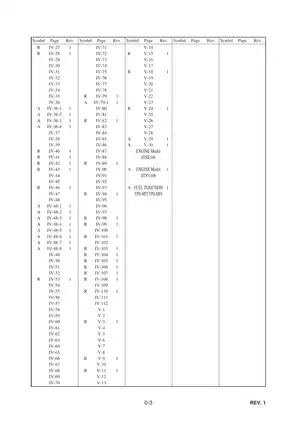

The set contains 798 pages in one printable PDF, including the original covers, front matter, revision records and blank section pages within the publication totals above.

Hydrostatic Drive, Loader Hydraulics and Diesel Repair

These selected coverage highlights show the main workshop areas rather than the complete contents. Other topics include throttle-lever adjustment and engine storage preparation.

• Engine repair: Step-by-step engine removal, cylinder-head and cylinder-block disassembly, valve and bearing inspection, compression testing, cooling-system service and turbocharger repair.

• Hydrostatic travel: HST pump disassembly, neutral and displacement-limiter adjustment, travel-motor repair, reduction gears, parking-brake operation and two-speed troubleshooting.

• Loader hydraulics: Standard and high-flow gear pumps and control valves, pilot and self-level valves, cylinder rebuilding, relief-pressure adjustment and hydraulic air bleeding.

• Frame and undercarriage: Crawler-belt, roller and travel-motor removal, canopy and floor-frame access, lift-arm removal, quick-attachment service and stopper adjustment.

• Machine fault diagnosis: Troubleshooting charts for weak or inactive hydraulics, travel deviation, missing second speed, cylinder drift and auxiliary flow-selector faults, supported by wiring and hydraulic diagrams.

• Fuel injection: Pump and governor disassembly, nozzle inspection, injection-timing adjustment and MP-pump bench adjustment, with component drawings and dedicated tool references.

• Cab climate control: A/C assembly drawings, heater-system operation, visual and electrical inspections, leak checks and diagnosis using manifold-gauge readings.

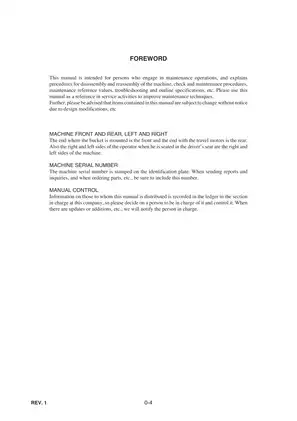

Takeuchi addresses this manual to maintenance personnel; internal engine and injection-pump work also requires the measuring equipment and specialty tools described in the relevant publications.

Machine Access and Hydraulic Overhaul

The machine sections provide removal, installation and assembly data for the drive system, engine mounts, fuel tank, frame and canopy or cab structures. Serial-specific layouts help identify the applicable assembly before dismantling components or selecting repair parts.

HST Pump Assembly section views distinguish internal construction changes. Travel Motor Reduction Gears views identify the final-drive components, while cylinder chapters add internal and external leakage tests, seal-installation details and dimensioned jig drawings.

Hydraulic hose, pipe-fitting and structural-fastener torque tables accompany the procedures. Arm and bucket cylinder dimensions and pin-and-bushing wear standards support component inspection.

The hydraulic filling section warns that trapped air after an oil change can damage hydraulic devices. Its bleeding instructions are part of the repair coverage, alongside pump-specific startup precautions.

Engine Internals and Injection Equipment

The engine publications extend beyond machine removal into crankshaft, piston, camshaft and valve-train inspection. Turbocharger chapters cover rotor-clearance checks, component inspection, disassembly and reassembly.

The TNV fuel-pump section distinguishes removal fasteners from flange bolts whose disturbance makes injection timing difficult to restore. The MP manual adds bottom-clearance diagrams, governor adjustments, nozzle spray and leakage tests, and tools such as bottom-clearance gauges 158090-51800 for MP2 and 158090-51810 for MP4.

MP-pump adjustment after replacement of major internal parts requires a dedicated pump tester.

Electrical Fault Tracing and Cab A/C

Standard and High Flow Hydraulic Circuit diagrams separate the attachment configurations. Electrical Wiring Diagrams distinguish the earlier and later engine installations, with relay, fuse, safety-bar proximity-switch and solenoid checks supporting machine troubleshooting.

The cab A/C material explains system operation and gauge-reading patterns for refrigerant loss, moisture, restrictions and expansion-valve faults. It provides inspection and diagnostic coverage rather than a complete standalone HVAC overhaul manual.

Raised lift arms, a tilted canopy and pressurized hydraulic circuits require the supports and pressure-release precautions described in the machine safety sections.

Selected Fluid Capacities and Drive Inspection Data

Fluid-capacity tables list a 108 L fuel tank and a 15 L engine cooling system. These figures accompany fuel-tank and radiator removal information.

Travel-motor specifications give a 21.52 reduction gear ratio. For internal HST-pump inspection, the cylinder block has a maximum bore diameter of 16.14 mm and a minimum height of 55.88 mm.
