Takeuchi TB175 Excavator 2003–2010 Workshop Manual Set (P/N CL3E003)

The Takeuchi manual provides machine-specific layouts and repair procedures. The Yanmar publications add internal engine and injection-equipment coverage; their broader engine-family coverage does not extend the TB175 machine coverage to other excavator models.

TNE fuel-system scope: The injection-pump and governor chapter contains a Zexel emergency-service extract. It refers detailed adjustment work to Zexel service.

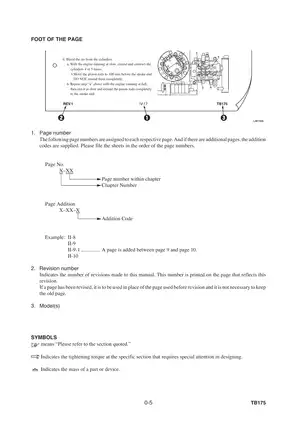

Text Search, Diagram Detail and PDF Contents

Search and diagram access: Text search is available in the Takeuchi, TNV and MP fuel-injection sections, but not in the TNE engine manual; some diagram labels are also image-based. There are no embedded PDF bookmarks. Small wiring and hydraulic circuit labels require zooming.

One printable 978-page PDF combines all four publications. That total already includes four covers, 20 blank pages and two revision-history sheets.

Engine Overhaul, Hydraulic Diagnosis and Machine Repair

The following highlights are a selection of the contents, rather than a complete contents list. Other documented topics include battery inspection and long-term engine storage.

• Engine repair: Step-by-step engine disassembly and reassembly, cylinder-head and block inspection, valve service, gear-train work, and lubrication and cooling-system procedures.

• Hydraulic units: Piston and gear pump service, mono-block and sectional control-valve repair, pilot and solenoid valve inspection, cylinder overhaul, and hydraulic filling and air bleeding.

• Travel and slew: Travel-motor and final-drive reduction-gear disassembly, slew-motor service, parking-brake inspection, swivel-joint repair, and undercarriage removal procedures.

• Frame and attachments: Cab and upper-frame removal, slew-bearing replacement, bucket and linkage service, boom and arm removal, and dozer-blade work.

• Electrical controls: Wiring diagrams, automatic glow and engine-throttle circuits, cluster-gauge checks, proportional-control diagnosis, and engine-speed adjustment.

• Air conditioning: Component layouts, electrical and leak inspections, manifold-gauge diagnosis, and symptom-based service procedures.

• Security system: Immobilizer-key registration and de-registration procedures, replacement-key requirements, and starting-fault troubleshooting.

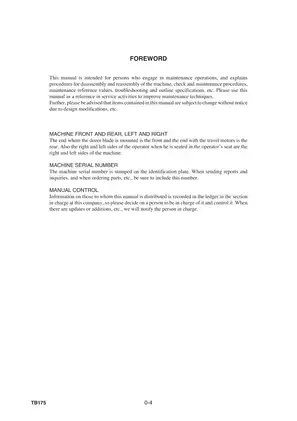

Written for personnel engaged in maintenance operations, these manuals include overhaul work that calls for lifting equipment, pressure gauges and precision measuring tools.

Hydraulic Fault Isolation and Bench Repair

The troubleshooting section follows faults technicians encounter: no hydraulic operation, low overall power, uneven travel, loss of high-speed travel, excessive slew overrun, cylinder drift, and auxiliary proportional-control problems. Its checks help narrow repair decisions before major components are removed.

Pump troubleshooting distinguishes internal pump faults from suction restrictions, air entry, oil-condition problems and relief-valve faults. Hydraulic circuit diagrams identify mono-boom, 2-piece boom and high-flow arrangements, with serial-specific layouts for selecting the appropriate connections and test points.

Bench sections extend to selector, port-relief and shut-off valves, tensioning cylinders, motor counterbalance valves and brake components. Control-valve handling: Damage to a spool’s sliding surface can make it stick and leave an actuator uncontrollable.

Engine Internals and Fuel-Injection Equipment

Engine sections cover camshaft and gear-train inspection, pistons and rings, crankshaft and bearing measurements, valve guides, and cylinder-head service. Fuel-system and lubrication-system diagrams accompany the component descriptions, with starter and alternator inspection and testing in the engine volumes.

The MP injection-equipment manual adds pump and governor disassembly, reassembly, injection-timing adjustment, governor settings, nozzle opening-pressure adjustment, spray testing and fault diagnosis. Major pump-component replacement requires readjustment with a special pump tester.

Tool documentation includes dimensioned service-tool drawings, nozzle plate 158090-51700, and MP2/MP4 bottom-clearance gauges 158090-51800 and 158090-51810.

Machine Removal, Undercarriage and Attachment Work

Numbered procedures cover engine, radiator, oil cooler, hydraulic pump and tank, and fuel-tank removal. Separate procedures address travel motors, rubber and steel crawlers, carrier and track rollers, idlers and track adjusters.

Slew-bearing installation drawings identify reamer-bolt and grease-hole orientation. Swivel-joint installation includes dial-gauge centering, while attachment sections document the swing bracket, bucket linkage, boom, arm and dozer blade.

Control Circuits, A/C and Immobilizer Service

Engine-power layout diagrams explain starting and stopping circuits. Automatic glow, throttle-controller and cluster-gauge sections describe circuit operation, adjustment and bulb replacement; proportional-control sections address solenoid-current control and fault conditions.

A/C documentation distinguishes serial-specific component arrangements and includes manifold-gauge troubleshooting. Immobilizer procedures specify the registration key and existing keys needed for registration work, alongside checks for key, antenna, fuse and controller faults.

Performance Checks and Service Reference Data

Specification sections provide dimensions, operating ranges, lifting-capacity charts, component masses, lubricant tables, tightening torques and wear limits. Attachment tables distinguish standard, long and telescopic options where applicable.

Performance checks cover travel deviation and natural travel drop, slew time and overrun, cylinder speed and drift, lever force and play, slew-bearing backlash, and crawler tension. These give the workshop reference criteria for configuration checks and post-repair assessment.

Heavy components, stored hydraulic pressure, pressurized fluids, refrigerant, electrical systems, and suspended loads require suitable lifting equipment, calibrated test instruments, proper isolation procedures, and qualified judgment during actual repair work.

A Preview of Bucket and Swivel-Joint Adjustment Data

The bucket-to-arm adjustment procedure specifies a clearance near 0.5 mm, with shim selection explained alongside the assembly drawing.

For swivel-joint installation, the manual specifies centering with a dial gauge and a maximum deviation from center of 0.25 mm.
