Kohler Command 11 / 12.5 / 14 HP Service Manual

Full service documentation for Kohler Command 11, 12.5, and 14 HP engines, covering maintenance, troubleshooting, and repair procedures. Ref: TP-2402

4.5starstarstarstarstar_half(4)
★ BEST PRICE
visibility Preview Available

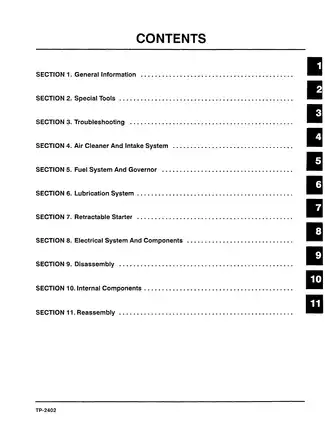

Kohler Kohler Command 11 / 12.5 / 14 HP Service Manual manual page preview - page 1 of 110

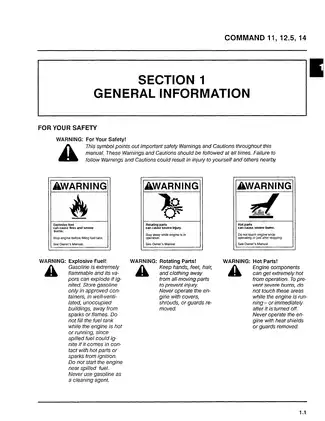

Sample pages from the Kohler Command 11 / 12.5 / 14 HP Service Manual manual

Kohler Kohler Command 11 / 12.5 / 14 HP Service Manual manual preview page 1 - thumbnail

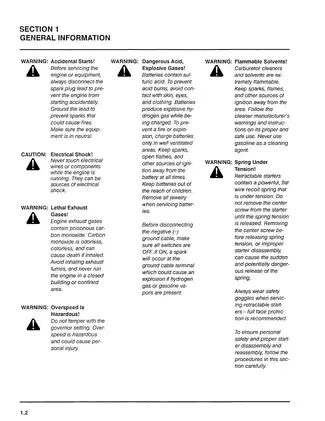

Kohler Kohler Command 11 / 12.5 / 14 HP Service Manual manual preview page 2 - thumbnail

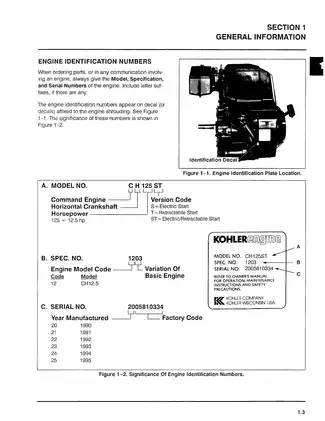

Kohler Kohler Command 11 / 12.5 / 14 HP Service Manual manual preview page 5 - thumbnail
info_outline Click thumbnails to preview different pages
$13.67 (incl. VAT) Instant Download / No Shipping Fees
OR BUY NOW
verified_user
Lifetime Access
Re-download anytime
flash_on
Instant Download
Get it immediately
lock
Secure Payment
PayPal

Kohler Models Covered & Key Technical Specifications

Models: Kohler Command 11 HP, Kohler Command 12.5 HP, Kohler Command 14 HP
Sub-models / Variants: Horizontal Crankshaft, Electric Start, Retractable Start
Build Years: 1990–1995
Serial Numbers: 2005810334 (Typical identification format)
Technical Data:

  • Engine displacement: 398 cc (24.3 cu in)
  • Compression ratio: 8.5:1
  • Oil capacity: 1.9 L (2.0 U.S. qt)
  • Peak Torque (Command 11 HP): 27.4 N-m (20.2 lbf·ft)
  • Peak Torque (Command 12.5 HP): 27.8 N-m (20.5 lbf·ft)
  • Peak Torque (Command 14 HP): 28.9 N-m (21.3 lbf·ft)
  • Spark plug gap: 1.02 mm (0.040 in)
  • Ignition module air gap: 0.20–0.30 mm (0.008–0.012 in)
  • Engine weight: 36.3 kg (80 lb)
Technical Specifications
keyboard_arrow_down
Document Number / Seller:
25871 / George Gomez
File Size:
9.95 MB
File Type:
PDF
Language:
English
Pages:
110
Printable:
Yes
Category:
Gasoline-Engines
Last updated / verified
Aug 23, 2025

Kohler Manual Features & Content Preview

Kohler Command 11, 12.5, 14 HP Engine Documentation

  • Covers 1990–1995 Kohler Command 11, 12.5, and 14 HP horizontal crankshaft engines, including electric and retractable start configurations.
  • Official Kohler publication TP-2402, documenting engine specifications and component service data.
  • Contains over 70 exploded-view assembly diagrams, torque specification charts, and electrical system wiring schematics for the 15-amp charging system.
  • File link appears in your order confirmation straight away.
  • Indexed PDF search covers every chapter and appendix.
  • This original OEM publication provides the authoritative service data and tolerances required for internal engine rebuilding and component-level diagnostic verification.

Service and Diagnostic Content

The Kohler Command 11, 12.5, and 14 HP service manual provides detailed technical data and structural guidance for the entire engine assembly. Documentation spans essential areas such as air intake and cooling, including detailed carburetor adjustment parameters and governor sensitivity tuning. Lubrication system data documents the full pressure oil system, relief valve settings, and pressure monitor switch diagnostics. Electrical system information covers the electronic magneto ignition module, stator testing, and Bendix drive starter maintenance procedures.

Specification Highlights

Internal engine component specifications include piston ring end gap, valve stem clearance, and crankshaft journal tolerances. The manual provides comprehensive fastening torque data for metric and imperial applications, including critical torque values for the closure plate, cylinder head, and connecting rod fasteners. Cylinder head bolt torque is specified at 40.7 N-m (30 lbf·ft) in the engine assembly data section. Valve clearance for the intake is listed at 0.11–0.20 mm in the cylinder head specification table. Intake valve minimum lift is documented at 8.96 mm. This official factory workshop manual serves as the primary technical reference for diagnosing and reconditioning the 1990–1995 Kohler Command 11, 12.5, and 14 HP engine series.

Manual FAQ, Purchase & Download Details

What component breakdown diagrams and parts illustrations are featured in this workshop manual? keyboard_arrow_down

Document contains detailed dimensional drawings and front, side, and PTO view diagrams. It also includes illustrations of engine identification numbers and special service tool applications.

Is the general information section the most comprehensive part of the document regarding engine specifications? keyboard_arrow_down

General information covers a wide range of data including periodic maintenance schedules, fuel recommendations, oil viscosity grades, and comprehensive technical specification tables.

Are there reference tables included that list torque values, fastener specifications, and tolerance ranges for engine components? keyboard_arrow_down

Technical data sections include torque recommendation charts for various fastener grades and sizes. The manual also provides specific clearance and wear limit tables for internal parts such as the balance shaft, crankshaft, and valve train. These tables allow for quick reference of factory-specified ranges.

Which document publication number identifies this specific Command series service manual? keyboard_arrow_down

Publication is identified as TP-2402.

Can I find chapter-level coverage for the major engine systems in this 110-page PDF document? keyboard_arrow_down

Document contains eleven distinct sections that cover major systems including the air cleaner, fuel system, lubrication, electrical components, and internal assembly. These chapters provide organized access to technical specifications and general system data.
