Mercedes-Benz E-Class 2008 Operator's Manual (P/N 211 584 29 97)
458 Pages • 1 Printable PDF (English) • Download
Mercedes Models Covered & Key Technical Specifications
Models: E-Class (E 320 BLUETEC, E 350, E 350 4MATIC, E 550, E 550 4MATIC, E 63 AMG, E 280 4MATIC [not available in the U.S.])
Models & Model Codes:
E 320 BLUETEC — 211.022 (engine OM 642)
E 350 — 211.056 (engine 272)
E 350 4MATIC — 211.087, 211.287 (engine 272)
E 550 — 211.072 (engine 273)
E 550 4MATIC — 211.090 (engine 273)
E 63 AMG — 211.077, 211.277 (engine 156)
E 280 4MATIC — 211.092 (engine 272, listed in the technical tables and not available in the U.S.)
Sub-models / Variants: Sedan, Wagon
Model Year: 2008
-
Engine power output: 268 hp @ 6000 rpm (E 350 and E 350 4MATIC)
-
Maximum engine torque: 258 lb-ft @ 2400–5000 rpm (E 350 and E 350 4MATIC)
-
Engine displacement: 213.5 cu in (E 350 and E 350 4MATIC)
-
Drive system: 4MATIC all-wheel drive on 4MATIC variants
-
Transmission type: Automatic (7-speed operation described for equipped vehicles)
Mercedes Manual Features & Selected Content Preview
This factory Mercedes-Benz E-Class Operator's Manual covers the 2008 E 320 BLUETEC, E 350, E 550, and E 550 4MATIC sedans, plus the E 350 4MATIC and E 63 AMG in sedan and wagon configurations. The technical tables also list the E 280 4MATIC, which was unavailable in the U.S. This is Edition USA, Edition A 2008, P/N 211 584 29 97, Order No. 6515 3400 13, with a press date of May 8, 2007.
Using the PDF Contents and Index

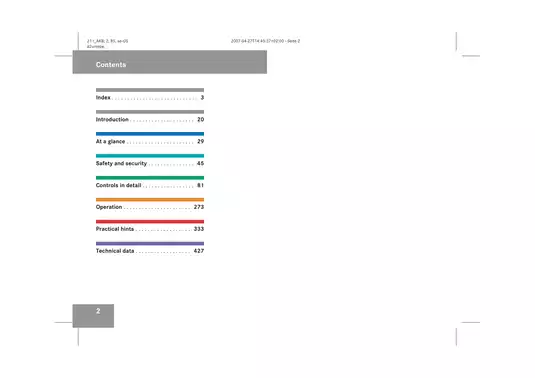

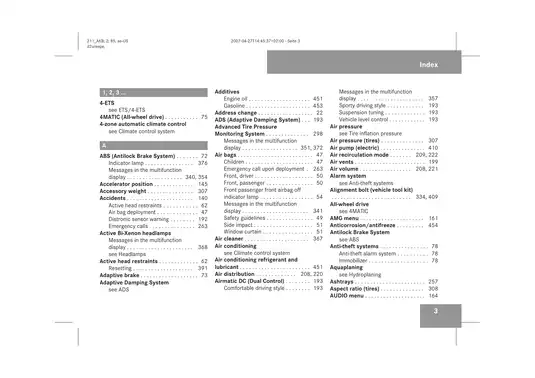

Text search and page references The PDF's text encoding limits keyword searches, and the file has no embedded bookmarks. The printed contents and alphabetical index provide page references.

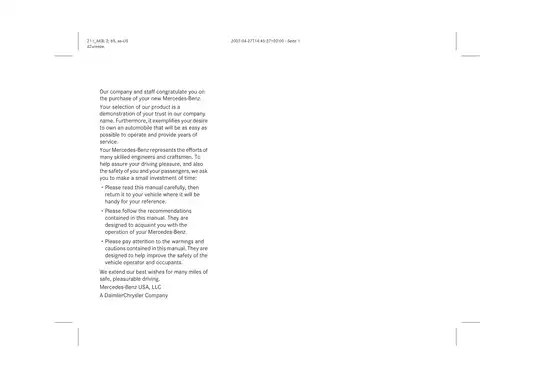

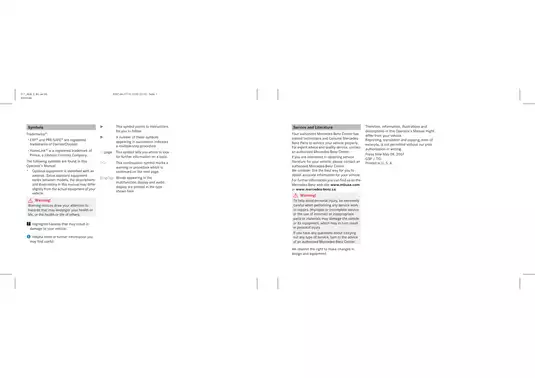

The download contains one printable English PDF with 458 pages, including the original cover, inside-cover information, and final blank numbered page.
Driving Controls, Warning Messages, and Roadside Procedures
These are selected topics from the manual. Other sections explain Tele Aid functions and HomeLink garage door opener programming.
-
Access and cabin controls include SmartKey and KEYLESS-GO, the power trunk and tailgate, seat and mirror memory, lighting and wipers, dual-zone and four-zone climate control, and the sedan panorama roof.
-
Braking and occupant protection cover ABS and BAS braking support, ESP, ETS and 4-ETS traction control, 4MATIC operation, PRE-SAFE, and occupant restraints.
-
Warning and emergency references explain multifunction-display messages and indicator lamps, emergency locking and unlocking, and resetting activated head restraints.
-
Roadside procedures cover TIREFIT or the fitted spare, diesel fuel-system bleeding after running out of fuel, battery handling, jump starting, and towing.
-
Owner service and component locations include bulb and wiper blade replacement, fuse-box access, labeled cockpit and exterior views, and model-specific poly-V-belt layouts.
The manual is suited to E-Class drivers and owners who use the factory instructions for everyday operation, basic checks, and roadside procedures.
Equipment by Model and Body Style
Distronic and the manual shift program are identified as E 63 AMG features. Airmatic DC applies to the E 550, E 550 4MATIC, and E 63 AMG. The manual also explains Parktronic where fitted and distinguishes U.S. TPMS from the Canadian Advanced TPMS and Run Flat Indicator information.
The transmission section explains selector positions, C/S programs, one-touch gear-range selection, steering-wheel controls where fitted, and limp-home operation. Sedan and wagon differences are covered in the locking, cargo, rear-seat, wiper, spare-wheel, and towing sections.
Warning Lamps, Roadside Equipment, and Service Limits
The Practical Hints tables pair display messages and warning lamps with possible causes and driver responses for braking, restraints, charging, cooling, lighting, tire pressure, fuel, transmission, and engine management. For example, the engine warning lamp chart identifies a loose fuel cap as an owner check and explains when the fuel system needs professional inspection.
Illustrations identify the Exterior View, Cockpit, Instrument Cluster, Center Console, and Door Control Panel. The roadside section locates the sedan and wagon tool kits, jack, towing eye, collapsible wheel chock, spare wheel, electric pump, and TIREFIT kit. The E 63 AMG wagon with the folding third-row seat uses TIREFIT in place of a spare.
The battery section warns that loosening terminal clamps while the engine is running can damage the alternator and electronics. It also covers window and roof synchronization after reconnecting the battery. The air-conditioning section specifies R-134a and PAG lubricant and cautions against R-12 and mineral oil.
Workshop wiring diagrams, teardown and overhaul instructions, and internal engine or transmission repairs require separate workshop literature. The separate Maintenance Booklet provides scheduled service tasks and intervals. COMAND, the audio system, and Voice Control have separate operating instructions. The Factory Approved Service Products pamphlet provides further fluid and lubricant approvals.
Wheel and Washer Specifications at a Glance
The flat-tire procedure specifies 96 lb-ft (130 Nm) for the wheel bolts after fitting the spare. The wheel tables distinguish same-size and staggered fitments, Sport and AMG packages, winter combinations, and temporary spares.
The washer reservoir holds approximately 4.8 US qt (4.5 L) without the headlamp cleaning system or 6.9 US qt (6.5 L) with it. The technical chapter also lists engine firing orders, belt lengths, electrical equipment ratings, dimensions, roof load, and capacities for the engine, transmission, axles, 4MATIC transfer case, steering, brakes, cooling system, and fuel tank.
