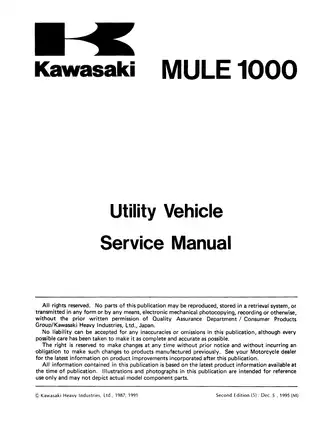

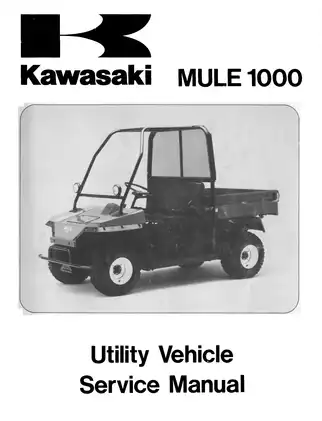

Kawasaki Mule 1000 (KAF 450) 1987–1991 Utility Vehicle Service Manual (PN 99924-1107-02)

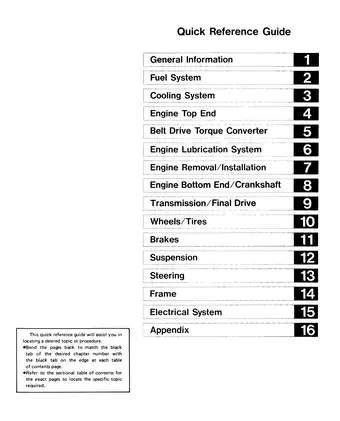

• Application and document identity: Covers the Kawasaki MULE 1000 KAF450-B1, beginning frame No. JK1AFGB1□JB500001 (the boxed check digit varies by machine). This is a 218-page PDF reproduction of the official Kawasaki service publication, organized into 16 system-based chapters and printed as Part No. 99924-1107-02, Second Edition (5), dated December 5, 1995.
• Engine, fuel, and cooling repair: Documents twin-carburetor synchronization and fuel-level work, carburetor removal and overhaul, cooling-system pressure testing and flushing, water-pump service, cam timing, valve adjustment, cylinder-head repair, and piston/cylinder inspection.
• Torque converter and driveline work: Details drive-belt inspection, drive and driven pulley disassembly, engine removal and case separation, crankshaft and connecting-rod bearing service, balancer work, transmission teardown, differential-shift service, final-drive shafts, ball-joint boots, and oil seals.
• Brakes, chassis, and steering: Includes brake-fluid replacement and line bleeding, master- and wheel-cylinder repair, brake-drum service, wheel alignment and toe-in, tire and front-wheel-bearing work, suspension arms, struts, steering-gear preload, tie-rod adjustment, and cargo-bed, front/rear bar, and fender removal.
• Diagnostics and technical reference: Provides the full wiring diagram, electrical test charts, system routing views, coolant- and oil-flow charts, exploded assemblies, troubleshooting coverage, component-specific torque and locking-agent tables, capacities, clearances, wear limits, and electrical test specifications.

Model and Mechanical Coverage

This manual is specific to the KAF450-B1 application shown on Kawasaki's model-identification and model-application pages. The powertrain is the liquid-cooled 454 mL, four-stroke DOHC twin with two Keihin CVK30 carburetors, a belt-drive torque converter, forward/reverse transmission, gear final drive, and differential-shift mechanism. Chassis sections cover rack-and-pinion steering, front struts, semi-trailing rear suspension, hydraulic drum brakes, the parking brake, cargo bed, bars, fenders, and underbody support points.

Fuel-system coverage goes well beyond routine adjustment. It includes throttle and choke cable setup, idle speed, carburetor synchronization, service fuel-level measurement, cleanliness inspection, carburetor disassembly and inspection, fuel-pump and tank work, air-cleaner service, and the optional snorkel kit. The cooling chapter adds coolant draining and filling, air bleeding, pressure testing, flushing, radiator and fan removal, thermostat and cap inspection, water-pump disassembly, mechanical-seal checks, and fan/coolant-temperature switch service.

Factory Repair Depth

The engine chapters follow the repair from compression testing and valve-clearance adjustment through camshaft-chain timing, cylinder-head removal, valve-guide and valve-seat work, piston and ring inspection, and complete engine removal. Bottom-end procedures cover crankcase splitting, crankshaft and connecting-rod installation, bearing-insert selection from Kawasaki's identification marks, clearance checks, balancer service, and starter-clutch and chain work. The transmission/final-drive chapter continues with shaft disassembly and assembly, shift-fork and drum inspection, differential gears, drive-shaft bearing replacement, rubber-boot service, and oil-seal replacement.

The brake section includes hydraulic fluid service, line bleeding, master-cylinder overhaul, hose and pipe replacement, front and rear drum removal, brake-panel service, wheel-cylinder inspection, shoe-lining wear checks, and parking-brake adjustment. Electrical repair coverage includes battery charging and condition tests, alternator output and stator resistance, regulator/rectifier tests, IC igniter and ignition-coil checks, starter-motor disassembly, relay testing, fuel-pump operation, radiator-fan circuit diagnosis, lighting, switches, fuses, and wiring inspection.

Tools, Diagrams, and Service Data

Factory tool references are tied to the related jobs, including Vacuum Gauge 57001-1198, Fuel Level Gauge 57001-1017, Valve Spring Compressor Assembly 57001-241, Clutch Holder 57001-1243, Brake Drum Remover 57001-1260, and Rotor Puller 57001-1258 with Adapter 57001-1279. Reference graphics include the Cable, Wire, Hose, and Pipe Routing views, Coolant Flow Chart, Engine Oil Flow Chart, full Wiring Diagram, Electrical Part Location view, and the three-step regulator circuit test diagrams.

Two cautions show the level of repair detail. With the camshafts removed, Kawasaki warns that the cam chain must stay taut whenever the crankshaft is turned; a kink at the lower sprocket can damage both the chain and sprocket. The charging-system chapter also warns against striking the alternator rotor itself because impact can cause its magnets to lose magnetism.

Before engine removal, brake work, or any repair performed under the vehicle, use the illustrated jack and support locations, secure the vehicle against movement, and disconnect the battery ground as directed in the manual.
