Kawasaki Mule 2010, 2020 & 2030 UTV Service Manual Set | 2010–2020 (P/N 99924-1133-01)
302 Pages • ZIP Download: 2 Printable PDFs • 60.62 MB
Kawasaki Models Covered & Key Technical Specifications
Models & Model Codes: Mule 2010 (KAF540-C1), Mule 2020 (KAF540-D1), Mule 2030 (KAF540-E1, supplement)
Sub-models / Variants: Selectable 4WD/2WD with high/low range (KAF540-C1), single-range 2WD (KAF540-D1 and KAF540-E1)
Beginning Frame Numbers: KAF540-C1 (JK1AFAC1□LB500001), KAF540-D1 (JK1AFAD1□LB500001), KAF540-E1 (JK1AFAE1□LB500001). The digit shown as □ varies by vehicle.
Model Years: 2010–2020 (2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020)
-
Engine: 4-stroke, OHV, 1-cylinder, 535 mL displacement
-
Cooling system: Forced air-cooled
-
Lubrication system: Forced lubrication (wet sump), dry engine oil capacity 4.6 L (KAF540-C1), 3.7 L (KAF540-D1 and KAF540-E1)
-
Carburetor: Mikuni BV30-22
-
Idle speed: 900 ± 50 rpm
-
Drive system: Belt drive torque converter, 3.5 ~ 0.98 reduction ratio
-
Final drive: Gear (4WD/2WD on KAF540-C1, 2WD on KAF540-D1 and KAF540-E1)
-
Electrical: 12V 19Ah battery, 14A at 4000 rpm alternator output
-
Front suspension: MacPherson strut, 100 mm travel
-
Rear suspension: De Dion axle, 70 mm travel
-
Brake system: Drum (Hydraulic) front and rear
-
Tire size (KAF540C): 22 x 11.00-10
-
Tire size (KAF540-D1 and KAF540-E1): 20 x 10.00-10
Kawasaki Manual Features & Selected Content Preview
| Publication | Pages |
|---|---|
| Kawasaki Mule 2010 (KAF540-C1) and Mule 2020 (KAF540-D1) Utility Vehicle Service Manual, P/N 99924-1133-01, First Edition (2), Apr. 5, 1995 | 287 |
| Kawasaki Mule 2030 (KAF540-E1) Utility Vehicle Service Manual Supplement, P/N 99924-1145-51, First Edition (1), May 11, 1991 | 15 |
Mule 2030 service requires both publications. The supplement uses the Mule 2020 as its baseline and documents the changes specific to the 2030.
PDF Navigation and Wiring Diagram Detail
Text search and diagram labels: Neither PDF has text search or embedded bookmarks. In the base manual’s wiring diagram, zoom in to read the small wire-color codes and switch terminal labels.

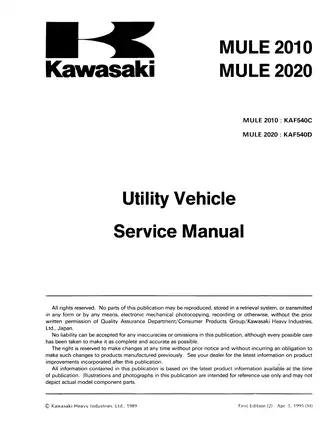

The ZIP contains two printable PDFs totaling 302 pages, including both publications’ covers and five blank pages in the base manual.
Engine, Drivetrain, and Electrical Service
These selected topics are part of the workshop coverage. The base manual also includes a periodic maintenance chart and procedures for removing and installing the cargo bed.
- Engine repair: Complete engine removal and installation, compression testing, cylinder-head service, and inspection of the piston, cylinder, camshaft, crankshaft, connecting rod, and balancer.
- Fuel and cooling: Carburetor teardown and adjustment, governor setup, throttle and choke cable service, and work on the forced-air cooling fan, housing, and shrouds.
- Converter and transmission: Belt wear inspection, drive and driven pulley teardown, transmission shaft and shift-fork inspection, and differential disassembly.
- Mule 2010 final drive: High/low shift mechanism, bevel gear setup, front final gear case and limited-slip differential service, and 2WD/4WD shift case procedures.
- Brakes and chassis: Hydraulic brake bleeding, master and wheel cylinder service, drum inspection, steering gear preload and centering, wheel alignment, and suspension service.
- Electrical diagnosis: A shared Mule 2010/2020 wiring diagram with model-specific callouts, electrical parts locations, charging and igniter tests, starter repair, and switch and wiring checks.

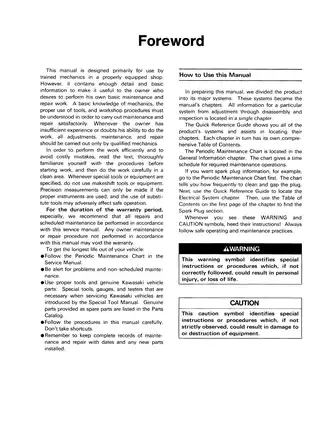

Kawasaki wrote the base manual primarily for trained mechanics in equipped shops. Owners familiar with workshop tools and procedures can also use it for basic maintenance and repairs.
Mule 2030 Fuel and Drivetrain Changes
The supplement shows revised fuel routing with a relief valve and a different filter. The Mule 2030 omits the resonator, torque converter cover, converter cooling fan, converter case, and differential shift mechanism. The supplement also supplies model-specific wheel and tire illustrations and specifications.
Engine Inspection and Lubrication
Cylinder-head coverage includes valve clearance, valve seat work, and guide inspection. The cylinder section gives measuring and boring and honing information, while the bottom-end chapter covers tappets and crankcase assembly.
The Engine Oil Flow Chart accompanies oil pump and relief valve service, oil pressure testing, screen filter inspection, and oil pipe removal and installation. A low pressure reading leads into checks of the pump and relief valve before the rest of the lubrication system is investigated.
Drive Setup, Brakes, and Steering
Converter pulley exploded views show the assemblies alongside the teardown procedures. Kawasaki warns that gripping the spider with Clutch Holder 57001-1243 can break it. In the Mule 2010 front final gear case, excessive preload can damage the pinion bearings, and incorrect tooth contact can damage the bevel gears. The manual groups those checks with backlash adjustment and identifies Pinion Gear Holder 57001-1281.
The brake chapter covers fluid replacement, pedal play, hose and pipe inspection, shoe lining and spring checks, and parking brake cable adjustment. Chassis procedures include toe-in and tie-rod setup, steering knuckles, MacPherson struts, suspension arms, rear shocks, leaf springs, dampers, drive shafts, axles, and seals.
Fault Finding and Workshop References
The wiring diagram pairs wire colors with switch connection tables, which help trace faults in the starter, lighting, and interlock circuits. The troubleshooting appendix also covers running, shifting, drivetrain noise, braking, charging, steering, and handling faults. Charging tests cover the alternator and regulator/rectifier, while the starter section includes brush and pinion inspection.

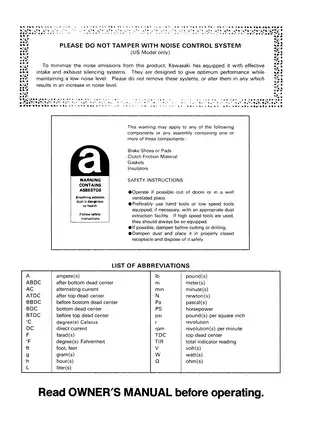

The manual includes routing views for cables, wires, hoses, and pipes, plus torque and locking-agent tables, a general fastener torque chart, fluid capacities, clearances, and electrical test values. Other tool callouts include Pressure Cable Luber K56019-021, Oil Pressure Gauge 57001-164, Brake Drum Remover 57001-1260, and Kawasaki Hand Tester 57001-983. Review the factory warnings before fuel-system work, brake bleeding, electrical testing, or service around rotating converter components.
Sample Engine Checks and Brake Drum Limits
The base manual specifies 0.1 mm clearance for both intake and exhaust valves at compression top dead center with the engine cold. Its oil pressure check gives a standard range of 166–206 kPa at 3,500 rpm and an oil temperature of 100°C (212°F).
For the base models’ brake drums, the manual distinguishes the standard inside diameter of 180.00–180.16 mm from the 180.75 mm service limit used in the drum wear inspection.
