Yamaha YZ125N 1985 Owner's Service Manual (P/N LIT-11626-04-78)

The Yamaha YZ125N Owner's Service Manual, P/N LIT-11626-04-78, is the first edition, August 1984, for the 1985 competition-only YZ125N, model code 55Y. The original cover also carries identifier 55Y-28199-10. Coverage extends from owner checks and routine maintenance to major engine, drivetrain, chassis, and electrical repair.

PDF Bookmarks, Diagram Detail, and Page Count

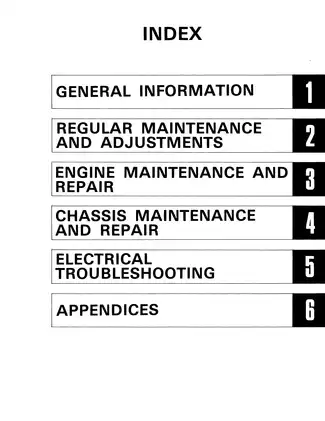

Search and navigation: PDF text search is not available. Embedded bookmarks provide access to all six chapters and selected subsections. Small wire-color codes and connector labels in the ignition diagram are readable when enlarged.

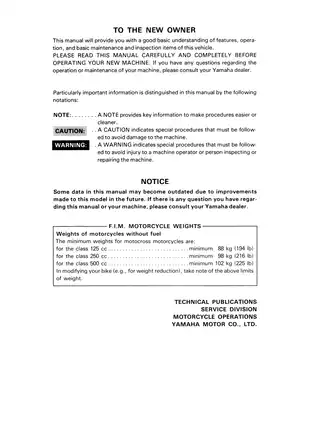

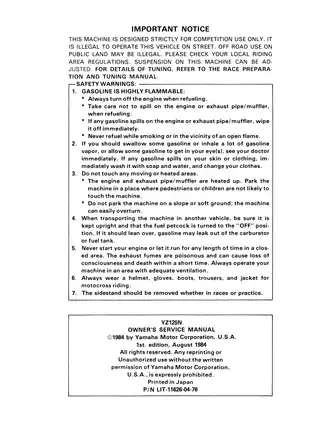

The ZIP contains one printable, 120-page PDF in English. That total includes six cover and introductory/index pages, two blank pages, two pages of warranty information and noise-regulation/maintenance-record material, and three memo pages.

Engine Repair, Chassis Service, and CDI Diagnosis

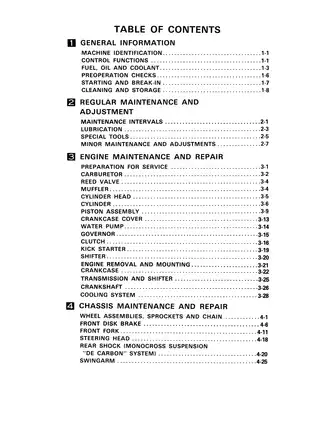

The following highlights are a selection of the contents, rather than a complete table of contents. Other topics include the rain-use fender plate and replacement-part break-in guidance.

• Maintenance and setup: Fuel and oil requirements, coolant service, preoperation checks, starting, cleaning, storage, maintenance intervals, lubrication points, and routine adjustments.

• Top-end and induction repair: Mikuni VM34SS carburetor inspection, reed valve and muffler service, cylinder-head and piston work, plus power-valve assembly, alignment, and governor inspection.

• Bottom-end and drivetrain work: Step-by-step procedures for clutch service, engine removal, crankcase separation, transmission inspection, and crankshaft removal and installation, with kick-starter and shifter service.

• Cooling-system procedures: Water-pump inspection and reassembly, radiator removal and installation, cooling-system leak tests, radiator-cap testing, and hose inspection.

• Wheel and brake service: Wheel removal, spoke replacement and truing checks, sprockets and chain, rear drum-brake inspection, front caliper and master-cylinder repair, and hydraulic bleeding.

• Suspension and steering: Front-fork oil replacement and overhaul, steering-head service, Monocross De Carbon shock settings, brake-actuated suspension, and swingarm/linkage inspection.

• Electrical diagnosis and reference data: Ignition wiring diagram, CDI fault isolation, cable-routing drawings, troubleshooting charts, special-tool identification, torque tables, wear limits, clearances, and adjustment specifications.

Written for the owner, the manual explains operation and basic maintenance; its internal repair sections are suited to readers with mechanical experience and access to the specified measuring equipment and special tools.

Carburetor, Power Valve, and Internal Engine Work

The original VM34SS Mikuni carburetor, identification mark 55Y-00, is documented with baseline jetting, float-height checks, and tuning/repair-part tables. Top-end inspection covers reed-petal sealing, cylinder-head flatness, cylinder condition, piston clearance, ring end gap, and piston-pin and bearing wear.

Power-valve drawings show lubrication points, push-rod and lever alignment, and the post-assembly operating check. Governor inspection addresses cam and retainer wear.

Repair preparation: The manual distinguishes work performed with the engine installed from transmission, crankshaft, and crankcase-bearing service requiring engine removal. This helps establish the extent of disassembly and the tools needed before starting a repair.

Lower-engine coverage includes clutch friction plates, springs, plate warpage, push-rod straightness, mechanism adjustment, and primary drive service. Transmission inspection examines shift forks, cam grooves, gear teeth, and engagement dogs; crankshaft measurement covers rod play, side clearance, and runout.

Yamaha's cautions explain how hammering a stuck piston pin can damage the rod, piston, and bearing, and how forcing uneven crankcase separation can damage the machined cases.

Cooling, Brakes, and Wheel Assemblies

Water-pump coverage identifies impeller, bearing, and oil-seal inspection points, including seal orientation and lip protection during assembly. Radiator procedures distinguish cooling-system leak testing from cap-valve testing.

The chassis chapters match the hydraulic front disc brake and rear drum brake. They address caliper pistons and seals, master-cylinder inspection, brake-fluid handling, rear shoes and drum, brake cam and torque arm, wheel bearings, rims, spokes, chain, and sprockets.

Wheel-bearing condition is checked in the manual; bearing replacement is referred to a Yamaha dealer.

Front Fork and Brake-Actuated Monocross Suspension

The pneumatic-mechanical front fork has documented spring options, oil-level settings, air-pressure limits, tube-height settings, and compression-damping adjustment. Its service section includes a drawing for making an oil-level checking tool. Fork cautions address oil/seal ejection and taper-spindle damage during disassembly.

The rear section explains how rear-brake operation changes compression damping. It covers spring preload, rebound and compression adjustment, control-wire adjustment and replacement, shock removal, spring removal, and installation.

Shock-service boundary: The nitrogen-charged De Carbon cylinder and reservoir are not covered for internal overhaul. Handling and disposal instructions accompany the external service procedures. Swingarm and relay-arm coverage includes bearing, bushing, seal, and collar inspection, lubrication, and original shim placement.

Detailed carburetor and suspension race tuning is referred to the separate Race Preparation and Tuning Manual, which is not included.

Hitachi Ignition Diagnosis and Workshop Tools

Electrical coverage identifies the Hitachi M100-39 CDI magneto, TIA01-51 CDI unit, and CM61-29 ignition coil. The diagnostic sequence checks spark quality, the engine-stop switch, source and pickup coils, connectors, and ignition-coil windings.

Symptom charts separate ignition, compression, and air/fuel causes of starting and high-speed problems. Further charts cover overheating, coolant loss, shifting, clutch faults, steering looseness, wheel runout, brakes, and frame/swingarm concerns.

Special tools: Ignition timing uses dial gauge YU-03097, stand YU-01256-1, and extension YU-01256-2. Steering and clutch work identify wrench YU-01268 and holding tool YM-91042.

Fork tools include holder/adapter YM-33962 / YM-01326 and seal/bushing tool YM-08020. Crankcase and crankshaft work identifies separator YU-01135 and installation tools YU-90058, YU-90060, and YU-90062; electrical testing uses pocket tester YU-03112.

Representative illustrations include the VM34SS exploded view, power-valve/governor layouts, crankcase and transmission views, front-disc-brake assembly, fork and De Carbon shock drawings, and ignition wiring/cable-routing diagrams.

The cooling system, hydraulic front brake, air-assisted fork, and nitrogen-charged rear shock involve pressurized fluid or stored energy. Review the applicable warnings and keep the machine securely supported during chassis and suspension repair.

Preview of Piston and Ring Inspection Data

The piston inspection section specifies a piston-to-cylinder clearance of 0.065–0.070 mm. It relates that clearance to the measured cylinder bore and piston diameter rather than treating nominal piston size alone as the inspection result.

For piston-ring inspection, the installed end-gap range is 0.35–0.50 mm, with a separate 0.8 mm service limit. The section also covers ring seating and piston-pin/bearing condition.
