1979-1985 Kawasaki KZ500/KZ550/ZX550 Service Manual
Complete 1979-1985 KZ500, KZ550 & ZX550 service documentation with engine, clutch, transmission, electrical systems, brakes and chassis repair procedures. Full teardown sequences and torque specifications included.

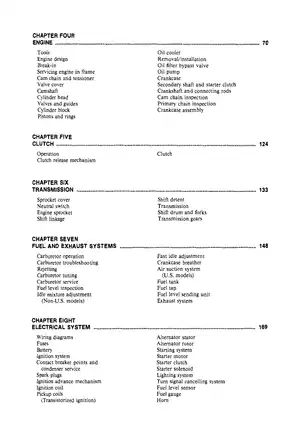

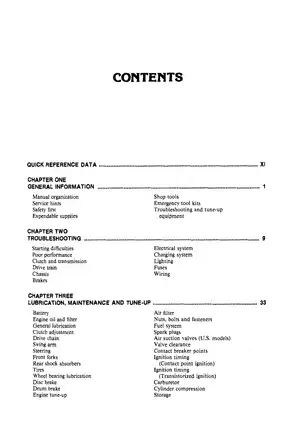

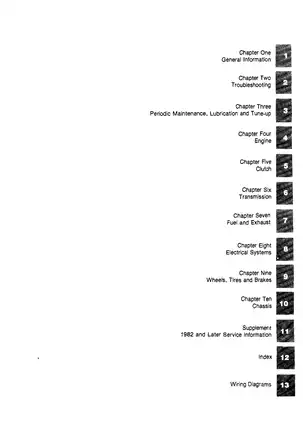

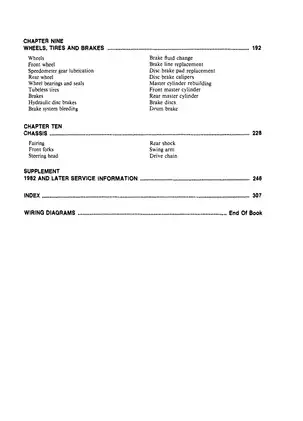

Manual Preview
Sample pages from the 1979-1985 Kawasaki KZ500/KZ550/ZX550 Service Manual manual
Purchase & Download
Models Covered & Key Technical Specifications
Kawasaki KZ500, KZ550 & ZX550 (1979-1985) Strategic Technical Library | Kawasaki KZ500/550/ZX550 Series Repository.
- Design Volume Data: 497 cc (30.3 cu in) is rated at the KZ500 engine displacement Architecture.
- Advanced Charge Quantity: For optimal operation, 0.024-0.028 in. (0.6-0.7 mm) establishes the spark plug gap requirement Norms.
- Technical End Play: Valve clearance supports 0.004-0.008 in. (0.10-0.20 mm) intake valve adjustment Bounds.
- Standard Cooling Specs: Fork air pressure provides 8.5 psi (60 kPa) on KZ550-C models Topology.
- Prescribed Mass Specs: Compression pressure governs 130-160 psi minimum operating threshold Matrix.
- Engineered Twist Specifications: Cylinder bore achieves 1.396 in. (35.45 mm) internal diameter on KZ550 models Standards.
Professional Workshop Service Manual & Technical Specifications
Specialized Factory Manual: Motorcycle Kawasaki KZ500, KZ550 & ZX550 1979-1985 - Comprehensive Repair & Maintenance Manual Parts-Reference
Engine-Type: KZ500 (1979-1985), KZ550 (1979-1985), ZX550 (1979-1985) // Procedure-Type: Service Documentation / Technical Systems Logic // Engine-Type: Complete specifications and wiring diagrams included.
| Documentation Section | Coverage Area | Reference Material |
|---|---|---|
| Engine Systems | Cylinder head, camshaft, crankshaft, pistons, valves, oil pump, cooling | Complete specifications provided |
| Transmission & Clutch | Shift drum, gears, forks, clutch plates, release mechanism | See Chapters Five and Six |
| Fuel & Ignition | Carburetor operation, ignition timing, contact breaker points, transistorized systems | Documented specifications included |
The documentation provides guidance on general information and periodic maintenance. Clutch and transmission systems, engine lubrication schedules, and tune-up procedures are covered alongside detailed cam chain and tensioner information. Valve clearance adjustment references and cylinder compression testing documentation are included, then service hints and safety precautions. Following this sequence, electrical systems and starting mechanisms, alternator stator and rotor assemblies, and brake system bleeding procedures. Wheels, tires and brake components, suspension adjustment documentation, and drive chain maintenance sequences are presented. Finally, fuel tank and carburetor service information, exhaust system details, and 1982 and later service supplements complete the manual structure.
Diagnostic Sequences
The manual documents troubleshooting procedures for engine performance issues, starting difficulties, and poor idling conditions. Ignition system operation is detailed for both contact breaker point and transistorized ignition configurations. Compression testing procedures and fuel delivery inspection methods are referenced throughout. The documentation includes misfiring diagnosis, loss of power analysis, and overheating problem identification. Clutch drag and slip conditions, transmission shifting difficulties, and drive train noise analysis are presented with diagnostic flow charts.
Precise Logic-Path
Wiring diagrams are provided for charging system circuits, starting system components, and lighting system troubleshooting. Fuel system procedures are documented for carburetor synchronization, fuel level inspection, and idle mixture adjustment on non-US models. Adjustment procedures are detailed for throttle cable play, brake pedal height, and steering head bearing preload. The documentation includes fork air pressure specifications, rear shock absorber adjustment ranges, and tire pressure requirements by model variant. Contact breaker point gap measurement techniques and ignition timing inspection methods are referenced for both static and dynamic testing procedures.
Comprehensive Topology
Technical notes are provided for crankcase assembly sequences, bearing insert sizing, and connecting rod clearance verification. The manual documents valve seat grinding angles, spark plug heat range selection, and piston ring gap specifications. Oil pump clearance measurements, camshaft journal tolerance data, and transmission gear backlash limits are included. Brake system component specifications, wheel bearing lubrication intervals, and suspension component wear limits are thoroughly referenced. The documentation covers both early and late model variations, including 1982 and later service information supplements.
The manual documents torque specifications for the engine mounting bolts, cylinder head fasteners, and crankcase assembly. Carburetor specifications include main jet numbers, idle mixture adjustment turns, and float bowl fuel level measurements. Electrical system specifications encompass alternator output voltage, battery charging procedures, and spark plug gap requirements for various model years. Brake fluid change intervals, wheel alignment procedures, and chain wear measurement techniques are included to ensure proper maintenance scheduling.
