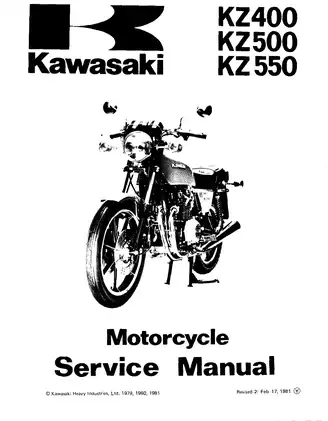

Kawasaki KZ400/500/550 Service & Repair Manual 1979–1985 (P/N 99924-1018-03)

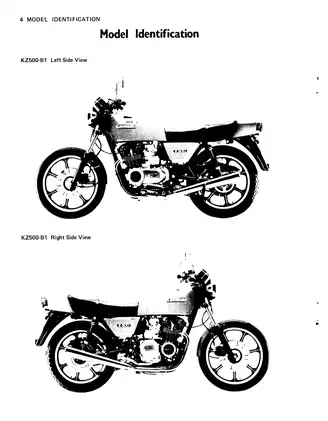

Kawasaki’s KZ400/KZ500/KZ550 Motorcycle Service Manual (P/N 99924-1018-03) is based on the first-production KZ500-B1 and includes the 1980 and 1981 model supplements. This is Revised 2, dated February 17, 1981.

Printable PDF and Wiring Diagram Detail

Search, navigation and small labels: PDF text search is not available, and there are no embedded bookmarks. The color wiring diagrams require zooming; some fine component labels and connection tables remain soft or difficult to read when enlarged.

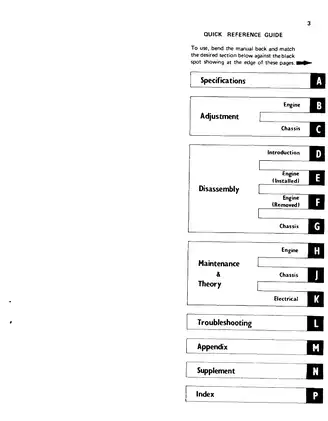

The ZIP download contains one printable English PDF with 342 pages. That total includes the cover and front matter, the supplement introduction, the 59-page 1980 supplement, the 34-page 1981 supplement, and the index.

Engine, Chassis and Ignition Work

The selected service topics below give an overview of the contents. Other included procedures cover headlight aiming and wheel balancing.

• Engine and drivetrain repair: Step-by-step procedures for engine removal, top-end disassembly, crankcase splitting, clutch and transmission work, plus crankshaft and connecting-rod inspection.

• Carburetion and ignition: Mechanical and vacuum synchronization, idle and fast-idle checks, fuel-level inspection, contact-breaker point and timing tests, and later transistorized-ignition diagnosis.

• Chassis and brakes: Wheel and bearing service, disc- and drum-brake repair, master-cylinder and caliper work, brake bleeding, steering-stem inspection, front forks, rear shocks, swing arm, and drive chain.

• Electrical fault finding: Charging and regulator/rectifier tests, starter and lockout checks, lighting, horn, meters, reserve lighting, low-fuel warning, and automatic turn-signal canceling, supported by color wiring diagrams.

• Factory reference data: Periodic maintenance charts, torque and locking-agent tables, fluid and lubrication data, inspection and wear limits, electrical test specifications, service data, symptom-based troubleshooting, and an illustrated special-tool catalog.

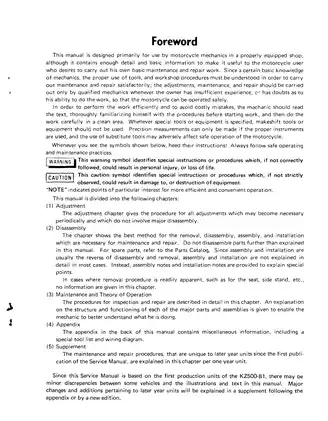

Kawasaki wrote this manual primarily for motorcycle mechanics in a properly equipped shop. Experienced owners can use it for basic maintenance and repair, provided they understand mechanics, measuring equipment, and normal workshop practice.

Model Supplements and System Differences

The 1980 section identifies KZ400-J1, KZ550-A1, and KZ550-C1. The 1981 section identifies KZ400-J2, KZ500-B3, KZ550-A2, KZ550-B2, KZ550-C2, and KZ550-D1.

Later-model work requires the base manual, the applicable annual section, and preceding supplements together; the annual sections are not stand-alone manuals. Their cross-references help match parts and procedures to the correct ignition, brake, and suspension configuration.

Ignition and suspension changes: The B1 chapters cover battery-and-coil contact-breaker ignition and electric starting. KZ550-C material covers transistorized ignition, pneumatic front forks, damping-adjustable rear shocks, tubeless tires, and suspension setup.

The 1981 updates carry these systems forward and address revised disc brakes, wheels, swing arm, and the ball-ramp clutch release. Starter work on the 1981 KZ400/500 refers back to the KZ550 starter material in the 1980 section.

KZ550-D1: Dedicated sections cover the oil cooler, fairing, headlight and turn-signal assembly, shift-pedal linkage, fuel-level sender, and fuel-gauge diagnosis.

Cylinder-Head, Lubrication and Carburetor Detail

Internal engine coverage includes camshaft-chain timing illustrations, valve-clearance adjustment with shim-selection charts, cylinder-head and valve-seat work, cylinder and piston inspection, and crankshaft bearing selection. Transmission sections extend to the external shift mechanism, shift drum, gears, and shafts.

The lubrication chapter connects oil-pump and relief-valve inspection with oil-pressure testing and warning-switch diagnosis. Incorrect camshaft timing is a specific repair hazard: the manual warns that turning the crankshaft with the cams mistimed can cause valve contact with other valves or pistons and bend the valves.

Carburetor explanations distinguish the starter, pilot, main, and float systems. US-model Kawasaki Clean Air System coverage includes air-suction reed inspection and vacuum-switch-valve testing.

Brake, Suspension and Electrical Limits

The front master-cylinder instructions warn that removing the primary and secondary cups from the piston damages the cups. Rear-shock coverage in the base manual concerns external checks, adjustment, and replacement of sealed units rather than internal overhaul.

The transistorized-ignition section includes an Ignition System Troubleshooting Guide, pickup-coil checks, and IC igniter tests. KZ550-C2 material adds low-fuel warning and automatic turn-signal-canceling checks. Wiring diagrams distinguish US/Canadian configurations from other-market versions where applicable.

Flow Charts and Workshop Equipment

Visual references include the Engine Oil Flow Chart, separate engine-installed and engine-removed disassembly flow charts, and the chassis disassembly flow chart. These show component relationships and the disassembly required to reach a particular assembly.

The special-tool catalog identifies the clutch holder P/N 57001-305, rotor holder P/N 57001-308, vacuum gauge set P/N 57001-127, and fuel-level gauge P/N 57001-1017, helping establish the equipment the procedures expect.

This is not a parts catalog. Some obvious removals are omitted, and assembly and installation are often covered through notes on special points rather than a fully repeated reverse sequence.

Before engine, chassis, brake, or electrical service, support the motorcycle securely on a suitable stand or lift and disconnect the battery where the procedure requires electrical isolation.

A Preview of Valve-Clearance and Oil-Pressure Data

For the KZ500-B1, the valve-clearance section specifies cold-engine measurements of 0.10–0.20 mm at the intake valves and 0.15–0.25 mm at the exhaust valves, with separate shim-selection charts.

The base-manual lubrication test specifies oil pressure of 2.0–2.5 kg/cm² at 4,000 rpm and 90°C (194°F). The accompanying checks distinguish lubrication-system faults from oil-pressure warning-switch problems.
