Kawasaki Z250/KZ305 Service & Repair Manual 1979–1982 (P/N 99924-1019-04)
312 Pages • ZIP Download: Printable PDF (English)
Kawasaki Models Covered & Key Technical Specifications
Models: Z250, KZ305
Models & Model Codes:
Z250 — Z250-A1, Z250-A2, Z250-A3, Z250-A4, Z250-B1, Z250-B2, Z250-B3
KZ305 — KZ305-A1, KZ305-A2, KZ305-B1, KZ305-C1, KZ305-D1
Model Years: 1979–1982 (1979, 1980, 1981, 1982)
Beginning Frame Numbers:
-
Z250-A1: KZ250A-000001
-
Z250-A2: KZ250A-012001
-
Z250-A3: KZ250A-029301
-
Z250-A4: KZ250A-038801
-
Z250-B1: KZ250B-000001
-
Z250-B2: KZ250B-001301
-
Z250-B3: KZ250B-002201
-
KZ305-A1: JKAKZLA1(2)BA000001
-
KZ305-A2: JKAKZLA1(3)CA009601
-
KZ305-B1: JKAKZLB1(2)CA000001
-
KZ305-C1: JKAKZLC1(6)BA000001
-
KZ305-D1: JKAKZLD1(6)CA000001
Digits shown in parentheses vary from one machine to another.
-
Engine: SOHC, 2-cylinder, 4-stroke, air-cooled
-
Displacement: 248 cc (Z250); 306 cc (KZ305)
-
Maximum Power: 27 HP at 10,000 rpm (Z250, except West German Z250-A3/A4); 26.7 HP (West German Z250-A3/A4); 30 HP at 9,000 rpm (KZ305)
-
Maximum Torque: 2.1 kg-m (15 ft-lbs) at 8,500 rpm (Z250-A1/A2); 2.1 kg-m at 8,000 rpm (Z250-A3/A4 and Z250-B1/B2/B3, except West German Z250-A3/A4); 2.02 kg-m at 8,000 rpm (West German Z250-A3/A4); 2.5 kg-m at 7,000 rpm (KZ305)
-
Transmission: 6-speed, constant mesh, return shift
-
Clutch: Wet, multi-disc
-
Carburetor: Keihin CV32 x 2
-
Overall Drive Ratio: 7.79 (Z250-A1/A2/A3 and Z250-B1/B2); 7.785 (Z250-A4/B3); 7.34 (KZ305-A1/A2/C1); 7.253 (KZ305-B1/D1); all in top gear
-
Suspension: Telescopic front fork, swing arm rear
-
Brakes: Front and rear disc brakes (Z250-A1/A2/A3/A4); front and rear drum brakes (Z250-B1/B2/B3); front disc and rear drum brake (KZ305)
Kawasaki Manual Features & Selected Content Preview
This PDF reproduces Kawasaki’s Z250/KZ305 Motorcycle Service Manual, P/N 99924-1019-04, Fourth Edition, dated September 30, 1981. It covers the 1979 base model and the model-specific revisions through 1982.
PDF Format, Search, and Diagram Readability
Search and navigation: PDF text search and embedded bookmarks are not available. Small wiring-diagram labels require zooming; the printed section guides and index provide navigation.

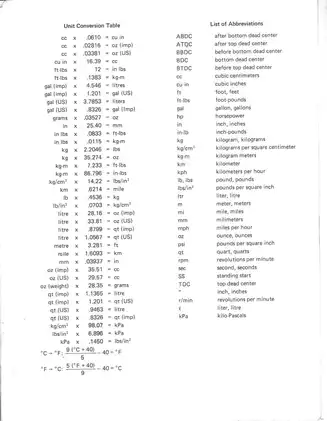

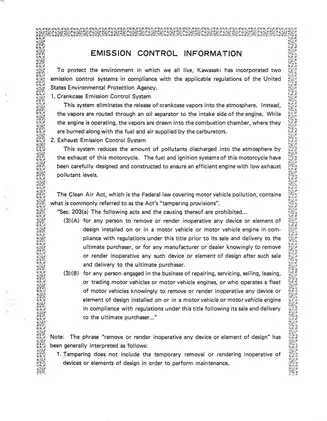

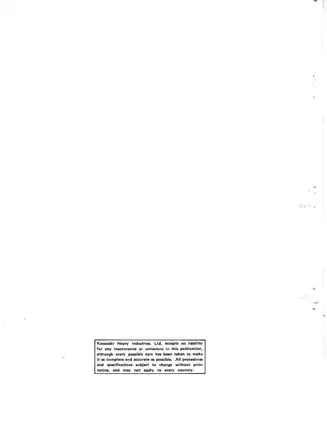

The ZIP download contains one printable, English-language PDF with 312 pages, including two opening conversion/reference pages, two title/copyright pages, two emission-information pages, three blank divider pages, and the back cover. All eleven factory supplements are included in that total.
Engine Overhaul, Drivetrain Service, and Electrical Diagnosis
The following selected coverage highlights summarize the workshop content. Other topics include battery-condition testing and lighting-switch continuity checks.
-
Engine repair: Engine removal, crankcase splitting, cylinder-head disassembly, camshaft chain timing, valve-clearance checks, and piston inspection.
-
Carburetor service: Keihin CV32 removal and disassembly, diaphragm and choke checks, fuel-level adjustment, and carburetor synchronization.
-
Transmission and clutch: Shaft and gear disassembly, shift-mechanism inspection, friction-plate and spring checks, and clutch-release service.
-
Final drive: Chain adjustment and sprocket inspection, plus belt replacement, alignment, tension testing, and pulley inspection for the belt-drive models.
-
Brakes: Caliper and master-cylinder rebuilding, hydraulic bleeding, drum-brake inspection, and Z250-B front brake shoe synchronization.
-
Chassis: Fork disassembly and oil-seal replacement, steering-bearing service, wheel balancing, and rim and spoke maintenance.
-
Electrical diagnosis: Alternator and regulator/rectifier tests, ignition-coil and contact-breaker inspection, starter-relay checks, and wiring diagrams.
The manual was written primarily for motorcycle mechanics in a properly equipped shop; its basic maintenance and repair information also supports owners who understand mechanical work, tools, and workshop procedures.
Model Coverage and Factory Supplements
| Model year | Covered models |
|---|---|
| 1979 | Z250-A1 |
| 1980 | Z250-A2; Z250-B1 |
| 1981 | Z250-A3; Z250-B2; KZ305-A1 (U.S.); KZ305-C1 (Canada) |
| 1982 | Z250-A4; Z250-B3; KZ305-A2 (U.S.); KZ305-B1 (U.S.); KZ305-D1 (Canada) |
Model identification pages and the starting-frame-number chart help identify the correct version. Later models require the relevant supplement, applicable earlier revisions, and the base chapters together. This cross-referencing connects each variant’s changed components and specifications with the underlying repair procedures.
Engine Repair and Fuel-System Diagnosis
Internal engine work: Disassembly flowcharts distinguish access with the engine installed from work requiring engine removal. Step-by-step procedures cover major jobs such as crankcase separation and cylinder-head disassembly. Inspection and repair sections extend to compression testing, cylinder boring and honing, valve-guide replacement, and valve-seat cutting and lapping.
Inspection data address camshaft journals, connecting-rod clearances, and crankshaft runout. The crankshaft section distinguishes replaceable end bearings from inner bearings that require replacement with the crankshaft assembly.
Fuel-system diagnosis: The carburetor chapters explain the starter, pilot, main, and float systems and compare rich- and lean-running symptoms. The 1982 U.S. KZ305 sections add high-altitude carburetor adjustments.
Model-Specific Changes and Assembly Cautions
The 1980 supplements cover bolt-type rocker shafts. Later revisions document carburetor calibration changes and the automatic camshaft chain tensioner introduced in the 1981 Z250-A3/B2 sections.
The automatic-tensioner section warns that retightening a partly loosened unit can damage the tensioner and chain. Cylinder-head-cover assembly notes also identify a risk of tachometer gear damage when the pinion remains in the cover during installation.
The 1982 sections cover the revised right-side clutch release. The Z250-A4 adds an air-adjustable front fork, while the KZ305-B1 and D1 sections address the belt-drive components.
Specifications, Tools, and Wiring Reference
Factory tables provide tightening torques, locking-agent requirements, fluid capacities, service limits, adjustment data, and electrical test values. Tool references include vacuum gauge 57001-1152, belt tension gauge 57001-1155, and fork air-pressure gauge 52005-1003.
The Camshaft Chain Timing drawing, Engine Oil Flow Chart, and exploded Shift Drum, Drive Shaft, Output Shaft view support internal engine work. Ignition Circuit and Starter Motor Circuit schematics accompany wiring diagrams for European and general-export Z250 models and U.S./Canadian KZ305 models.
The 1982 European Z250 wiring diagram excludes West German models. A symptom-based troubleshooting guide addresses starting, running, clutch, and shifting faults; electrical diagnosis appears in the individual component sections.
Always cross-reference the factory specifications for your model and follow the manual’s precautions for brake-lining dust, fuel handling, and electrical isolation.
Examples of Fork-Pressure and Belt-Tension Data
For the Z250-A4, the fork-pressure table gives a usable range of 59–78 kPa. The inspection conditions specify cold fork legs with all weight removed from the front wheel.
For the KZ305-B1, the belt-tension section specifies 7.5–16.5 mm deflection under a 44 N load midway between the pulleys, with the motorcycle on its center stand, the engine cold, and the belt dry. The KZ305-D1 supplement refers to the same procedure.
