Honda NS400R Shop Manual, 1985–1988

Honda NS400R factory shop manual, 1985 edition, covering maintenance, diagnosis, and repair of the liquid-cooled V3 two-stroke engine and associated chassis systems. Separate cylinder and piston specifications identify the SA type.

PDF Search, Diagram Detail, and Page Count

Search and wiring detail: PDF text search and embedded bookmarks are not available. Small labels in the main wiring diagram require enlargement; some fine wire-color codes remain blurred.

ZIP download containing one printable PDF with 261 pages, including the original front cover. Service instructions are in English; the cover and wiring diagram include multilingual labels.

V3 Engine, ATAC, and Chassis Service

The following selected coverage highlights outline the repair and diagnostic content. Other topics include fairing and exhaust-chamber removal, along with lighting and handlebar-switch checks.

• Engine repair: Step-by-step procedures cover engine removal, cylinder-head and piston service, crankcase separation, crankshaft inspection, and transmission disassembly and reassembly.

• Fuel and lubrication: Carburetor overhaul, float-level adjustment, synchronization, reed-valve inspection, oil pump synchronization, and oil-line bleeding.

• ATAC system: Linkage adjustment, valve and sub-chamber service, solenoid testing, control-unit diagnosis, and performance troubleshooting.

• Suspension and steering: Front-fork and anti-dive service, rear suspension linkage inspection, shock-spring removal, and steering-bearing adjustment.

• Brakes and wheels: Hydraulic brake repair, master-cylinder and caliper inspection, bleeding, wheel-bearing replacement, balance, and runout checks.

• Electrical diagnosis: NS400R wiring diagram, charging and ignition circuit diagrams, connector test tables, and symptom-based troubleshooting charts.

This Honda shop manual is suited to mechanics familiar with two-stroke engine repair and equipped for precision measurement; its maintenance schedule also identifies work Honda recommends reserving for authorized dealers.

Carburetors and Oil Injection

Coverage of the Keihin TA09 carburetors, identified as TA09A, details jet-needle installation, air-screw adjustment, and power-jet configurations. It distinguishes the rear No. 2 carburetor’s power jet from those used in the front cylinders and identifies No. 3 as the reference carburetor for synchronization.

Vacuum-operated fuel-valve testing and diaphragm inspection help address fuel-delivery faults that can resemble carburetor problems. Tool references include vacuum gauge 07404-0020000.

The lubrication chapter separates pump inspection and replacement from internal overhaul: the oil pump is not to be disassembled. Honda warns that trapped air in the oil system can restrict delivery and cause severe engine damage. Fuel-system work requires the manual’s precautions for gasoline vapors and ignition sources.

Internal Engine and Transmission Repair

The engine sections provide component-specific torque tables, compression-test criteria, fluid specifications, wear limits, and clearance data. Cylinder and piston selection uses matching identification codes and a replacement compatibility chart.

Ring identification and orientation, piston-pin inspection, and connecting-rod small-end checks are covered. Decarbonizing precautions identify the cylinder-wall plating as vulnerable to damage during exhaust-port cleaning.

Clutch coverage includes friction plates, the judder spring, lifter mechanism, and primary drive gears, alongside kick-starter and idler-shaft service. Transmission inspection addresses gear dogs, bushings, shaft wear, shift forks, and shift-drum grooves.

Crankshaft runout and connecting-rod bearing checks lead to assembly-replacement criteria rather than a pressed-crankshaft rebuilding procedure. The countershaft’s left bearing also requires countershaft assembly replacement.

For repair planning, the manual distinguishes components serviceable with the engine installed from jobs requiring engine removal or crankcase separation. Assembly-specific tool lists identify the required holders, pullers, and bearing tools.

ATAC and Electrical Fault Tracing

ATAC coverage applies to the two front cylinders. The technical-features section explains chamber switching and includes a Control Unit Circuit Diagram. The dedicated ATAC troubleshooting chart traces high-speed performance faults through the electrical controls and valve mechanism.

Ignition diagnosis distinguishes the CDI unit and pulse generator serving cylinders No. 1 and No. 3 from those serving No. 2. Performance testing specifies CDI tester adapter 07508-0012900 for the front-cylinder unit and 07508-0012800 for the rear-cylinder unit. Ignition timing is factory-set; the procedures cover inspection and fault isolation.

Charging tests address alternator output and regulator/rectifier operation. Separate checks cover the oil-level warning system, temperature gauge, cooling-fan switch, and tachometer. Cable and harness routing illustrations support reassembly, while the Engine Sectional View explains the internal layout.

Cooling, Suspension, and Brake Service

Cooling-system documentation covers radiator-cap and system pressure testing, thermostat operation, coolant replacement and bleeding, and water-pump inspection. A leaking pump mechanical seal calls for water-pump assembly replacement.

The chassis chapters distinguish left- and right-fork construction and detail the anti-dive unit’s piston, orifice, and check valve. Rear suspension coverage includes hydraulic preload-adjuster inspection, mounting-bushing replacement, and swingarm bearings.

Drive-chain maintenance includes tensioning and wear checks. Replacement of the original endless chain requires swingarm removal.

Brake chapters extend to front and rear master-cylinder and caliper disassembly, piston and bore inspection, and disc checks. Damaged COMSTAR wheel structures require complete wheel replacement; tubeless-tire removal, repair, and remounting are covered by a separate Tubeless Tire Manual.

A Preview of Carburetor and ATAC Specifications

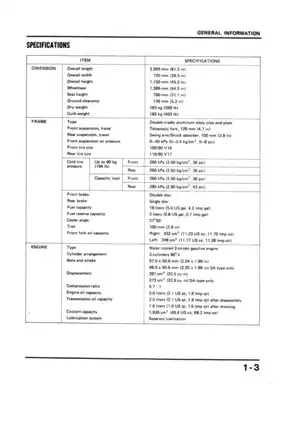

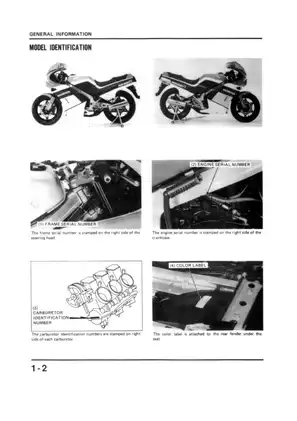

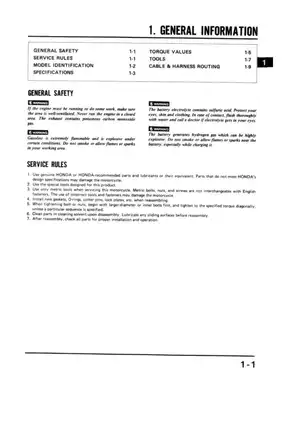

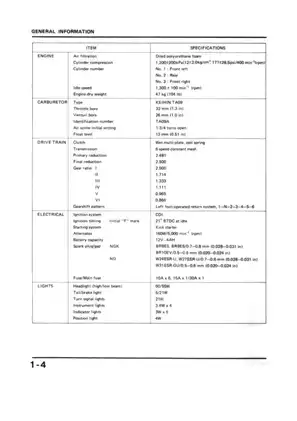

The TA09A carburetor specifications include a float level of 13.0 mm (0.51 in) and an initial air-screw opening of 1-3/4 turns out. These accompany the carburetor assembly and adjustment procedures.

For the front-cylinder ATAC system, the operating-speed specification is 7,500 ± 250 rpm. Valve-operation checks and the electrical troubleshooting material connect this specification to diagnosis of the chamber-switching system.
