Honda TRX420 FourTrax Rancher TRX420TM/TE/FM/FE/FPM/FPE ATV Service Manual, 2007–2012

This Honda service manual covers maintenance, diagnosis and repair for the 2007–2012 TRX420 FourTrax Rancher series: TRX420TM, TRX420TE, TRX420FM, TRX420FE, TRX420FPM and TRX420FPE.

Text Search, Bookmarks and Wiring Detail

Finding information: Text search is available across the service chapters, although OCR errors can prevent exact matches. The cover and separate safety page have no searchable text. Embedded bookmarks provide chapter and wiring-diagram navigation; the “Keyword Search” entry has no usable page destination. Small wiring labels require zooming.

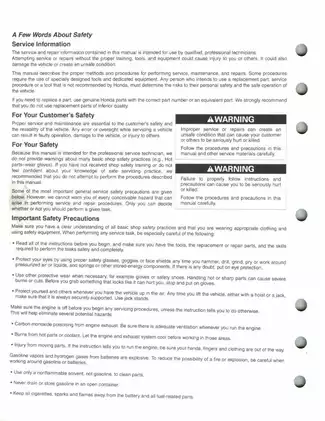

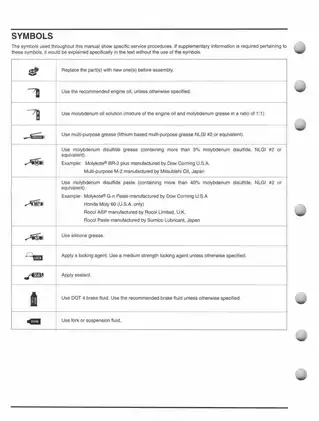

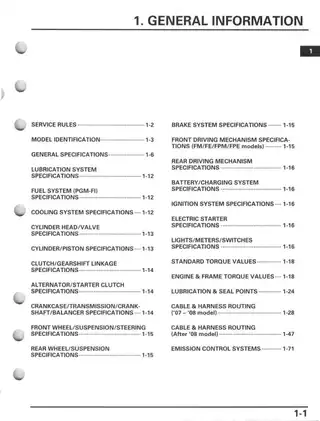

The download contains one printable, English-language 594-page PDF, including four opening pages covering the title, safety information, manual use and symbols, plus five memo pages. These pages are already included in the total.

Engine Overhaul, Final Drives and Electronic Diagnosis

The selected coverage below highlights major workshop tasks. Other documented topics include reverse-lock adjustment and spark-arrester cleaning.

• Engine and clutch repair: Step-by-step engine removal and installation, cylinder-head and piston service, centrifugal and change-clutch inspection, crankcase separation, and transmission disassembly.

• PGM-FI diagnosis: DTC troubleshooting charts, fuel-pressure and delivery tests, injector and sensor checks, throttle-body service, and TP sensor reset procedures.

• ESP and EPS service: Shift-control motor and reduction-gear inspection, steering-system fault diagnosis, code readout and clearing, and torque-sensor initialization for equipped models.

• Final-drive overhaul: Front differential and rear final-drive disassembly, bearing replacement, backlash inspection, gear-tooth contact checks, and shim selection.

• Cooling and lubrication: Water-pump mechanical-seal replacement, thermostat testing, radiator pressure checks, oil-pump inspection, and relief-valve service.

• Brakes and chassis: Front hydraulic brake bleeding, master-cylinder and caliper service, rear drum-brake repair, steering-knuckle work, and suspension inspection.

• Electrical fault tracing: Variant-specific wiring diagrams, cable and harness routing drawings, charging and ignition tests, and starter-motor inspection and overhaul.

The manual is written for qualified professional technicians and assumes proper service training, tools and workshop equipment.

Maintenance and Internal Engine Repair

Periodic maintenance schedules accompany valve-clearance checks, air-cleaner care and fluid service. Component-specific torque tables, inspection procedures and wear limits support both scheduled maintenance and internal repair decisions.

Cylinder-head, valve, camshaft, cylinder and piston service can be performed with the engine installed. Transmission, crankshaft, balancer and alternator/starter-clutch work require engine removal. The Lubrication System Diagram identifies the oil passages associated with pump and relief-valve service.

The valve-clearance section explains how the one-way decompressor can distort readings if crankshaft rotation is handled incorrectly. Valve-train specifications and valve-timing data distinguish the earlier and later configurations.

PGM-FI, ESP and EPS Troubleshooting

On ESP-equipped models, the PCM manages both engine operation and electric shifting. The PGM-FI System Diagram and shared-fault guidance help distinguish an engine-management fault from a mechanical shifting problem before disassembly.

PGM-FI diagnosis includes MIL blink-code interpretation and HDS Pocket Tester information. MIL readout identifies main codes; HDS readout provides the associated subcodes. ESP uses the gear-position indicator, while EPS has its own indicator and diagnostic charts.

The documented diagnostic tools include SCS connector 070PZ-ZY30100. EPS torque-sensor initialization is described with and without HDS, with requirements tied to work on the handlebar, steering shaft, EPS unit and ECU.

Throttle-body service follows defined operations; its factory-preset fasteners are not routine adjustment points.

Final Drives, Steering and Brakes

Front differential and rear final-drive chapters pair bearing and gear inspection with illustrated tooth-contact patterns and shim-selection guidance. Drive-side and coast-side views distinguish high and low contact patterns.

Front drive-shaft coverage includes inboard-joint and boot service. The outboard joint cannot be disassembled; a worn or damaged outboard joint requires drive-shaft replacement.

Mechanical steering and EPS-unit service are covered separately from EPS electrical diagnosis. Brake procedures distinguish the front hydraulic discs from the rear mechanical drum. Complex diagnostic work should be verified by a qualified technician before the ATV returns to service; observe the manual’s precautions for pressurized fuel and electrical circuits.

Cooling-System Service

The Cooling System Flow Pattern accompanies leak diagnosis, coolant replacement and air bleeding. Water-pump coverage extends to mechanical-seal replacement, including the specified replacement of the impeller and pump shaft.

Coolant containing silicate corrosion inhibitors can prematurely wear water-pump seals or block radiator passages.

A Preview of Fuel, Ignition and Fluid Specifications

Fuel-pressure testing specifies 336–350 kPa (49–51 psi) at idle. The ignition section lists a spark plug gap of 1.0–1.1 mm.

Engine-oil capacity after draining is 2.7 liters, with SAE 10W-30 listed as the recommended viscosity and a chart for other permitted viscosities.

Cooling capacity is specified separately for the radiator and engine at 1.5 liters, plus 0.3 liter for the reserve tank.
