2009–2012 Honda TRX420FA/FGA/FPA FourTrax Rancher AT ATV Service & Repair Manual

This Honda service manual covers the 2009–2012 TRX420FA, TRX420FPA, and TRX420FGA FourTrax Rancher AT, including the U.S. and Canadian configurations identified in the manual. It provides maintenance, troubleshooting, and repair procedures for the engine, drivetrain, chassis, and electrical systems.

Searchable Text, Chapter Bookmarks and Wiring Detail

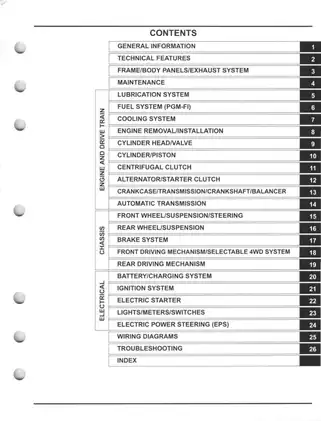

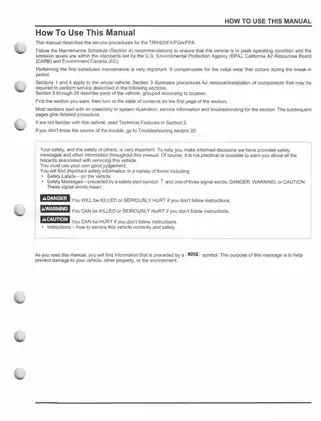

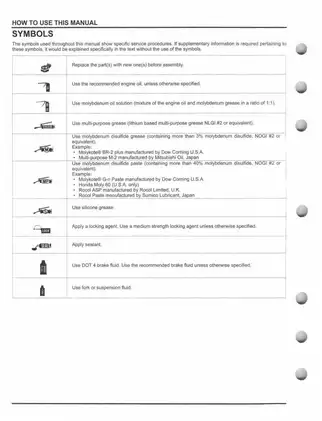

Finding procedures and circuit details: An embedded OCR text layer supports searching, although recognition errors can affect exact-word searches. PDF bookmarks lead to the service chapters, index, and model-specific wiring diagrams. Small connector labels and wire-color codes in the overall wiring diagrams require zooming for clear reading.

One printable, English-language PDF contains 620 pages, including one cover page and 15 memo pages already included in that total.

Engine Rebuilds, Automatic Transmission and EPS Service

The following selected service topics illustrate the manual’s scope rather than reproduce its complete contents. Further subjects include spark-arrester maintenance and reverse-lock system adjustment.

• Engine repair: Engine removal and installation, cylinder-head and valve work, piston inspection, camshaft service, crankcase separation, and crankshaft and balancer inspection.

• Automatic transmission: Centrifugal-clutch service, hydraulic pressure testing, shift-valve-body repair, shift-clutch disassembly, and clutch-clearance inspection.

• PGM-FI diagnosis: Fault-code troubleshooting, fuel-pressure and flow tests, injector checks, idle-air-control-valve service, and throttle-position-sensor reset procedures.

• Cooling system: Radiator pressure testing, coolant replacement and air bleeding, thermostat inspection, cooling-fan removal, and water-pump mechanical-seal replacement.

• Front and rear driveline: Drive-shaft service, selectable 4WD checks, front final-clutch overhaul, differential inspection, and final-drive gear adjustment.

• Brakes, suspension and steering: Hydraulic brake bleeding, master-cylinder and caliper repair, suspension-arm service, steering-shaft work, and FPA torque-sensor initialization.

• Electrical troubleshooting: Charging and ignition tests, starter-motor overhaul, connector inspection, and separate overall wiring diagrams for FA/FGA and FPA configurations.

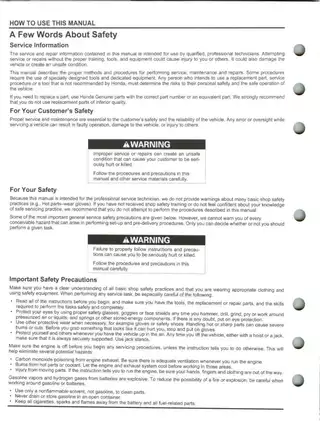

The manual is written for qualified professional technicians and assumes appropriate training, tools, and workshop equipment.

Internal Engine and Chassis Repair

Step-by-step repair procedures extend beyond component removal to valve-guide replacement, valve-seat refacing, piston-ring installation, and internal transmission inspection. Exploded assembly views accompany the component work, while lubrication-system diagrams and cooling-system flow patterns show the related fluid paths.

Front and rear final-drive sections explain backlash inspection, gear-tooth contact patterns, bearing replacement, and shim selection. They distinguish actual fastener torque from the indicated torque-wrench reading when the specified extension tool changes leverage.

The brake section covers both hydraulic service and the rear parking-brake mechanism. Suspension and steering procedures include wheel-bearing and ball-joint replacement, with toe adjustment linked to work on the tie-rods, knuckles, or steering shaft.

Always prioritize workspace safety by strictly adhering to the manufacturer's recommended lifting procedures and utilizing proper protective gear when handling pressurized or electrical systems.

Tracing PGM-FI and Transmission Faults

The factory testing workflows help isolate PGM-FI faults and drivetrain issues before parts are replaced. Because these systems share the PCM, the manual directs diagnosis through both fuel-system and drivetrain fault indications.

The transmission’s hydraulic-circuit troubleshooting chart links line-pressure and clutch-pressure results to possible faults in the valve body, shift clutches, and oil-supply components. Cable and harness routing drawings support electrical checks and reassembly.

The valve-body service instructions warn that impact can damage the solenoid valves. This is particularly relevant when handling the assembly during removal or internal inspection.

FPA Steering Electronics and Initialization

The EPS section combines fault-code diagnosis with system diagrams, connector views, and symptom-based checks. Torque-sensor initialization is documented both with the HDS Pocket Tester and without it; the latter procedure identifies SCS connector 070PZ-ZY30100.

Initialization is required after the specified EPS and steering-component work, and the procedure requires a fully charged battery. The EPS service precautions also explain that disconnecting energized connectors can damage the control unit through excessive voltage.

Examples of Oil, Cylinder-Head and PGM-FI Specifications

The engine-oil table distinguishes draining alone, draining with filter replacement, and disassembly; it specifies 3.6 liters for a drain and filter change. Cylinder-head nut specifications list 39 N·m with oiled threads and seating surfaces, alongside the required tightening sequence.

For PGM-FI diagnosis, injector resistance is 11.6–12.4 Ω at 20°C (68°F). The warm-engine idle inspection specifies 1,400 ± 100 rpm with coolant at 80°C (176°F), and explains that the system does not use manual idle-speed adjustment.
