2007–2013 Honda TRX420 Rancher Factory Service Manual (P/N 31600-HN7-003)

Service manual for the 2007–2013 Honda TRX420 Rancher, covering TM, TE, FM, FE, FPM, and FPE models. Procedures distinguish foot-shift and ESP versions, with EPS service for FPM/FPE.

Text Search, Bookmarks and Wiring Detail

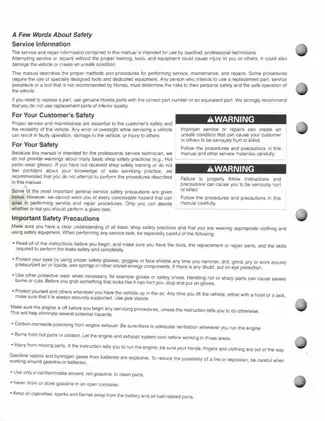

Search and diagram navigation: An OCR text layer supports searches through the service chapters, and embedded bookmarks link to chapters and many procedures. The cover and safety page are not searchable, and OCR does not reliably capture every wiring label. Small wiring-diagram labels require zooming.

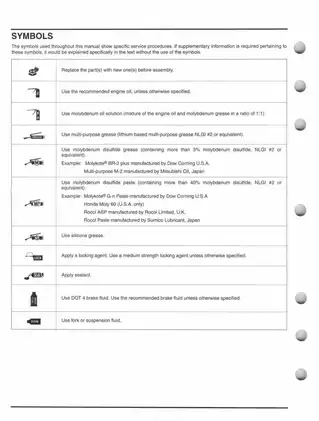

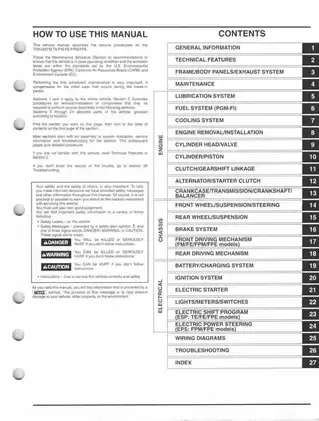

One English-language, 594-page printable PDF, including four introductory pages and five memo pages.

Engine, Drivetrain and Electronic System Service

The following selected workshop topics give a sample of the contents. Other examples include maintenance schedules, exhaust-system removal, and fuel-level-gauge inspection.

• Engine repair: Step-by-step engine removal and installation, cylinder-head work, valve-guide replacement, valve-seat refacing, piston inspection, and camshaft and cam-chain timing procedures.

• Clutch and transmission: Centrifugal and change-clutch repair, gearshift-linkage service, crankcase separation, and transmission, crankshaft, and balancer inspection and assembly.

• PGM-FI diagnosis: DTC troubleshooting charts, sensor and circuit checks, fuel-pressure and flow tests, injector and IACV replacement, and TP sensor reset procedures.

• Cooling and lubrication: Thermostat and cooling-system pressure tests, radiator and water-pump seal service, coolant replacement and air bleeding, and oil-pump inspection.

• Final-drive service: Front drive-shaft and selectable-4WD clutch work, differential and rear final-gear disassembly, bearing replacement, backlash adjustment, and gear-contact inspection.

• Brakes and chassis: Front caliper and master-cylinder repair, hydraulic bleeding, rear drum and shoe service, wheel-bearing replacement, suspension inspection, and steering-shaft service.

• Electrical systems: Charging, ignition, and starter-circuit troubleshooting, starter-motor repair, ESP shift-control tests, EPS fault diagnosis, and torque-sensor initialization.

Written for qualified professional technicians with the training, tools, and equipment needed for the documented service and repair work.

PGM-FI, ESP and EPS Diagnostics

Factory specifications and troubleshooting charts support fault diagnosis across the engine and electrical systems. On ESP models, the PCM controls both PGM-FI and shifting; the manual explains how shared sensor faults can affect both systems, helping distinguish engine-management problems from shift-control faults.

Code readout: PGM-FI uses MIL blink patterns, ESP uses the gear-position indicator, and EPS uses its own indicator. Readout and clearing procedures cover operation with and without the HDS Pocket Tester. Indicator blinks identify main codes; the HDS provides subcodes and, for PGM-FI and ESP, stored and current operating data.

Service resets: EPS initialization requirements depend on which steering components are serviced and whether the EPS ECU is replaced or removed. The TP sensor reset procedure also identifies prerequisites, including the absence of stored PCM/ECM fault codes. The diagnostic sections specify the SCS connector, 070PZ-ZY30100.

Mechanical Repair Depth and Final-Drive Setup

Engine access: Cylinder-head and cylinder/piston service can be performed with the engine in the frame. Internal transmission and crankshaft/balancer work requires engine removal and crankcase separation; mechanical alternator, flywheel, and starter-clutch service also requires engine removal.

Gear setup: Differential instructions cover shim selection, slip-torque testing, and tooth-contact patterns. The final-drive assembly notes describe pinion-rotation checks during case-cover installation and warn that an overly thick ring-gear shim can lock the gears.

The inboard front drive-shaft joint has disassembly procedures; a worn or damaged outboard joint calls for drive-shaft replacement.

Routing Diagrams and Cooling-System Cautions

Detailed cable and harness routing separates the 2007–2008 layouts from post-2008 updates. Variant-specific wiring diagrams and connector views support circuit tracing, alongside switch-continuity charts. The PGM-FI system diagram, lubrication-system diagram, cooling-system flow pattern, and gear-tooth contact views provide references for the corresponding tests and assembly checks.

Coolant guidance warns that silicate corrosion inhibitors can cause premature water-pump seal wear or blocked radiator passages.

Working on heavy quad components involves physical risks, so always cross-reference specifications with the manual's safety and setup procedures.

Examples of Fluid Capacities, Valve Clearance and Fastener Torque

Engine oil capacity after draining is 2.7 liters. For FM/FE/FPM/FPE models, front final-gear case capacity after draining is 230 cm3; the tables distinguish these quantities from after-disassembly fills.

Intake valve clearance is 0.15 ± 0.02 mm with the engine cold, below 35°C (95°F). The cylinder-head nut specification is 39 N·m with oiled threads and seating surfaces; the spark-plug specification is 22 N·m.

The rear final-gear pinion-bearing lock-nut specification is 98 N·m actual torque, with a separate tool-adjusted wrench reading in the assembly instructions.
