2000–2003 Honda CR125R Service & Repair Manual (P/N 61KZ463)

This Honda service manual covers the 2000–2003 CR125R motocross models, with factory service procedures for the engine, cooling, frame and electrical systems. The English manual is identified as P/N 61KZ463.

Text Search, Chapter Bookmarks and Wiring Detail

Search and diagram access: OCR text search is available throughout the main chapters, although recognition errors can affect results. The cover and opening safety notice have no searchable text. Embedded bookmarks reach the contents and individual chapters; small wiring labels are best read with zoom.

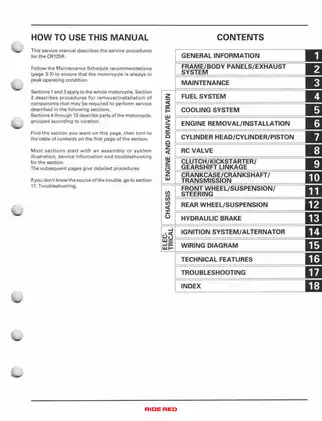

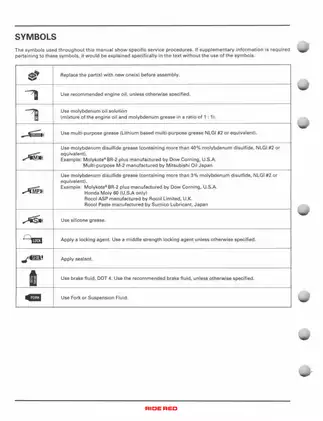

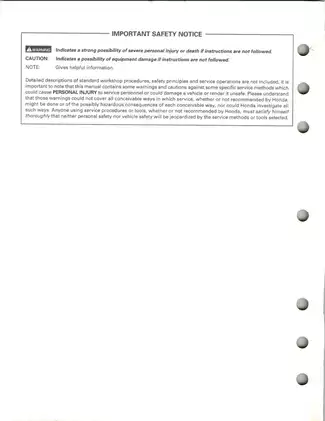

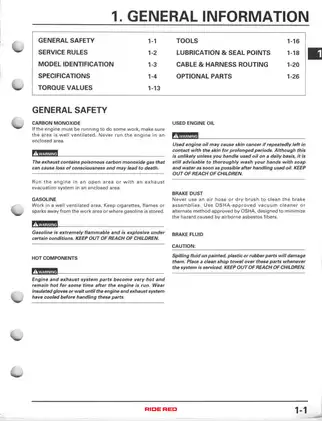

Supplied as one printable, English-language, 293-page PDF, including four opening pages—cover, safety notice, contents and symbols—and nine memo pages.

Engine Rebuilds, Race Maintenance and Chassis Service

These selected repair topics show the manual's scope rather than its complete contents. Other covered work includes silencer packing replacement, control-cable servicing, and sub-frame, fuel-tank and exhaust removal.

• Engine and transmission: Engine removal and installation, top-end rebuilding, crankcase separation, crankshaft inspection and transmission assembly, plus clutch, kickstarter and gearshift-linkage repair.

• RC valve: Flap-valve decarbonizing, drive-shaft service, governor inspection and valve-linkage adjustment.

• Fuel system: TMX carburetor disassembly and assembly, temperature/altitude tuning charts and reed-valve inspection.

• Cooling system: Radiator-cap and system pressure tests, radiator removal, and water-pump bearing and seal replacement.

• Suspension and steering: Telescopic fork and rear shock overhaul, steering-stem bearings, swingarm pivots and Pro-Link linkage service.

• Wheels and brakes: Wheel-bearing replacement, spoke and rim checks, hydraulic brake bleeding, and master-cylinder and caliper repair.

• Ignition diagnosis: CDI ignition-system tests, ICM troubleshooting, alternator exciter-coil and pulse-generator checks, and separate wiring diagrams for the earlier and later configurations.

This manual is suited to mechanically experienced users with measuring equipment and model-specific tools; it assumes familiarity with standard shop procedures.

Engine Internals and RC Valve Service

Factory clearances and torque specifications provide the reference data needed to assess wear and reassemble the engine. Cylinder I.D. and piston-to-cylinder clearance limits accompany the A- and B-coded cylinder/piston selection data, rather than treating every replacement piston as interchangeable.

The step-by-step procedures cover internal transmission disassembly and reassembly, including gear, bushing, shift-fork and shift-drum inspection. Crankshaft and transmission service require engine removal; the cylinder head, cylinder, piston and clutch can be serviced with the engine installed.

The RC (Radical Combustion) valve section connects poor low- or high-speed performance with flap-valve movement, carbon buildup and governor faults. Governor removal and inspection are covered, but governor disassembly is expressly prohibited.

Cylinder-installation cautions explain how rotating the cylinder can snag the piston ring in a port and break it.

Carburetor Tuning and Cooling-System Tests

The fuel section distinguishes TMX01A, TMX01B and TMX02A carburetors, with configuration-specific jetting and float-level data. The Tuning Information Charts and needle flow-characteristic tables support setup for changing temperature and altitude; unusually large jetting corrections are also discussed as a reason to investigate other faults.

Cooling coverage extends to water-pump shaft, bearing, oil-seal and water-seal work. A coolant Specific Gravity Chart complements the radiator-cap and system leak-testing procedures.

Fork, Shock and Hydraulic Brake Repair

Fork procedures include damper and bladder inspection, seal replacement, oil filling and air bleeding. The service notes explain that overtightened fork pinch bolts can deform the outer tubes.

Rear shock instructions extend to reservoir-bladder replacement, damper-rod service, valve assembly, bleeding and nitrogen charging. Detailed rider-weight preload and riding-condition damping setup is referred to the Owner's Manual.

Brake coverage distinguishes the earlier and later rear master-cylinder and caliper arrangements. Inspection limits accompany the component rebuild procedures.

Ignition Fault Tracing and Diagrams

The no-spark troubleshooting chart separates low peak voltage, absent peak voltage and normal voltage without a spark. Peak-voltage and resistance tables accompany the tests, which identify the meter and peak-voltage adapter required, with connector and wire-color references.

Cable & Harness Routing drawings and Lubrication & Seal Points illustrations support component identification alongside the wiring diagrams.

A Sample of Fastener Torque and Fluid-Capacity Data

The cylinder-head section lists a cylinder-head nut torque of 27 N·m alongside the installation procedure. Standard torque tables and component-specific fastener data are also included.

The capacity tables specify 0.57 liter of transmission oil after draining and 0.88 liter of coolant at a change, while distinguishing these from disassembly capacities. These examples show the filling conditions attached to the manual's fluid data.

Motorcycle maintenance involves inherent safety risks. This product description outlines the manual's contents and does not contain actual diagnostic or repair steps. Always rely on the complete factory data and precautions, particularly for hydraulic brakes and the pressurized rear shock.
