1991-1998 Renault Clio Petrol Engine Service and Repair Manual

Diagnostic, removal sequences, and maintenance for Renault Clio models: engine control, fuel system, exhaust, brakes, suspension, body, and electrical systems. Part number: PNH0098.

4.5starstarstarstarstar_half(2)
★ BEST PRICE
visibility Preview Available
Renault 1991-1998 Renault Clio Petrol Engine Service and Repair Manual manual page preview - page 1 of 393

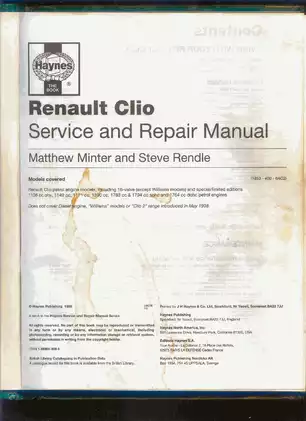

Sample pages from the 1991-1998 Renault Clio Petrol Engine Service and Repair Manual manual

Renault 1991-1998 Renault Clio Petrol Engine Service and Repair Manual manual preview page 1 - thumbnail

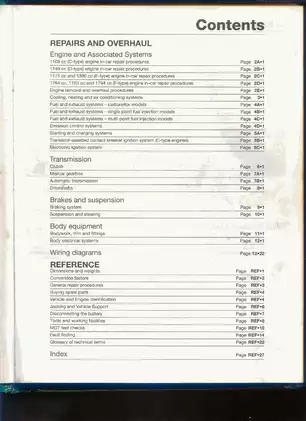

Renault 1991-1998 Renault Clio Petrol Engine Service and Repair Manual manual preview page 2 - thumbnail

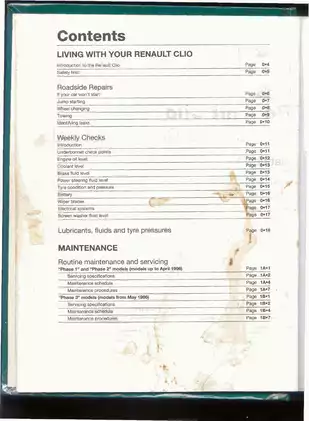

Renault 1991-1998 Renault Clio Petrol Engine Service and Repair Manual manual preview page 3 - thumbnail

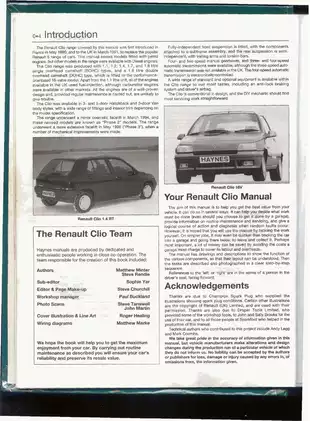

Renault 1991-1998 Renault Clio Petrol Engine Service and Repair Manual manual preview page 4 - thumbnail
info_outline Click thumbnails to preview different pages
$13.88 (incl. VAT) Original OEM Factory Manuals & Data Instant Download / No Shipping Fees
OR BUY NOW
verified_user
Lifetime Access
Re-download anytime
flash_on
Instant Download
Get it immediately
lock
Secure Payment
PayPal
Technical Safety Notice
keyboard_arrow_down

This official OEM document is intended for professional technicians and skilled operators. Performing service on mechanical equipment involves inherent risks. By purchasing, you acknowledge that RepairLoader provides original manufacturer data for informational purposes. Always prioritize safety: use correct tools, wear protective gear, and consult a certified professional if you are uncertain of any procedure.

Renault Models Covered & Key Technical Specifications

Models: Renault Clio 1.1, 1.2, 1.4, 1.7, 1.8, 1.8 16V
Sub-models / Variants: Hatchback, Van, Phase 1, Phase 2, Phase 3
Build Years: 1991–1998
Serial Numbers: 1853
Technical Data:

  • Engine displacement: 1108 cc, 1149 cc, 1171 cc, 1390 cc, 1764 cc, 1783 cc, 1794 cc
  • Fuel type: Petrol
  • Engine configuration: 4-cylinder in-line, SOHC and DOHC
  • Transmission: 4-speed/5-speed manual, 4-speed automatic
Technical Specifications
keyboard_arrow_down
Document Number / Seller:
26606 / Richard Edwards
File Size:
333.48 MB
File Type:
PDF
Language:
English
Pages:
393
Printable:
Yes
Category:
Car
Last updated / verified
Jul 13, 2025

Renault Manual Features & Content Preview

Official Renault Clio 1991–1998 Haynes Service and Repair Manual

  • Covers 1991–1998 Renault Clio petrol-engine models, including 1.1L, 1.2L, 1.4L, 1.7L, 1.8L, and 1.8L 16V variants
  • Official Haynes publication P/N 1853, 1999 edition covering H to R registration vehicles
  • Contains hundreds of technical diagrams, exploded-view schematics, and specialized torque specification tables for engine and chassis systems
  • File link appears in your order confirmation straight away
  • OCR text layer lets you jump to a torque spec by keyword
  • This 393-page factory-authorized reference documents maintenance for the E-type, D-type, C-type, and F-type engine series through three distinct design phases

Detailed System Documentation

The Renault Clio 1991–1998 service manual organizes technical content into logical repair sections, starting with routine maintenance tasks for both early (Phase 1/2) and later (Phase 3) models. Coverage includes engine removal, cooling and air conditioning systems, fuel injection and carburettor diagnostics, manual and automatic gearbox overhaul, and electrical fault-finding for body and chassis systems.

Specification Highlights

Engine cooling system capacity varies from 5.0 to 7.0 liters depending on the specific engine type. Final drive oil level plug settings are documented for manual transmission maintenance. Cylinder head bolt torque values are specified across multiple stages, with final torque settings reaching 55–65 Nm for C-type engines. Valve clearances for cold engines are documented at 0.10–0.15 mm for intake and 0.20–0.25 mm for exhaust. The what an OEM service publication covers includes detailed wiring diagrams and connector pinouts to assist in diagnostic verification.

Note: This document is a technical reference for qualified individuals and does not substitute for certified professional service work. An official 393-page Haynes OEM-style workshop manual covering the 1991–1998 Renault Clio, documenting engine, chassis, transmission, and electrical specifications for the Phase 1, 2, and 3 production range.

Manual FAQ, Purchase & Download Details

Is there technical information regarding servicing specifications and maintenance schedules included in the document? keyboard_arrow_down

Manual includes dedicated chapters for servicing specifications and routine maintenance schedules for various model phases. These sections provide standardized reference data and maintenance intervals for the covered Renault Clio petrol engine models.

Can I view detailed exploded views or component breakdown diagrams in this manual? keyboard_arrow_down

Document contains numerous drawings and illustrations designed to show the function and assembly of various vehicle components.

Does this manual provide a coverage preview for the specific 1.8 16V or different engine variants produced between 1991 and 1998? keyboard_arrow_down

Document covers Renault Clio petrol engine models, including the 16-valve variants and special editions, produced from 1991 up to May 1998. It specifically lists coverage for engine capacities ranging from 1108 cc to 1794 cc. The manual does not cover diesel engines, Williams models, or the Clio 2 range introduced in May 1998.

Customer Reviews

Read what our customers say about this Renault Car manual and share your own experience.
