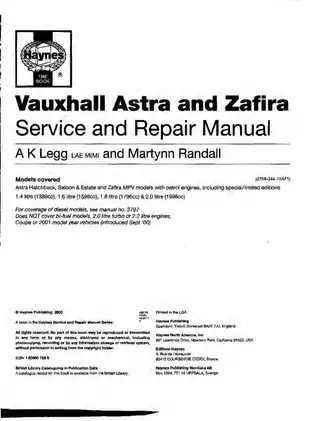

1998-2000 Vauxhall/Opel Astra, Zafira Service and Repair Manual

Inside the 1998–2000 Vauxhall Astra and Zafira Service Manual

• Covers 1998–2000 Vauxhall and Opel Astra and Zafira models, including Hatchback, Saloon, Estate, and MPV variants with 1.4L through 2.0L petrol engines
• Official Haynes publication P/N 3758, 2003 edition
• Contains 12 detailed wiring schematics and over 60 exploded-view diagrams illustrating engine, transmission, and suspension components
• Delivered as a direct download the moment payment clears
• Indexed PDF search covers every chapter and appendix
• This 2003 manual serves as the primary technical reference for the Astra-G and Zafira petrol-engine series, documenting the SOHC and DOHC engine configurations utilized during this build cycle

Maintenance and Technical Scope

This publication provides detailed procedures for routine maintenance and servicing, documenting fluid capacities and torque settings for the 1.4, 1.6, 1.8, and 2.0-liter petrol engines. Chapters outline the servicing of cooling, heating, and air conditioning systems, as well as fuel, exhaust, and emission control configurations. The content includes guidance on engine removal, cylinder head dismantling, and crankshaft inspection, providing specifications for bearing clearances, valve stem diameters, and piston ring end gaps.

Specification Highlights

Engine oil capacity for the 1.4-liter engine is documented at 3.25 liters, while the Zafira fuel tank capacity is specified at 58 liters. The manual lists the spark plug electrode gap at 1.0 mm for all petrol engines. Torque specifications are provided for assembly stages, such as the cylinder head bolt multi-stage sequence and crankshaft pulley retention values. Technical data includes tolerance charts for crankshaft journals and piston-to-bore clearances for the X14XE, X16XEL, X18XE1, and X20XEV engine codes.

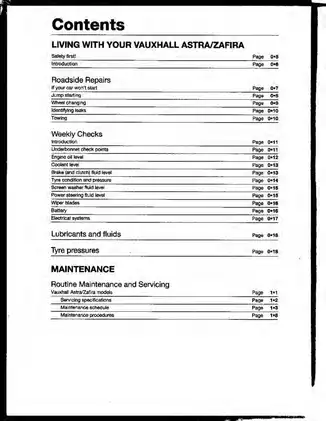

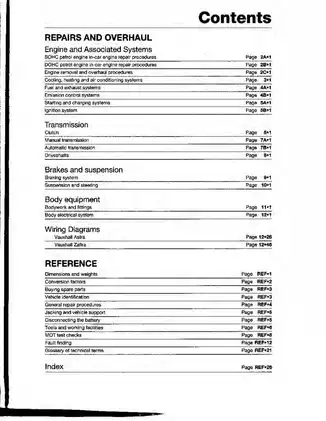

Note: This document is a contents overview for the manual. It does not provide repair or diagnostic instructions.

An official Haynes workshop manual covering the 1998–2000 Vauxhall Astra and Zafira, documenting engine, chassis, electrical, and fuel-injection specifications for the petrol-engine range.
