2008–2009 Yamaha Raptor 250 ATV Service Manual Set (P/N LIT-11616-21-22)

Each publication contains its own maintenance, repair, and diagnostic sections. Use the edition matching your ATV’s model designation, with particular attention to the suspension variants covered in the later publication.

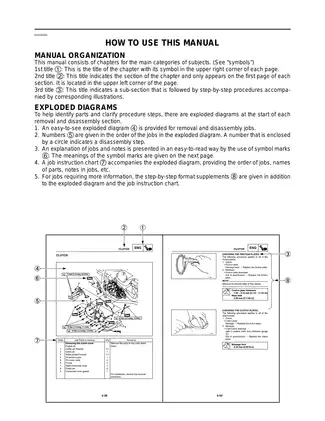

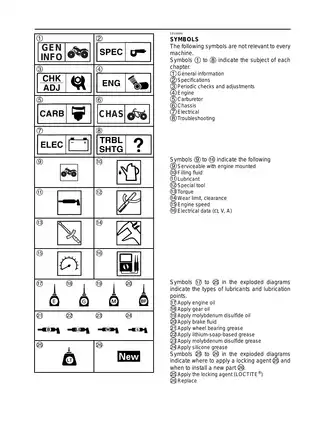

Searchable Text, Chapter Bookmarks, and Wiring Detail

Text search and diagram access: The main text is searchable, and embedded bookmarks organize both publications by chapter. Some labels within wiring and cable-routing illustrations are not searchable. Small wire-color codes and connector markings require zooming for comfortable reading.

The 598-page printable PDF combines both publications in one file, including their two cover pages and 12 blank or header-only pages.

Engine Teardown, Chassis Service, and Electrical Fault Tracing

These selected coverage highlights show the main workshop tasks rather than the complete contents. Other topics include spark-arrester cleaning and headlight-beam adjustment.

• Engine repair: Engine removal, cylinder-head and valvetrain service, piston inspection, crankcase separation, crankshaft checks, and timing-chain installation.

• Clutch and transmission: Wet-clutch disassembly, shift-shaft service, shift-fork and drum inspection, gearbox checks, and reassembly procedures.

• Fuel system: Carburetor disassembly, jet and passage inspection, diaphragm checks, float-height adjustment, and fuel-cock testing.

• Brake service: Front and rear disc inspection, caliper and master-cylinder repair, parking-brake adjustment, and hydraulic brake bleeding.

• Steering and suspension: Wheel-hub bearings, rear axle, steering knuckles, swingarm pivots, and variant-specific shock-absorber adjustments.

• Electrical diagnosis: Ignition, starting, charging, lighting, signaling, and carburetor-heater troubleshooting, supported by circuit diagrams and complete wiring diagrams.

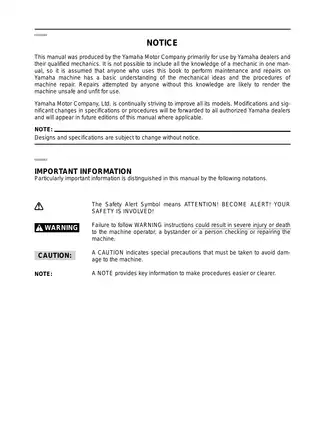

Written primarily for Yamaha dealers and qualified mechanics, these manuals assume a basic understanding of mechanical principles and vehicle repair.

Internal Engine Inspection and Assembly

Step-by-step instructions cover valve removal, valve-guide inspection and replacement, valve-seat checking and lapping, and piston-ring inspection. Cylinder and piston measurements are tied to inspection methods rather than presented only as specification tables.

The cylinder-head installation section identifies crankshaft movement during camshaft installation as a risk for damage or incorrect valve timing. Crankshaft service also includes connecting-rod checks, timing-chain inspection, and the use of dedicated removal and installation tools.

The trochoid oil-pump section covers rotor clearances and assembly checks. Oil Flow Diagrams and the Engine Oil Lubrication Chart show the lubrication paths associated with these components.

Clutch Wear and Gearbox Checks

Clutch coverage includes friction-plate thickness, spring free length, pressure-plate inspection, and pushrod checks. Transmission procedures address shift-fork positioning, gear-dog wear, shaft runout, and gear engagement during reassembly.

Special-tool references include crankcase separator YU-01135-B and universal clutch holder YM-91042, with corresponding tool illustrations and applications.

Carburetor Inspection and Starting Faults

Carburetor instructions distinguish the float valve, piston-valve diaphragm, coasting-enricher diaphragm, and individual jets. The inspection sections explain the replacement grouping for the needle valve, valve seat, and O-ring.

Starting-failure charts separate fuel, compression, and electrical causes. Carburetor-heater diagnosis adds thermo-switch continuity checks and heating-element resistance tests.

Brake, Axle, and Suspension Differences

Exploded assembly views support brake-caliper and master-cylinder work, while the chassis sections include wheel-bearing replacement and rear-axle inspection. Rear-axle removal notes warn that hammering directly on the axle end can damage its threads and splines.

The later publication separates front-shock adjustments for 4D3D from those for 4D3H and 4D3M. The latter receive rebound and slow- and fast-compression damping adjustments, along with their own rear-shock settings.

Safety note: Yamaha warns against opening or heating the nitrogen-charged shock absorbers; the relevant sections cover external adjustment, inspection, removal, and replacement.

Electrical Tests and Reassembly References

Ignition System, Electric Starting System, and Charging System circuit diagrams accompany fault-finding charts. Starting-circuit cut-off explanations distinguish the neutral-switch and clutch-switch conditions, while component tests cover coils, relays, the rectifier/regulator, and starter motor.

Cable Routing views and component-specific torque tables provide a workbench reference for harness placement and fastener tightening during reassembly. Torque data are given in N·m, m·kg, and ft·lb, alongside periodic maintenance and lubrication charts.

Selected Cylinder-Head, Valve, and Crankshaft Measurements

Cylinder-head inspection specifies a maximum warpage of 0.05 mm. The valve-clearance data give a cold intake setting of 0.05–0.10 mm.

For crankshaft inspection, the procedure lists connecting-rod big-end side clearance of 0.350–0.650 mm, together with the associated inspection illustration.
