2007–2008 Hyundai Elantra Factory Service Manual (P/N A2HSE-U65A1)

• Coverage: 2007 Hyundai Elantra GLS with the G4GC-GSL 2.0L engine, presented as a 143-page PDF with 195 consecutively numbered figures credited to Hyundai Motor Co.
• Covers engine-and-transaxle assembly removal and installation, support-fixture use, mount and subframe work, cable adjustment, fluid refill, cooling-system bleeding, and final fuel-leak checks.
• Maps timing-belt removal, inspection, installation, sprocket alignment, tensioner setting, belt-condition checks, and the separate in-vehicle tension-adjustment procedure.
• Walks through cylinder-head removal, disassembly, inspection, valve and spring service, mechanical lash-adjuster shim selection, camshaft measurement, CVVT inspection, valve-guide replacement, and reassembly.
• Follows engine-block teardown and overhaul through piston/connecting-rod removal, crankshaft and bearing inspection, Plastigage checks, graded bearing selection, cylinder-bore and piston matching, ring inspection, honing, and final assembly.
• Adds cooling, lubrication, intake, and exhaust repair coverage, including radiator pressure testing, coolant refill and bleeding, water-pump and thermostat service, oil-pump rotor inspection, oil/filter service, and manifold removal.

Engine Mechanical Documentation

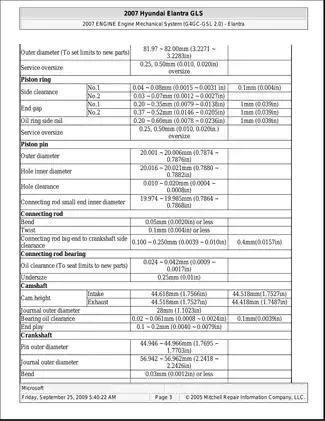

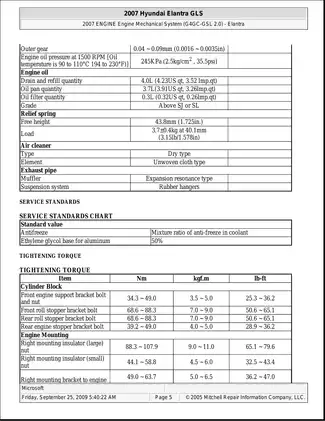

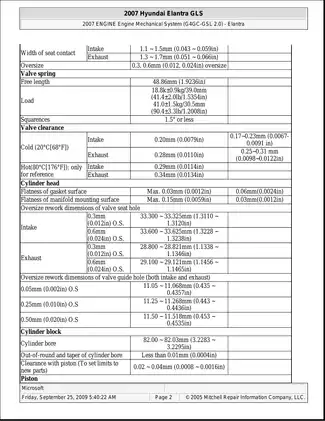

This is a dedicated engine-mechanical section, not a general maintenance booklet. Its layout lets a shop judge whether a repair is limited to external timing, cooling, or sealing work or requires cylinder-head or short-block teardown. The opening material combines dimensional specifications and wear limits with a multi-page tightening-torque chart, compression testing, timing-belt tension adjustment, cold valve-clearance inspection, intake and exhaust shim-selection charts, and a troubleshooting matrix. The diagnostic chart addresses misfire with internal engine noise, coolant or oil consumption, upper- and lower-end noise, hydro-lock, bearing seizure, and a crankshaft that will not rotate.

The engine-and-transaxle chapter shows how the assembly is supported while the mounts and subframe are released, then identifies the adjustments and checks required after installation. Both M/T flywheel and A/T drive-plate references are included in the block reassembly data. Special-tool coverage includes the engine support fixture 09200-38001 with adapter 09200-1C000, valve-clearance tool set 09220-2D000, valve-spring compressor set 09222-28000/09222-28100, and dedicated camshaft and crankshaft oil-seal installers.

Cylinder-head repair goes well beyond gasket replacement. The manual covers head flatness and crack inspection, valve stem-to-guide measurement, valve-seat contact, valve-spring checks, cam-lobe height, camshaft journal oil clearance, end play, and CVVT lock and travel inspection. Reassembly includes new valve-stem seals, MLA placement, separate M10 and M12 multi-stage head-bolt specifications, the numbered bolt sequence, OCV and OCV-filter service, cam-to-cam timing-chain alignment, camshaft seal installation, valve-clearance recheck, and head-cover sealing.

Specification Highlights

The block chapter is written for actual measurement and selection work, not just part replacement. Connecting-rod end play, rod and main-bearing oil clearance, crankshaft end play, journal and crank-pin measurement, block flatness, bore inspection, piston-to-bore matching, piston-ring side clearance and end gap, piston-pin fit, and oil-pressure-switch testing are all covered. Bearing replacement is tied to connecting-rod, crankshaft, and block identification marks, color classes, and selection charts rather than a generic one-size specification.

The visual references include the Timing Belt Components With Torque Specification exploded view, the two-part Cylinder Head Assembly Components and Torque Specifications drawings, the Cylinder Head Bolts in Sequence diagram, the crankshaft and connecting-rod identification-mark charts, the Cooling System Components and Torque Specifications view, and the Lubrication System Components and Torque Specifications view. These are backed by component-specific torque callouts throughout the removal and installation sections.

The manual flags several easy-to-miss repair traps: rotating the timing-belt tensioner adjuster clockwise can impair the auto-tensioner, and loosening the cylinder-head bolts out of sequence can warp or crack the head. For bearing clearance, it directs the technician to the graded-bearing charts instead of filing, shimming, or scraping bearings or caps.

Before engine/transaxle removal or cooling-system repair, disconnect the battery, support the assembly with suitable equipment, and open the pressurized cooling system only after the engine is cool. Scope is limited to the engine mechanical system; this PDF is not the complete Elantra shop manual and does not provide full ignition, fuel-system, electrical, transmission-overhaul, brake, body, or HVAC coverage.
