Dodge Models Covered & Key Technical Specifications

Models & Model Codes: RAM Truck 1500 (DR1 4X2, DR6 4X4), RAM Truck 2500 (DR2 4X2, DR7 4X4), RAM Truck 3500 (DR3 4X2, DR8 4X4)

Sub-models / Variants: 4X2, 4X4, 1500, 2500, 3500, Conventional Cab, Quad Cab, Short Box, Long Box, Light Duty (LD), Heavy Duty (HD). Body codes: Quad Cab Short Box (41), Quad Cab Long Box (42), Conventional Cab Short Box (61), Conventional Cab Long Box (62).

Model Year: 2003

VIN identification: Position 5 (drive): A = 4X2, U = 4X4. Position 6 (series): 1 = 1500, 2 = 2500, 3 = 3500 single rear wheel, 4 = 3500 dual rear wheel. Position 7 (cab): 6 = Conventional Cab, 8 = Quad Cab with full rear doors. Position 8 identifies the engine as listed below.


  • Engine displacement: 3.7L (EKG, VIN K), 4.7L (EVA, VIN N), 5.7L (EZA, VIN D), 5.9L Gasoline (EML, VIN Z), 5.9L Turbo Diesel (ETC, VIN 6), 5.9L Turbo Diesel High Output (ETH, VIN C), 8.0L (EWA, VIN W)

  • Transmission types: 4-speed Automatic (46RE/DGT, 45RFE/DG4, 47RE/DGP, 48RE/DG8), 5-speed Automatic (545RFE), 5-speed Manual (NV3500/DDC, NV4500/DDP), 6-speed Manual (NV5600/DEE). 47RE coverage consists of identification and service references.

  • Fuel types: Gasoline, Diesel

  • Drive systems: 4X2, 4X4

  • Coolant capacity (5.9L Diesel): 28 liters (29.5 quarts)

  • Fuel tank capacity (Short Box, Light Duty): 98 liters (26 gallons)

  • Torque (Hub/Bearing Bolts LD): 163 Nm (120 ft-lbs)

  • Torque (Hub/Bearing Bolts HD 4X2): 176 Nm (130 ft-lbs)

  • Axle thrust angle (1500): 0° ± 0.4°

Dodge Manual Features & Selected Content Preview

DaimlerChrysler’s 2003 Dodge RAM Truck Service Manual (P/N 81-370-03059) covers the 1500, 2500, and 3500 in 4x2 and 4x4 configurations, including conventional and Quad Cab bodies with short and long boxes.

PDF Search, Bookmarks, and Wiring Diagrams

Finding procedures and reading diagrams: Service text and reference tables are searchable. The 306 wiring pages without searchable text can be read on screen. Bookmarks take you to service groups, components, and procedures. The Foreword bookmark opens on the cover. Zoom in to read small pin numbers, connector IDs, and wire codes in dense schematics.

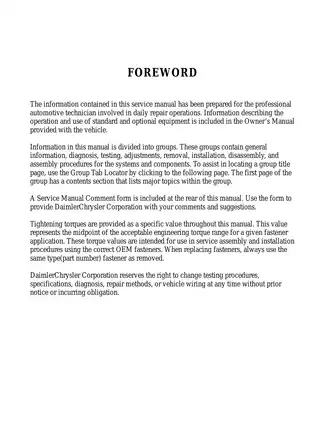

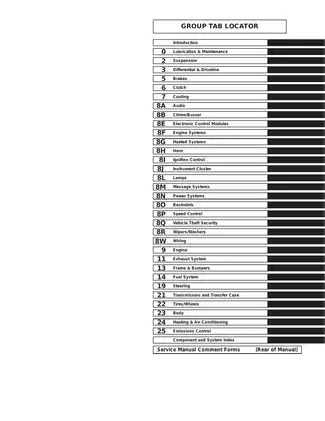

The ZIP download contains one printable English PDF with 2,895 pages. That total includes the cover, foreword, and Group Tab Locator (one page each), the 38-page component and system index, and 31 blank pages.


Powertrain Overhaul, Chassis Service, and Circuit Diagnosis

This selection of workshop topics focuses on repair and testing. The manual also includes frame dimensions and troubleshooting charts for exhaust noise and leaks.

  • Engine repair: Diagnosis, removal and installation, cylinder-head and valvetrain service, timing-system work, internal inspection, and lubrication procedures for gasoline and Cummins diesel engines.
  • Transmissions and transfer cases: Geartrain and synchronizer teardown, clutch and band inspection, valve-body and oil-pump service, and transfer-case overhaul.
  • Axles, suspension, and brakes: Differential setup, ride-height checks, wheel alignment, steering repair, base brake and parking-brake service, hydro-boost bleeding, and ABS diagnosis.
  • Electrical diagnosis: 8W wiring diagrams, circuit tests, PCI bus communications, module service, PCM and SKIM programming, and TCM Quick Learn and Drive Learn.
  • Fuel and cooling systems: Gasoline and diesel fuel-system diagnosis, injector and pump service, cooling-system testing, and water-pump and thermostat replacement.
  • Body and HVAC: Glass and door adjustment, structural repair references, HVAC performance tests, control and actuator diagnosis, and refrigerant-system service.
  • Workshop reference data: Torque tables, fluid types and capacities, pressure-test specifications, wear limits, clearances, maintenance schedules, fastener strength charts, and exploded views.

Written for professional automotive technicians performing daily repair work.

Vehicle Identification and Engine Repair

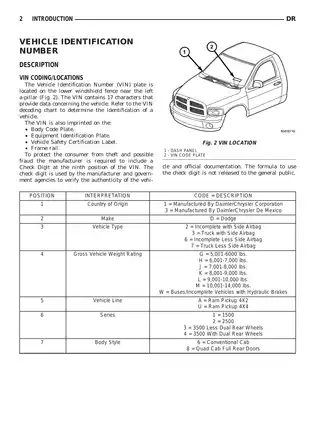

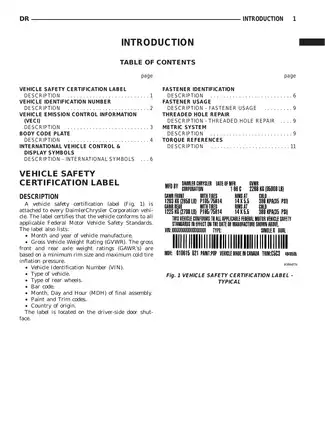

The body-code and VIN tables distinguish 4x2 and 4x4 chassis, conventional and full-rear-door Quad Cabs, and single- and dual-rear-wheel 3500 models. These distinctions help match the truck to the correct chassis, powertrain, and wiring information before selecting parts or repair procedures.

Gasoline engines have dedicated sections for the 3.7L V6, 4.7L V8, 5.7L V8, 5.9L V8, and 8.0L V10. Performance, lubrication, compression, and combustion-leak diagnosis accompany internal work on cylinder heads, valvetrain, blocks, crankshafts, bearings, pistons and rods, oil pumps, manifolds, and timing components.

Cummins diesel coverage includes standard- and high-output 5.9L turbo-diesel configurations, engine data-plate identification, gear-housing and gear-train service, solid lifters, and diesel lubrication procedures. Engine tool references include support fixture 8534.

Transmission and Transfer-Case Service

Repair chapters cover the NV3500, NV4500, and NV5600 manuals and the 46RE, 48RE, and 45RFE/545RFE automatics. The 47RE has identification and service references. Its dedicated overhaul chapter is outside the scope of this manual.

Manual-transmission procedures cover shafts, bearings, gears, synchronizers, and shift mechanisms. Automatic-transmission diagnosis uses hydraulic pressure tests, air tests, and hydraulic-flow schematics. Internal service covers clutch packs, bands, selective fitting, end-play checks, torque converters, pumps, valve bodies, and final checks.

The manual warns that overlong converter-to-driveplate bolts can damage the clutch surface inside the torque converter. Transfer-case sections for the NV241 Gen II, NV271, NV243, and NV273 cover removal, disassembly, inspection, assembly, and installation.

Axles, Suspension, and Brakes

Driveline and differentials include propeller shafts, universal and CV joints, C205F and 9¼ AA front axles, and 9¼, 10½ AA, and 11½ AA rear axles, including Trac-Lok and Trac-Rite differentials.

Axle procedures cover pinion depth, bearing preload, backlash, tooth-contact checks, ring-and-pinion setup, seal and bearing replacement, and differential teardown. The manual calls for a new collapsible spacer if it has been crushed past the specified preload. Tool references include bearing puller C-293-PA and slide hammer C-3752.

Suspension and steering have separate sections for independent and link/coil front suspensions. Coverage includes pre-alignment inspection, light-duty 4x4 ride-height checks, camber, caster and toe adjustment, hubs, control arms, ball joints, springs, shocks, stabilizers, and 3500 auxiliary spring bumpers.

Brake procedures cover caliper rebuilding, master-cylinder and hydro-boost bleeding, and parking-brake adjustment. Rear-wheel and all-wheel ABS coverage includes bleeding procedures, wheel-speed sensors, hydraulic control unit service, and RWAL components.

Wiring and Electronic Controls

The 8W wiring section spans 548 PDF pages. Diagram groups include power and ground distribution, fuel and ignition, transmission control, rear-wheel and all-wheel ABS, and air conditioning. Connector pinouts and connector, ground, and splice locations help trace a circuit from the schematic to the harness.

Electrical procedures cover continuity, shorts to ground, voltage drop, terminal repair, wire splicing, and electrostatic-discharge precautions. The manual also covers starting and charging system diagnosis and references the DRB III scan tool. Certain DTC-based and scan-tool fault trees require separate Diagnostic Procedures manuals.

Fuel and Cooling Systems

Gasoline and diesel fuel delivery and injection have separate sections. Diesel coverage distinguishes early and late accelerator-pedal position sensor arrangements and includes fuel-system priming and injection-pump service.

Cooling diagnosis includes leak and flow checks, with engine-specific radiator, thermostat, water-pump, and fan procedures.

Body and HVAC Repair

Body procedures address water leaks, wind noise, glass and door adjustment, panel removal, and plastic repair. Structural references provide gap-and-flush data, body-opening dimensions, and sealer, structural-adhesive, and weld locations.

HVAC coverage extends from performance tests and control diagnosis to housing disassembly and compressor, condenser, evaporator, and heater-core service.

Airbag, brake, fuel, cooling, lifting, and refrigerant work requires the factory-specified isolation precautions, handling procedures, and recovery equipment.

Front Differential Setup Examples

The axle tables specify ring gear backlash of 0.12–0.20 mm (0.005–0.008 in.) for the C205F front axle and 0.13–0.18 mm (0.005–0.007 in.) for the 9¼ AA front axle. The separate ranges help identify which specification applies when checking ring-and-pinion setup.
