Dodge RAM Truck 2006 Service Manual – Partial PDF (P/N 81-370-06059)
7,615 Pages • Printable PDF • 176.93 MB • Download
Dodge Models Covered & Key Technical Specifications
Model: RAM Truck
Sub-models / Variants: SRT-10, 3.7L, 4.7L, 5.7L, 5.9L Diesel, 8.3L
Manual transmissions: G56, Getrag 238, T56
Automatic transmissions: 42RLE, 45RFE/545RFE, 48RE (gas and diesel variants)
Transfer cases (4WD/AWD): NV241 GENII, NV271, NV243, NV244 GENII, NV273
-
Spark plug gap (3.7L): 1.1 mm (0.042 in.)
-
Spark plug gap (4.7L): 1.01 mm (0.040 in.)
-
Spark plug gap (5.7L): 1.14 mm (0.045 in.)
-
Ignition coil primary resistance (3.7L/4.7L): 0.6–0.9 ohms at 21–27°C (70–80°F)
-
Ignition coil primary resistance (5.7L): 0.558–0.682 ohms at 21–27°C (70–80°F)
-
Ignition coil primary resistance (8.3L): 0.53–0.65 ohms at 21–27°C (70–80°F), Diamond coil
-
Spark plug torque (3.7L/4.7L/8.3L): 27 N·m (20 ft-lbs)
-
Spark plug torque (5.7L): 18 N·m (13 ft-lbs)
Dodge Manual Features & Selected Content Preview
This partial PDF of the 2006 Dodge RAM Truck service manual, P/N 81-370-06059, includes configuration-specific material for Ram 1500, 2500, and 3500, with SRT-10, Power Wagon, and diesel equipment. Body procedures distinguish Regular/Standard Cab, Quad Cab, and Mega Cab layouts.
PDF Search, Bookmarks, and Diagram Detail
Search and diagram navigation: Text chapters are searchable, but many wiring-diagram labels are not. Two embedded bookmarks lead to the cover and the start of the service content; they do not provide chapter-by-chapter navigation. Small circuit, connector, and pin labels are best read with the diagrams enlarged.

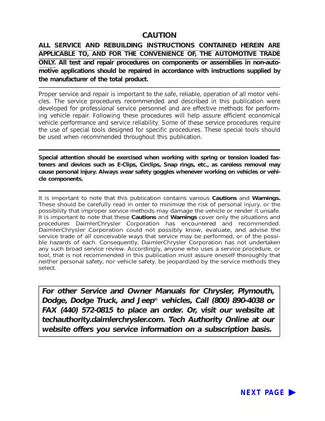

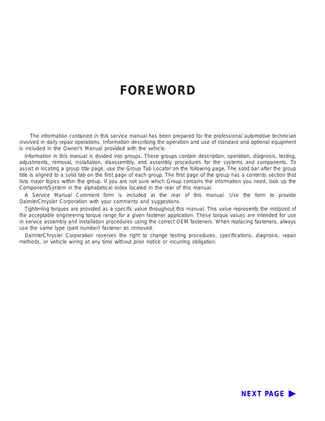

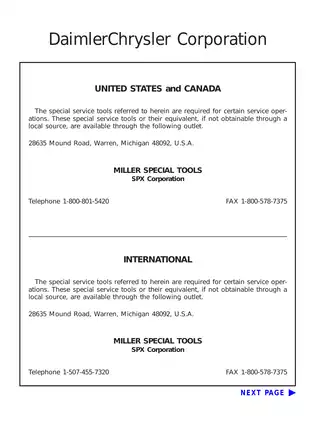

One printable, English-language PDF contains 7,615 pages, including four preliminary pages, sixteen component/DTC index pages, two closing service-comment/address pages, and twelve blank divider pages.
Engine, Drivetrain, and Electrical Workshop Coverage
The following selected content highlights outline the main repair areas. Other examples include tire match-mounting and wheel balancing, plus evaporative-emissions leak diagnosis.
-
Engine repair: Diagnosis, removal and installation, cylinder-head and valve service, crankshaft and piston inspection, timing work, and internal repair for gasoline and Cummins diesel engines.
-
Transmission and transfer-case service: Manual gearbox teardown, automatic-transmission hydraulic and electrical testing, valve-body and clutch-pack repair, and transfer-case disassembly and assembly.
-
Electrical fault tracing: System wiring diagrams, connector pinouts and locations, splice and ground views, CAN-bus diagnosis, DTC decision trees, scan-tool verification, and TIPM-controlled circuit tests.
-
Cab electronics and restraints: Instrument-cluster, lighting, airbag, heated-seat, and power-accessory diagnosis, with programming and initialization procedures for supported equipment.
-
Steering and body work: Steering-system testing and repair, frame and structural measurements, doors, glass, interior components, and winch service.
-
Heating and air conditioning: Single-zone and dual-zone diagnosis, compressor and actuator service, refrigerant recovery, evacuation and charging, and HVAC-housing disassembly.
-
Factory reference data: Fastener torque tables, clearances and wear limits, fluid and pressure specifications, electrical test values, gear data, and illustrated special-tool listings.
DaimlerChrysler prepared this service manual for professional automotive technicians involved in daily repair operations. Its scan-tool routines, component overhaul procedures, and special-tool requirements suit equipped repair shops and technicians familiar with factory diagnostic workflows.
Included Sections and Missing Chapters

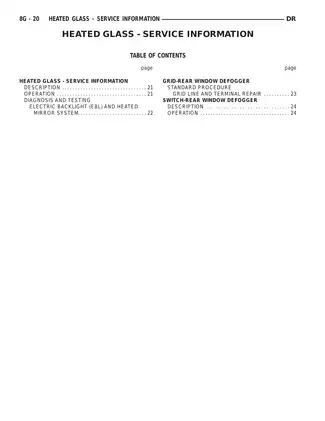

After the preliminary pages, the workshop content starts at Group 8G, page 20 (PDF p. 5). The file contains selected electrical groups from 8G through 8T, Group 8W wiring, Groups 9, 11, 13, 14, 19, and 21–25, followed by component and DTC indexes.
The manual's Introduction, Groups 0 through 8F, and Group 8G pages 1–19 are absent. The standalone suspension, differential/driveline, brake, clutch, engine-cooling, and Group 8A audio service chapters are not included, even where indexes or procedures refer to them.
Engine Diagnosis and Cummins Fuel Systems
Engine service sections cover the 3.7L V6, 4.7L V8, 5.7L V8, 5.9L Cummins diesel, and SRT-10 8.3L V10. Step-by-step procedures extend to compression and combustion-leakage testing, valve-seat refacing, bearing and piston fitting, timing-chain work, and oil-pressure checks.
Ignition material supplies firing orders, nonadjustable ignition-timing information, plug and coil specifications, cable-resistance tests, and separate camshaft/crankshaft sensor procedures. Diagnostic trees address coolant-temperature, intake-air, MAP, throttle, oxygen-sensor, misfire, relay, and timing-synchronization faults.
The Bosch high-pressure common-rail sections cover priming, water draining, high-pressure line leak diagnosis, rail and injector service, fuel-pressure controls, and intake-air heaters. Injection timing is controlled electronically by the ECM; the Bosch pump does not require a mechanical timing adjustment.
Turbocharger material adds boost checks, electronic wastegate service, and charge-air-cooler leak testing.
Gearbox Overhaul and Transfer-Case Variants
Manual transmission chapters cover G56, Getrag 238, and T56, including bearing-preload adjustment and shift-component inspection. Automatic coverage distinguishes 42RLE, 45RFE/545RFE, and 48RE, with separate gas and diesel electrical-diagnostic sections for the 48RE.
Road tests, clutch air checks, Clutch Volume Index checks, and post-repair verification support fault isolation alongside internal repair. The 45RFE/545RFE Hydraulic Schematics show circuit operation within the transmission.
Transfer-case chapters treat NV241 GENII, NV271, NV243, NV244 GENII, and NV273. They distinguish mechanical and electronic shift arrangements, including the NV244 GENII's AWD operation, with variant-specific inspection, assembly, and adjustment information.
Wiring, Cab Electronics, and Programming
Group 8W covers power distribution, circuit identification, continuity, short-to-ground and voltage-drop testing, terminal removal, connector service, wire splicing, and protection of electrostatic-discharge-sensitive devices.
Integrated Power Module, Bus Communications, Fuel/Ignition System, Transmission Control System, and Connector/Ground/Splice Location diagrams connect diagnostic charts with circuit and harness identification. A technician can follow a test-chart fault to the relevant connector, splice, or ground when distinguishing a wiring problem from a component fault.
Component-level work includes rear-defogger grid and terminal repair, heated-mirror checks, heated-seat cushion/backrest and switch/module testing, and horn-switch/relay diagnosis.
Programming and initialization procedures cover Sentry Key transponders, remote keyless-entry transmitters, sunroof motor/modules, compass calibration, and universal-transmitter codes. Related diagnostics address navigation/telecommunications, wipers, speed control, and transfer-case electronics.
Steering, Structural Repair, and HVAC
Steering information separates independent-front-suspension and link/coil gear and linkage procedures, with power-steering pressure testing and SRT-10 pump service. Structural repair data supplies frame and body-opening dimensions, gap-and-flush specifications, and weld, sealer, and structural-adhesive locations.
HVAC procedures distinguish single-zone and dual-zone actuator faults and Denso 10S17 versus Visteon HS-18 compressor applications. Leak testing and housing repair are supported by component-specific refrigerant and lubricant information.
Special Tools and Repair Cautions
Tool references include Cummins Charge Air Cooler Tester Kit 3824556, Miller Special Tool 8815, G56 Measurement Fixture 9592, and T56 Transmission Fixture 9387.
Incorrect cam-gear position or sensor installation depth can break the 8.3L camshaft position sensor at startup. Separating the Cummins accelerator-pedal position sensor from its pedal assembly can destroy its electronic calibration.
Follow the manual's precautions for airbag circuits, high-pressure diesel fuel, refrigerant service, spring-loaded parts, and high-current electrical systems.
Examples of Cummins Valve-Lash Specifications
For the 5.9L Cummins, the valve-lash section gives reset settings of 0.254 mm (0.010 in.) intake and 0.660 mm (0.026 in.) exhaust, with coolant below 60°C (140°F). Separate allowable inspection ranges distinguish a lash measurement that can remain in service from the setting used during adjustment.
