1984-1999 Chrysler Force 4 hp -150 hp Outboard Motor Service Manual
Service, repair, and troubleshooting for Chrysler/Force 4-150 HP outboards from 1984-1999. Includes detailed diagrams and procedures for maintenance and overhaul.
Manual Preview

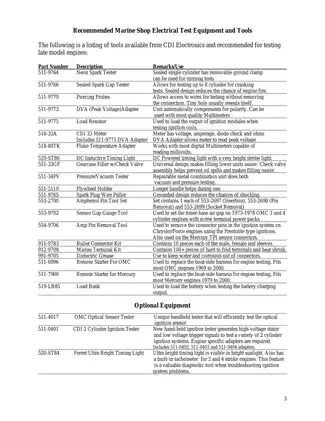

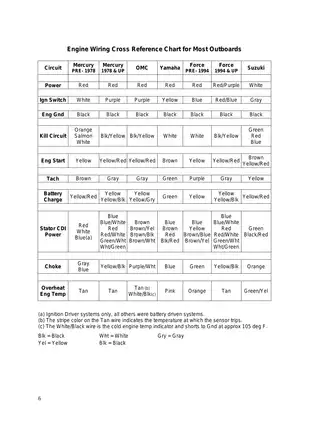

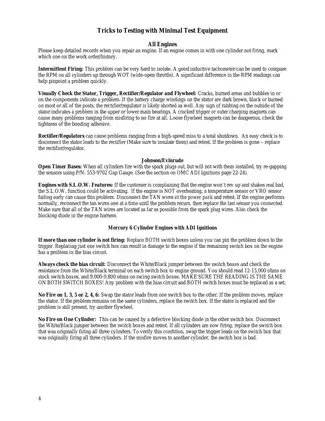

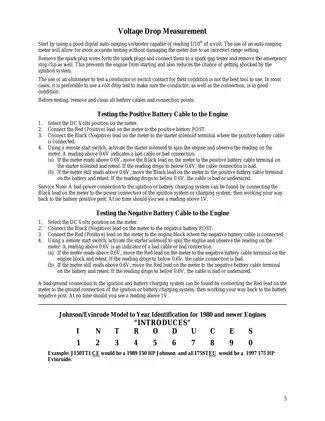

Sample pages from the 1984-1999 Chrysler Force 4 hp -150 hp Outboard Motor Service Manual manual
Purchase & Download
Models Covered & Key Technical Specifications
Chrysler/Force Outboard Motor Manual: 1984-1999 Powertrain-Manual
Service, repair, and troubleshooting for Chrysler/Force 4-150 HP outboards from 1984-1999.
- Engine Displacement Specifications: 4.0L V8 engines have 350 cubic inches of displacement.
- Ignition System Type: Capacitive Discharge Ignition (CDI) is utilized for reliable spark generation.
- Stator Resistance Range: Stator winding resistance is specified between 450-550 ohms for optimal performance.
- Trigger Coil Output: Trigger coil output voltage measures 0.5V or more for accurate timing.
- Ignition Coil Primary Resistance: The primary resistance for ignition coils is set between 0.2-1.0 ohms.
- Maximum Crank Speed: Engines require a minimum cranking speed of 250-RPM for proper ignition.
Professional Workshop Service Manual & Technical Specifications
Chrysler/Force Outboard Motor Manual: 1984-1999 Powertrain-Manual
Engine-Coverage: 1984-1999 Chrysler/Force Outboards // System-Path: Ignition / Electrical Systems // Design-Core: All 4hp to 150hp models covered.
| Identifier | System-Path | Validation-Data |
|---|---|---|
| Power | Stator Wires | 180V+ |
| Ignition Switch | Trigger Wires | 45-55 Ohms |
| Engine Ground | Ignition Coil Output | 800-1100 Ohms |
| Kill Circuit | CDI Output | 0.5V+ |
| Engine Start | Primary Resistance | 0.2-1.0 Ohms |
| Tachometer | Secondary Resistance | N/A |
The manual presents information on carburetor removal and installation, fuel system operation, and engine synchronization. It details ignition and electrical systems, power head, and gearcase procedures. Specific sections cover automatic rewind starters and power trim and tilt systems, along with a comprehensive index and wiring diagrams. Careful attention is paid to the proper maintenance pathway for optimal engine performance and longevity. Troubleshooting guidance for ignition and fuel systems is also included to address common issues and ensure smooth operation.
This manual documents torque specifications for various engine components to ensure proper thermal expansion compensation and mechanical integrity. Experienced mechanics and DIY enthusiasts alike will find the detailed illustrations and step-by-step instructions invaluable for accurate diagnosis and repair.
