2005 Chrysler PT Cruiser Service & Repair Manual (P/N 81-370-03061)

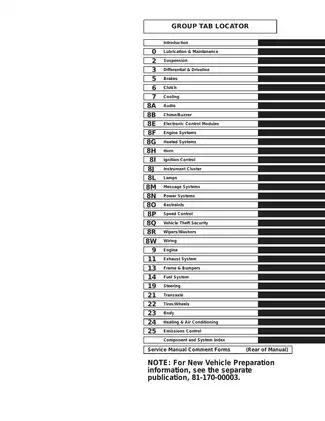

• Factory coverage: DaimlerChrysler Publication No. 81-370-03061, a 2,078-page PDF for the 2003 Chrysler PT Cruiser, with VIN-based coverage for High Line, Premium, Sport, and Special series; left-hand-drive, right-hand-drive, domestic, and export configurations.
• Gasoline engine repair: Covers engine removal and installation, cylinder-head and valvetrain work, short-block inspection and assembly, lubrication-system service, and timing procedures for the 1.6L SOHC, 2.0L DOHC, 2.4L DOHC, and 2.4L H.O. turbo gasoline engines.
• Transaxle and clutch work: Details NV T350 and Getrag 288 manual-transaxle teardown and reassembly, differential and synchronizer service, clutch and hydraulic-component repair, plus 41TE automatic diagnosis, pressure testing, internal overhaul, valve-body work, and hydraulic schematics.
• Suspension and driveline: Includes MacPherson strut, steering-knuckle, hub/bearing, lower-control-arm, and stabilizer procedures, along with twist-beam rear-axle and Watts-link repair, CV halfshaft service, and front/rear alignment inspection and adjustment data.
• Brake and steering systems: Covers base-brake diagnosis, front disc and rear disc/drum brake service, Mark 20e ABS/TCS diagnosis, ABS bleeding, HCU/ICU service, and power-steering pump, gear, hose, cooler, and system-bleeding procedures.
• Electrical diagnosis: Provides system wiring diagrams, connector pin-outs, splice and ground information, component-location views, circuit-test methods, and configuration-specific schematics for gasoline, turbo, diesel, LHD, RHD, and export builds.
• Body and climate systems: Covers LHD/RHD HVAC diagnosis and component service, plus doors, liftgate, glass, sunroof, seats, body structure, water leaks, and wind-noise diagnosis.

Model and Powertrain Coverage

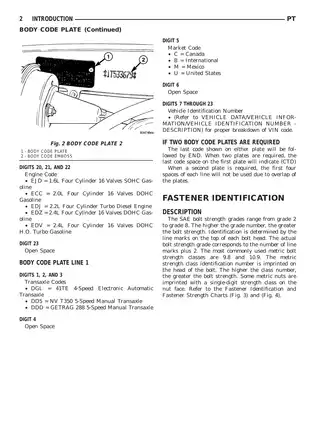

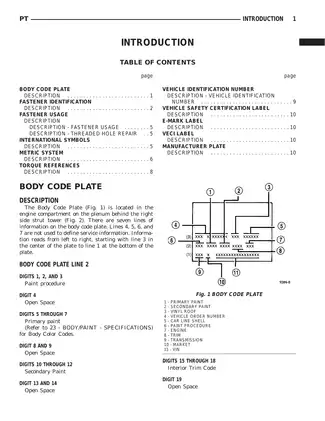

The VIN and body-code references separate the covered engine and drivetrain combinations instead of treating every PT Cruiser as mechanically identical. Transmission coverage spans the 41TE four-speed automatic, NV T350 five-speed manual, and Getrag 288 five-speed manual. The halfshaft chapters also distinguish the unequal-length arrangement used on naturally aspirated cars from the equal-length system with an intermediate shaft used on 2.2L diesel and 2.4L turbo applications.

The 2.2L turbo diesel is covered where its configuration changes the vehicle: lubrication and capacity data, clutch hydraulics, the G288 transaxle, halfshafts, battery and starting systems, power steering, HVAC, wiring, and related service information. This publication does not contain a complete internal 2.2L diesel engine-overhaul chapter. Full internal engine repair is provided for the listed gasoline engines, an important scope distinction when selecting this manual.

The lubrication and maintenance group also covers approved fluids, capacities, fill/check locations, maintenance schedules, hoisting, jump-starting, and towing.

Engine, Transmission, and Chassis Repair Depth

The gasoline engine chapters include compression and cylinder-leakage diagnosis, engine removal, cylinder-head disassembly, camshaft and valve service, crankshaft and piston work, bearing inspection, oil-pump repair, and timing-belt or timing-chain procedures. The 2.4L material adds balance-shaft service and turbo-specific lubrication components. A separate turbocharger section addresses diagnosis, removal and installation, charge-air cooler and hose service, oil and coolant lines, and boost-control hardware.

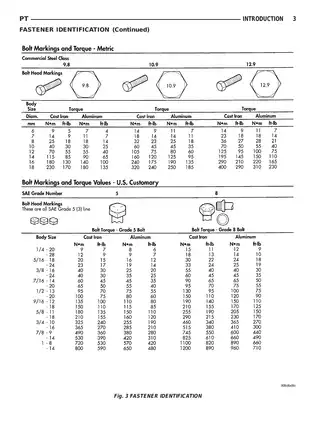

Both manual-transaxle chapters support bench work on the cases, shafts, synchronizers, differentials, bearings, seals, and shift controls. The 41TE section adds road-test guidance, hydraulic-pressure and clutch-air tests, fluid-leak diagnosis, pump and input-clutch service, planetary and final-drive work, solenoid/pressure-switch service, and differential-preload adjustment. Component-specific torque tables, clearances, wear limits, fluid specifications, and final checks are placed with the related repair procedures.

Rear-suspension coverage is built around the PT Cruiser’s twist-beam axle and Watts-link layout. It addresses axle and pivot-bushing service, hub and spindle repair, springs, shocks, the stabilizer bar, and bell-crank/link removal and installation. Factory-tool references identify equipment such as Watts-link ball-joint remover MB991113, Probing Tool Package 6807, Terminal Pick Tool Set 6680, and application-specific engine and transaxle fixtures.

Wiring, Diagrams, and Diagnostic Scope

The 8W electrical section explains Chrysler diagram conventions and the tests used to trace opens, shorts, unwanted resistance, poor grounds, connector faults, and splice problems. Representative circuit groups include 8W-10 Power Distribution, 8W-18 Bus Communications, 8W-30 Fuel/Ignition System, 8W-31 Transmission Control System, 8W-35 Antilock Brakes, and 8W-43 Occupant Restraint. Connector pin-out tables and connector/ground/splice location views tie the schematics to physical components and harness branches.

Complete DRB III fault-code routines are cross-referenced to separate Powertrain, Transmission, or Body Diagnostic Procedures publications. This service manual still supplies the mechanical tests, wiring, connector data, component procedures, and system descriptions used for the related diagnosis and repair.

The Watts-link bell crank has visually similar ends but a specified installed orientation; reversing it can cause premature bearing failure and improper lateral axle control. In the 2.4L DOHC timing material, the manual warns that rotating the camshafts independently can produce valve-to-valve contact even though piston-to-valve clearance is maintained.

Suspension, brake/ABS, fuel, cooling, restraint, and drivetrain procedures can involve vehicle lifting, stored spring force, pressurized fluids, or pyrotechnic components. Use suitable shop equipment, isolate the affected systems, and follow the factory safety instructions before beginning repair work.
