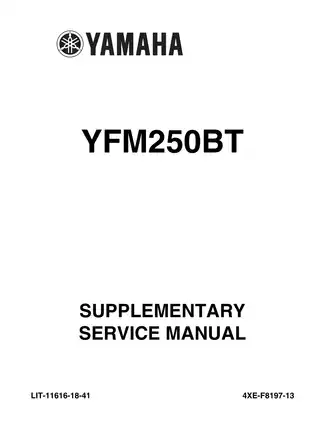

Yamaha Bruin 250 / Big Bear 250 ATV Service & Owner’s Manual Set, 2005–2006 (P/N LIT-11616-18-41)

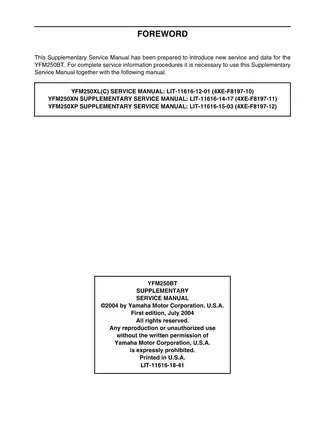

The BT supplement requires the XL(C) base manual and the XN and XP supplements for complete service information; all four are combined in the service PDF. The separate owner’s manuals explain operation and routine care for their respective models.

Big Bear coverage: The Big Bear publication is the YFM25BX owner’s manual. Internal repair procedures are in the model-specific service publications listed above.

Text Search, Bookmarks and PDF Contents

Navigation and diagram detail: All three PDFs have embedded bookmarks. The service text and the main text in both owner’s manuals are searchable; some label, illustration and additional pages in the owner’s volumes are not. Small wire-color codes and connector labels in the service diagrams are best read with zoom.

The ZIP contains three printable English PDFs: a 444-page combined service volume and two owner’s manuals. The 774-page total includes original covers, preliminary and divider pages, plus six additional pages within the owner’s manuals.

Engine, Shaft-Drive and Electrical Service

These selected topics outline the workshop and operating content. Further examples include air-filter care and headlight-beam adjustment.

• Engine repair: Step-by-step procedures for engine removal, cylinder-head disassembly, crankcase separation, internal inspection, reassembly and valve-timing adjustment.

• Clutch and transmission: Primary and secondary clutch service, friction-plate inspection, transmission-shaft checks, shift-fork inspection and shift-mechanism assembly.

• Carburetor service: Removal and disassembly, jetting tables, diaphragm inspection, float-height and fuel-level checks, plus BT starter-cable adjustment.

• Shaft drive: Middle-gear and final-drive disassembly, shim selection, backlash measurement, universal-joint service and drive-shaft installation.

• Brakes and chassis: Front disc-brake overhaul and bleeding, rear drum-brake service, rear-axle inspection, steering checks and suspension-bearing replacement.

• Electrical diagnosis: Model-specific wiring diagrams and test charts for ignition, starting, charging, lighting and signal-system faults, with switch-continuity checks.

• Owner operation and care: Pre-ride checks, starting and reverse operation, riding guidance, loading, periodic maintenance, cleaning and storage.

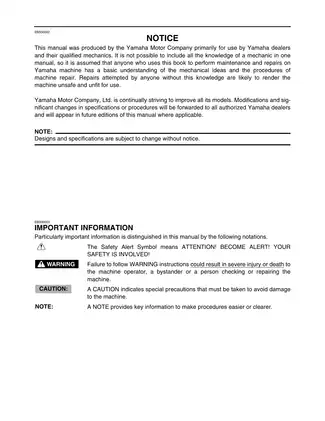

Yamaha wrote the service publications primarily for dealers and qualified mechanics with a basic understanding of machine repair; the owner’s manuals cover operation and minor maintenance, with dealer referrals for work beyond the owner’s tools or experience.

Internal Engine Work and Shaft-Drive Setup

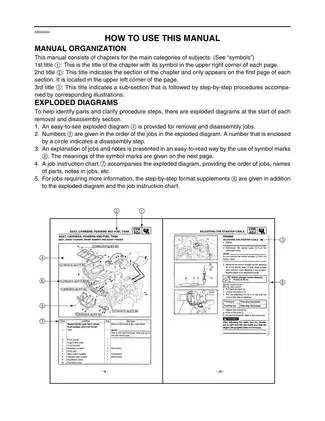

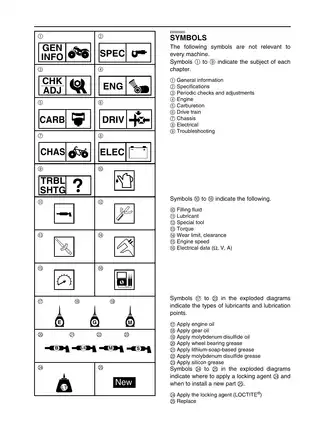

The nine-chapter base manual pairs exploded assembly views with job tables, lubrication diagrams and component-specific torque specifications. Cylinder-head coverage extends to valve-seat assessment and valve-guide replacement and reaming, while the engine chapter details piston wear checks, crankshaft inspection and balancer alignment.

The drive-train sections relate shim calculations to the markings on gears and housings, then cover backlash checks after assembly. This supports selecting replacement shims when major drive components change. The final-drive cautions explain that insufficient gear lash can damage the gear teeth.

Brake Revisions and Starting-Circuit Diagnosis

The supplements distinguish the earlier front-drum arrangement from later disc-brake systems. XN coverage includes master-cylinder and caliper disassembly, seal inspection and hydraulic bleeding; XP adds dual-disc specifications. The brake-overhaul cautions explain how cleaning solvents can swell and distort internal seals.

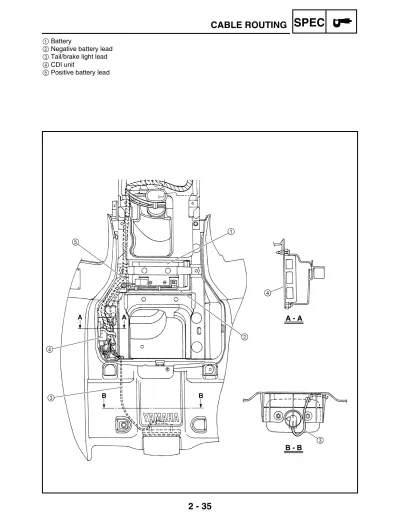

The combined service PDF contains 12 wiring and circuit diagrams, including ignition, electric-starting, charging and lighting diagrams. The BT wiring diagram adds connector shapes and wire-color codes. Starting-circuit explanations show how the neutral switch, rear-brake switch and cut-off relay interact, helping a mechanic assess interlock faults during a no-crank diagnosis.

Follow the manual’s support and isolation precautions when working on raised wheels, brakes or electrical components.

A Preview of Carburetor and Ignition Test Data

For the YFM250BT, the carburetor specifications list an engine idle speed of 1,400–1,500 r/min and an intake vacuum of 30.7 kPa. The same table provides jetting, float-height and fuel-level data.

The BT pickup-coil specification is 189–231 Ω at 20°C (68°F), between the White/Green and White/Red leads. It appears alongside starter-motor and relay test specifications in the supplement’s electrical table.
