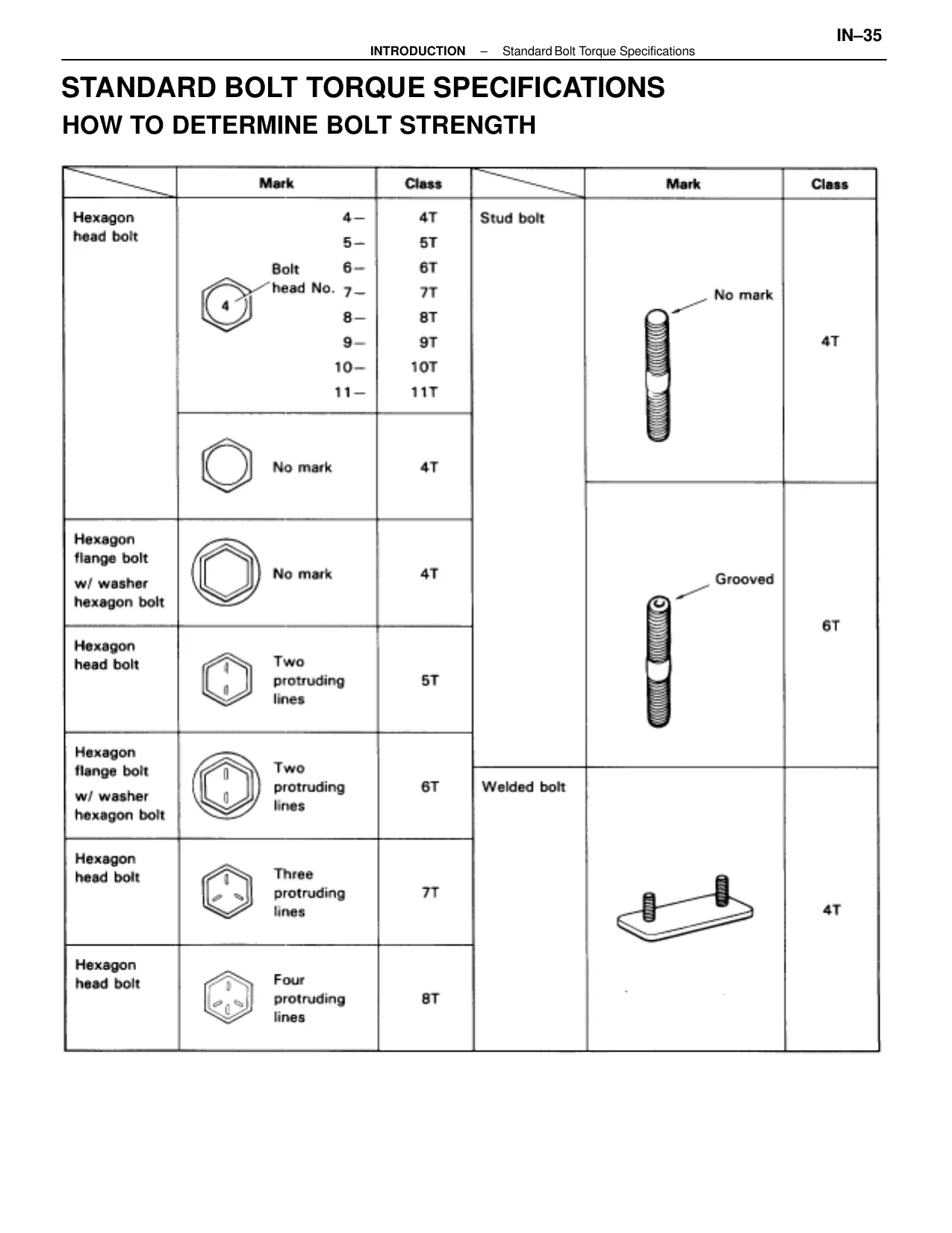

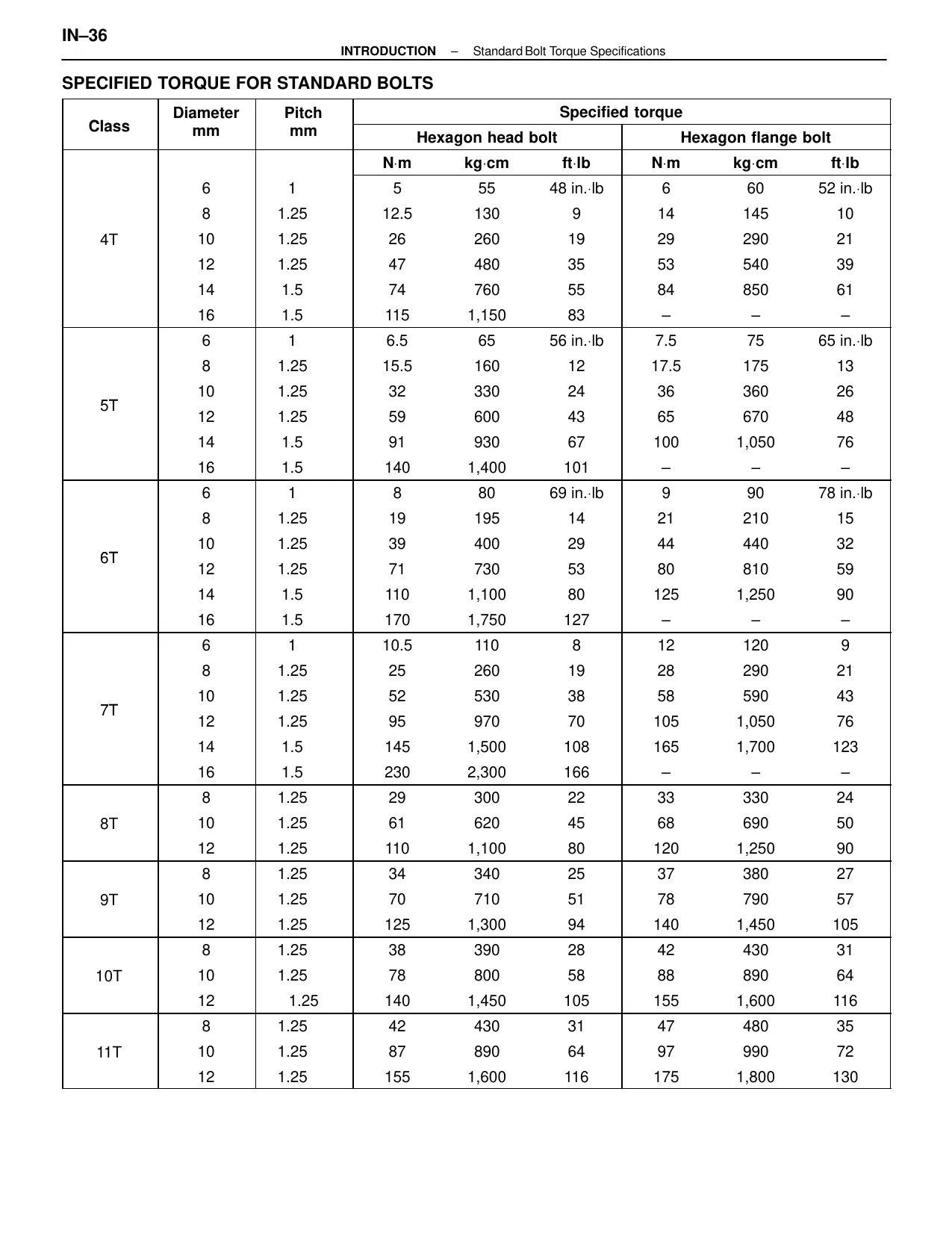

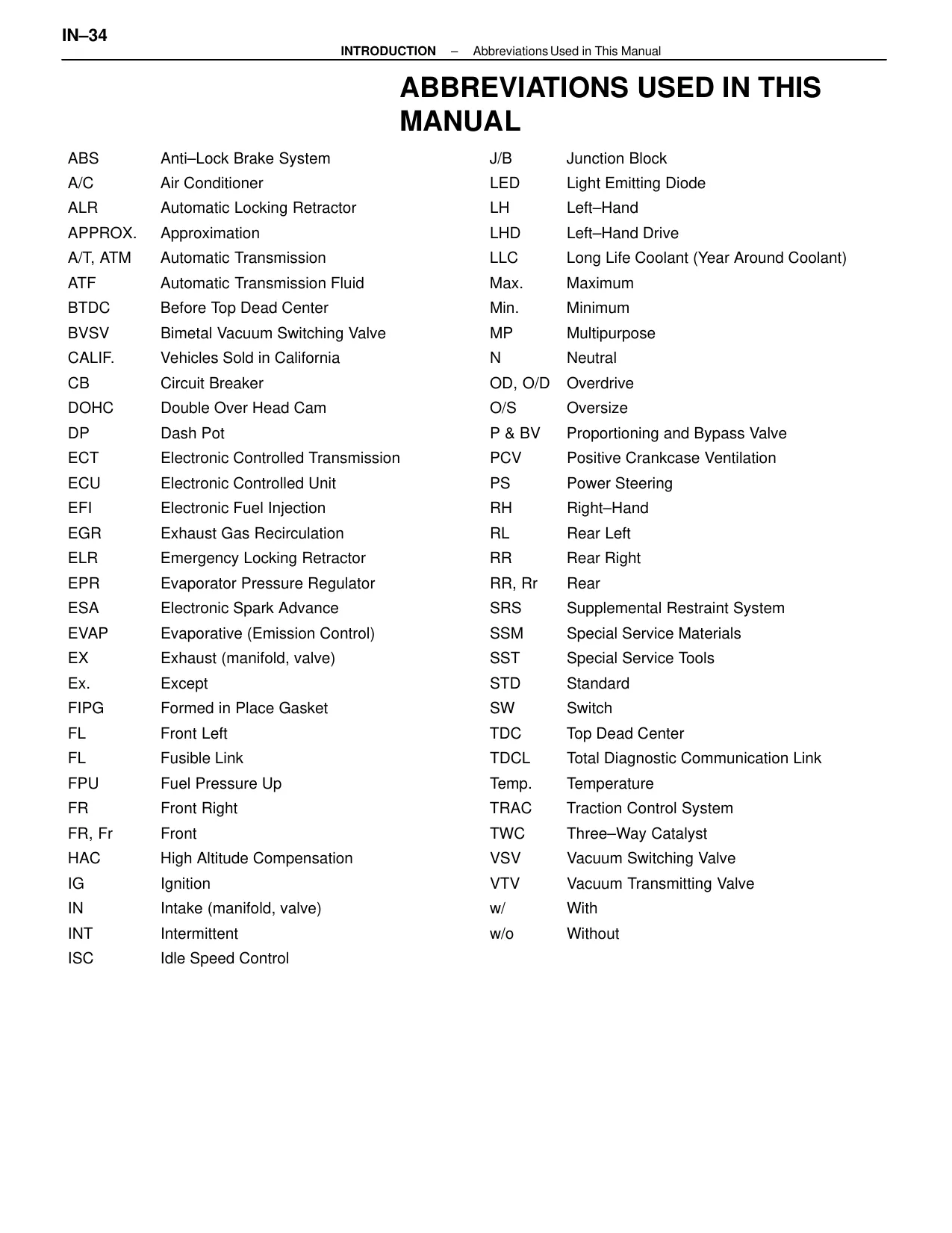

Lexus SC300/SC400 1992–2001 Service Manual Collection

The repair sections supply workshop procedures, while the collision and wiring manuals provide separate body-repair and electrical references. The bulletins add application-specific changes and service information.

Coverage varies by section rather than providing a uniform, year-by-year repair manual for the entire advertised range. Bulletin applications apply only to the vehicles and systems listed in each bulletin.

PDF Search, Bookmarks and Wiring Detail

Search and diagram navigation: Much of the text is searchable, but some specification tables and diagram labels are not included in text search. Embedded bookmarks organize the main sections, bulletins, and wiring material; some open an introductory or nearby page. Small wiring labels require zooming. The dedicated wiring diagrams remain sharp when enlarged, while some engine-diagnostic schematics have blurred lettering.

The ZIP contains one printable, 4,088-page PDF. The publication breakdown above includes the compilation cover, forewords, and section contents pages within that total.

Engine Repair, System Diagnosis and Body Work

These selected topics show the main workshop coverage. Additional material includes alternator and starter overhaul, plus service information for audio and mirror systems.

• 1UZ-FE engine repair: Step-by-step timing-belt service, engine removal and installation, cylinder-head and block disassembly, inspection, and reassembly.

• A340E automatic transmission: DTC diagnosis, shift schedules, stall, time-lag, line-pressure and manual-shift tests, assembly removal, valve-body removal and installation, and shift-lock checks.

• Brakes and chassis: Master-cylinder and booster service, SC400 front brakes, rear disc and parking brakes, ABS/TRAC diagnosis, steering overhaul, suspension, hubs, drive shafts, and differential repair.

• Automatic climate control: Sensor and servo diagnosis, ECU terminal checks, refrigerant recovery and evacuation, compressor and evaporator service, and R-12-to-R-134a retrofit information.

• Cooling and lubrication: Water-pump and thermostat service, electronically controlled hydraulic cooling-fan repair, oil-pressure testing, and oil-pump inspection.

• Body, electrical and SRS: Glass and moonroof work, lighting, power seats, wireless door locks, airbag diagnosis and replacement, and collision-related panel repair.

• SC300 wiring references: System schematics supported by connector, relay, ground-point, and power-source views in the dedicated 1992 JZZ31 wiring material.

The procedures are suited to experienced technicians with ECU diagnostic knowledge, precision-measuring equipment, and access to the specified Lexus special service tools.

Engine Inspection, Adjustment and Tools

The 1UZ-FE sections extend beyond tune-up to camshaft and valve work, bearing inspection, oil-clearance measurement, and final assembly. Related material covers EFI/ECT, ignition, emissions, exhaust, and routine maintenance.

Preparation pages and procedures identify Diagnosis Check Wire SST 09843-18020, valve-clearance tool SST 09248-55011, and propeller-shaft angle tool SST 09370-50010. A separate tool bulletin describes updated valve-clearance set 09248-55020, superseding 09248-55010.

Valve-adjustment notices address the easily scratched aluminum lifter and the risk of losing a shim into the oil pan or beneath the exhaust camshaft. Steering-gear instructions identify seal orientation and exposed rack or control-valve serrations as potential causes of seal-lip damage.

Fault Isolation and Transmission Limits

More than 100 diagnostic charts are supported by problem-symptom matrices, DTC tables, connector locations, and ECU terminal values. TDCL/DLC code checks, symptom simulation, input-signal verification, and actuator or solenoid tests help distinguish circuit faults from component faults before replacement.

The transmission material explains mechanical and hydraulic operation alongside electrical diagnosis. Valve-body inspection is referred to the separate 1994 A340E/A341E Automatic Transmission Repair Manual for Lexus SC400. Complete internal clutch-and-gear-train overhaul and manual-transmission overhaul are outside the included transmission coverage.

Hydraulic Fan and Climate-Control Diagnosis

The hydraulic cooling-fan section distinguishes the pump, motor, solenoid valve, and cooling fan ECU. Coverage includes bleeding, pressure testing, internal pump and motor inspection, oil-seal replacement, and control-circuit checks.

A/C diagnosis connects temperature-sensor and damper-position checks with servo, blower, compressor-lock, and control-assembly circuits. The bulletins add refrigerant and compressor-oil compatibility, leak-detection guidance, evaporator-odor treatment, and A/C control-assembly service parts.

Collision Repair, Wiring and Production Changes

The UZZ30 collision manual supplies structural dimensions, panel fit standards, steel identification, sealing and undercoating areas, and panel-replacement illustrations. It covers cutting and welding operations; painting procedures are excluded.

Named electrical references include Engine Control, ECT and A/T Indicator, Automatic Air Conditioner, ABS and Traction Control, Progressive Power Steering, and Theft Deterrent and Door Lock Control. Connector and ground-point views support tracing a circuit between the schematic and the vehicle.

Bulletins address rear spring bumpers, inner rear-view mirror supply parts, sunvisor retention, and suspension ball-joint inspection. Their production breaks and application tables help match revised components to the affected vehicle.

Follow the applicable isolation and hazard instructions before SRS, TRAC, brake, refrigerant, lifting, or electrical work. The airbag system retains backup energy, TRAC contains pressurized fluid, and A/C work requires suitable recovery equipment and compatible refrigerant oil.

Examples of Cold Valve-Clearance Specifications

The 1UZ-FE tune-up material specifies cold valve clearance of 0.15–0.25 mm (0.006–0.010 in.) for intake valves and 0.25–0.35 mm (0.010–0.014 in.) for exhaust valves. The accompanying adjustment material includes shim-selection formulas and charts tied to measured clearance and existing shim thickness.
