Malaguti Firefox F15 Service Manual
Addresses Firefox F15 systems including fuel tank, coolant reservoir, spark plugs, and electrical components. Complete maintenance and repair procedures with technical specifications and part numbers.

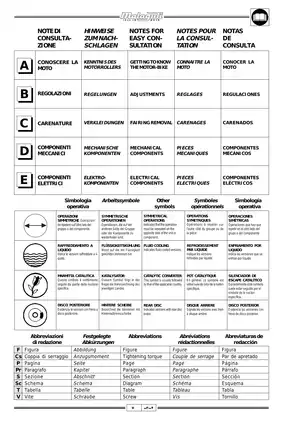

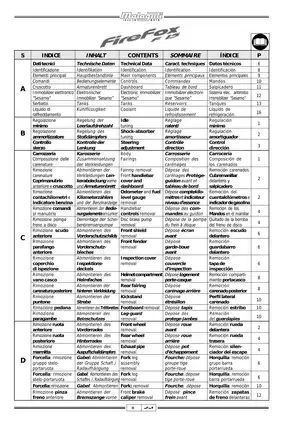

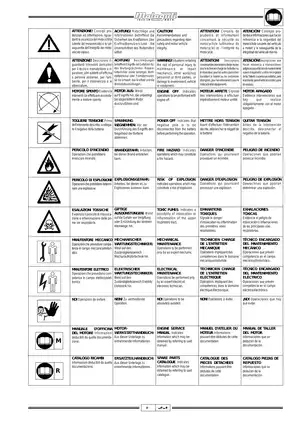

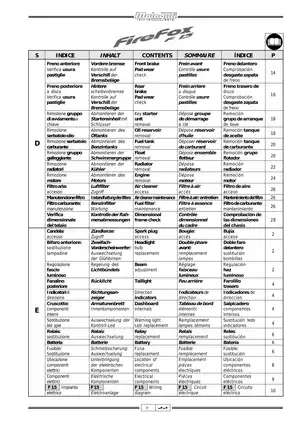

Manual Preview
Sample pages from the Malaguti Firefox F15 Service Manual manual
Purchase & Download
Models Covered & Key Technical Specifications
Malaguti Firefox F15 — 1998 Applied Digital Reference Suite | F15 Series Repository.
- Authorized Measurement Bounds: 49.3 cm³ (Minarelli 10 MA engine) is specified as the cylinder volume displacement Sequences.
- Published Current Rating: For optimal fuel storage, 7 liters (3 liter reserve) is measured at the tank capacity Requirements.
- Reference Heat Tolerance: The coolant system requires 1.1 liters (mixer oil 1.6 liters at 0.6 liter reserve) Baseline.
- Established Weight Data: Maximum dry weight reaches 96 kg (210.8 lbs) on the complete chassis Threshold.
- Measured Alignment Specs: Wheelbase distance is configured at 1268 mm (49.9 inches) from axle to axle Mapping.
- Core Resolution Data: Compression ratio governs 12:1 pressure chamber specification for ignition calibration Configuration.
Professional Workshop Service Manual & Technical Specifications
Thorough Maintenance Manual: Scooter Malaguti Firefox F15 System-Standards
Serial-Range: Malaguti Firefox F15 // Performance-Values: Service procedures / Fuel and cooling systems Logic // Performance-Values: Technical specifications, wiring diagrams, component assembly procedures.
| Performance-Element | Diagnostic-Logic | Architecture |
|---|---|---|
| Fairing and body systems | Complete removal and reinstallation guidance | Modular plastic component structure |
| Mechanical assemblies | Fork leg servicing and suspension procedures | Integrated suspension and frame systems |
| Electrical circuit documentation | Complete wiring diagrams and component mapping | 12V electrical network architecture |
Service procedures are grouped by body sections, cooling system maintenance, transmission components, and suspension framework specifications. The document covers mechanical component access procedures, covers fairing removal sequences, and provides electrical system channel documentation. Suspension service documentation covers fork oil level monitoring and shock absorber preload adjustment. Disassembly instructions are documented for wheels, fuel system components, radiator installations, and engine removal prerequisites.
Modular Interface
The manual contains detailed procedures for carburetor access and fuel tank removal with capacity documentation at 7 liters capacity with 3-liter reserve. Ignition system components are clearly identified, including the electronic immobilizer "SESAMO" anti-theft device with transponder activation procedures. Battery specifications are documented at 12V capacity with comprehensive charge verification and maintenance protocols.
Integrated Interface
Cooling system documentation covers radiator access procedures and expansion chamber maintenance with Q8 TOP FLUID specifications. Brake system sections include drum brake pin/cam assembly procedures, drum surface maintenance guidance, and disc brake reservoir level monitoring. Electrical component locations and relationships are systematically mapped throughout multiple sections.
Diagnostic Standard
The manual documents procedures for spark plug access and removal techniques, headlight beam adjustment methodology, and odometer transmission cable management. Transmission oil specifications reference T 35 80W lubricant requirements. Fork leg assembly procedures include detailed spring preload adjustment and internal component positioning instructions with proper torque documentation for structural alignment.
Precise Nexus
Direction indicator bulb replacement procedures and taillight component access are thoroughly covered. Dashboard internals documentation includes fuel level gauge positioning and instrument lamp specifications. Handlebar control removal sequences and key switch assembly extraction procedures provide comprehensive mechanical access roadmaps.
Engineered Threshold
The document includes comprehensive wiring diagram representations showing complete electrical circuit architecture. Component electrical specifications range from 12V 4A generator ratings to individual lamp wattage documentation (12V-10W direction indicators, 12V-21W stop lights). Lubrication requirements are systematically documented across transmission systems, fork components, brake mechanisms, and mixer oil specifications to ensure proper system performance and longevity.
The manual documents torque specifications for critical fasteners to ensure proper assembly procedures and mechanical integrity throughout the vehicle structure.
