2002 John Deere SST15, SST16, SST18 Spin-Steer Lawn Tractor Technical Manual (P/N TM1908)

340 Pages • Printable PDF • 62.48 MB • Download

4.6starstarstarstarstar_half(5)
$25.79 Instant Download / No Shipping Fees
or

Credit/debit card, Apple Pay or Google Pay

30-day refunds for defective files or manuals not as described. Refund policy.

print
Save & print
Keep a copy on your device
lock
Secure Payment
Stripe

John Deere Models Covered & Key Technical Specifications

Models: SST15, SST16, SST18

Model Year: 2002

Serial Numbers: Front steering rod adjustment — early tractors with fixed rod: SST16 (- M0SS16A012946), (- M0SS16B011727); SST18 (- M0SS18C015073). Later tractors with factory-adjustable rod: SST16 (M0SS16A012946 -), (M0SS16B011727 -); SST18 (M0SS18C015073 -).


  • Engine Displacement: 426 cm3 (SST15), 480 cm3 (SST16), 570 cm3 (SST18)

  • Horsepower: 11.2 kW (15 hp) to 13.4 kW (18 hp)

  • Engine Configuration: Kohler CV15S-41611 (SST15, 1-cylinder), Briggs & Stratton Vanguard V-Twin 303777 (SST16, 2-cylinder) and 350777 (SST18, 2-cylinder)

  • Drive System: Tuff Torq K51 Hydrostatic Transaxle, Belt Drive, Variable Speed

  • PTO Drive: Electric Clutch

  • Battery: 12V, 160 CCA

  • Travel Speed: 0–5.6 mph (Forward), 0–5 km/h (Reverse)

John Deere Manual Features & Selected Content Preview

John Deere’s technical manual (P/N TM1908), May 2002 edition, covers the 2002 SST15, SST16, and SST18 Spin-Steer lawn tractors. This is the North American version.

Searchable PDF and Wiring Diagram Views

Search, bookmarks, and diagram detail: The PDF has searchable text and embedded section and procedure bookmarks. Some wiring bookmarks open split detail views rather than the full diagram. Small wire codes and connector labels are readable when zoomed.

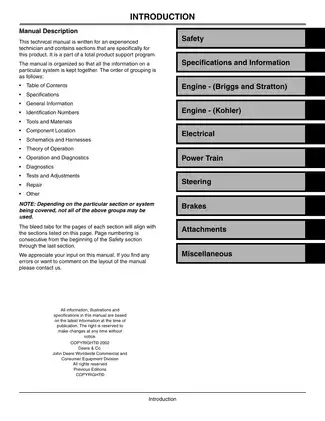

Supplied as one printable, English-language 340-page PDF, including the 322-page numbered manual body, eight additional split schematic/harness views, four cover and introductory pages, and a six-page index.


Engine, Spin-Steer, and Mower Deck Service

These selected service topics outline the manual’s coverage. Other documented work includes fuel-tank removal and hood service.

  • Engine repair: Separate Kohler and Briggs & Stratton procedures cover engine removal, cylinder-head work, valve inspection, piston and crankshaft service, and starter repair.

  • Electrical diagnosis: Model-specific main schematics, wiring harness views, and circuit tests cover starting, ignition, charging, forward/reverse control, and PTO/RIO operation.

  • Hydrostatic power train: Transaxle removal, internal propel-unit and steering pump/motor disassembly, oil service, bleeding, and neutral adjustment procedures.

  • Spin-Steer controls: Vacuum-actuator troubleshooting, microswitch checks, steering creep and tracking adjustments, and separate front-rod procedures for early and later tractors.

  • Brakes and chassis: Parking-brake tests, brake-pedal and linkage repair, front wheel-bearing service, and front axle removal and installation.

  • Mower decks and lift: Repair procedures for 42M, 42 All Purpose, and 48C decks, including belt replacement, spindle service, blade timing, and lift adjustment.

Written for experienced technicians, with diagnostic procedures that call for electrical test equipment and engine service tools.

Engine Inspection and Repair

The Kohler CV15S section covers hydraulic valve lifters and automatic compression release. The Briggs & Stratton 303777/350777 section includes valve-clearance adjustment and cylinder-to-cylinder compression assessment, alongside step-by-step engine removal and internal repair procedures.

Cylinder-bore, piston, ring, valve, and bearing inspection data support decisions about component reuse or replacement. Metric and inch fastener charts distinguish dry and lubricated conditions, while component-specific torque specifications accompany the repair sections.

Machine PIN, engine serial-number, and transaxle identification pages support component matching before parts are ordered.

Steering Fault Isolation and Circuit Testing

Structured fuel-system, hydrostatic-transaxle, and lift information supports daily workshop maintenance. For steering complaints, the operational checkout distinguishes neutral creep, tracking drift, and unintended spin-turning, then directs the technician to the relevant vacuum, switch, or linkage checks.

The steering-system operation views explain how the sector gear, vacuum diaphragms, and transaxle steering mechanism work together. Separate adjustment procedures address fixed and factory-adjustable front steering rods.

The W1 Main Electrical Schematics and Wiring Harness views identify circuit connections and wire codes. The Forward/Reverse Circuit Electrical Schematic and PTO With RIO Circuit Schematic accompany system-specific diagnostic checks.

Transaxle Disassembly and Assembly

Power-train coverage extends inside the transaxle, with illustrated procedures for the propel unit, steering pump and motor, axle gearing, seals, and case assembly. The illustrations show bearing-race orientation, swashplate engagement, and filter placement.

Oil drain-and-fill instructions lead into the transaxle bleeding procedure. The freewheel-system warning explains that operating its valve with the engine running can damage the hydrostatic transmission.

Deck Timing, Spindles, and Lift Components

The attachment sections distinguish the timed 42M mulching deck from the 42 All Purpose and 48C designs. Procedures cover deck leveling, primary and secondary belt service, spindle disassembly, blade balancing, and lift-component repair.

The 42M instructions warn that excessive timing-belt tension can damage the belt, while incorrect belt-guide clearance can damage the belt or blades.

Follow the manual’s safety precautions, including magneto grounding for cylinder leakdown tests and secure support during raised-tractor work.

Valve Clearance and Crankcase Vacuum: Specification Preview

For the SST16 and SST18 Vanguard engines, the valve-clearance adjustment section specifies 0.10–0.16 mm at the prescribed crankshaft position beyond compression TDC.

The SST15 Kohler crankcase-vacuum test specifies a minimum of 10.2 cm (4 in.) of water at 3400 rpm with the engine at normal operating temperature. Its results section links low vacuum to checks of the breather, seals, and internal engine wear.
