John Deere LX255-LX288 Lawn Tractor Comprehensive Technical Manual (TM1754) | 600-Page Guide | OEM Specs

John Deere LX255, LX266, LX277, LX277AWS, LX279 & LX288 Technical Manual - 2003 Edition

Ensure maximum uptime and operational safety for your John Deere LX Series with this definitive factory-level technical intelligence. This manual provides the critical diagnostic logic and OEM repair procedures required to maintain the complex powertrain and engine configurations of these high-performance lawn tractors. Relying on this verified technical data is the only way to safeguard your investment, ensuring repairs are performed to factory standards rather than following unreliable, generic internet advice that can lead to catastrophic component failure.

Model & Engine Configuration Mapping

This North American Edition (TM1754) provides exhaustive technical coverage for the following specific machine and engine entities:

• LX255 & LX266: Powered by Kohler Command CV15S (15 hp) and CV16S engines.
• LX277 & LX277AWS: Featuring the Kawasaki FH500V-BS11 (17 hp) V-Twin engine.
• LX279: Specialized coverage for the Kawasaki FD501V-AS04 Liquid-Cooled V-Twin.
• LX288: Comprehensive dual-engine coverage for Briggs & Stratton Vanguard 350777-1154 (SN -090000) and Kawasaki FH580V (SN 090001-Up).

Strategic Investment & Operational ROI

• Eliminate Costly Trial-and-Error: Use exact factory-specified air gaps, resistance values, and voltage benchmarks to avoid unnecessary part replacements.
• Factory-Spec Precision: Prevent gasket failures and structural damage by strictly adhering to OEM torque sequences and pressure specifications.
• Maintain Professional Standards: Performing maintenance to John Deere technical standards preserves machine resale value and ensures long-term powertrain reliability.

Document Metadata

• Print Number: TM1754 (January 2003)
• Page Count: 600+ Pages
• File Format: High-Resolution, Searchable PDF

Diagnostic Depth & System Logic

This manual utilizes a professional circuit-by-circuit diagnostic approach, ensuring a logical flow from "Theory of Operation" to "Operation and Diagnostics." It provides integrated troubleshooting for the Kanzaki hydrostatic transaxles, AWS (All-Wheel Steering) synchronization, and complex electrical safety interlock systems, allowing technicians to identify the root cause of a failure before removing components.

Visual Navigation & Schematic Quality

Technical accuracy is supported by high-resolution multi-page electrical schematics and detailed hydraulic flow diagrams. Visual aids include cross-sectional views of critical assemblies, such as the steering gear sector and mower deck spindle bearings, ensuring precise disassembly and reassembly without damaging sensitive internal parts.

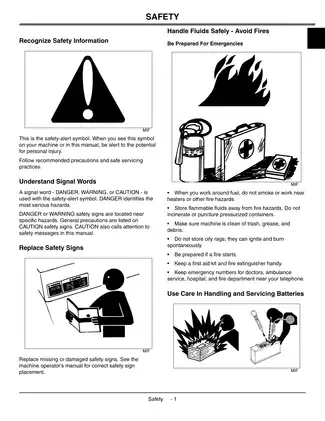

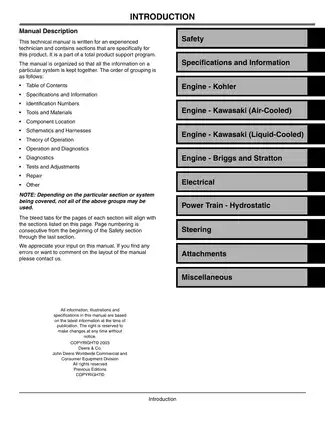

Detailed Table of Contents

• Specifications & General Information: Fuel, lubricants, and machine-wide fastener torques.
• Engine Systems: Individual sections for Kohler, Kawasaki (Air/Liquid Cooled), and B&S Vanguard.
• Electrical System: Wiring harnesses, component testing, and serial-number specific schematics.
• Power Train: Hydrostatic transaxle repair, adjustments, and theory of operation.
• Steering & Attachments: Detailed repair for 2WS/AWS steering and 38-inch to 54-inch mower decks.

Vital Maintenance Benchmarks

FAQ

Does this manual cover the specific serial number range and engine for my John Deere machine? This comprehensive technical manual supports the full spectrum of the LX Series, including the LX255, LX266, LX277, LX279, and LX288 models. It provides deep-data coverage for various powertrain configurations such as the Kohler Command CV15S (LX255), the liquid-cooled Kawasaki FD501V (LX279), and the Briggs & Stratton Vanguard 350777 (LX288). To ensure exact applicability, technicians can verify the 13-digit Product Identification Number (PIN) located on the right-hand side frame just below the engine compartment, which is critical for matching serial-specific updates like the LX288 stator change at SN 090001.

What is the specific torque required for the cylinder head to prevent combustion leaks? Maintaining cylinder head integrity is vital for engine compression and longevity. For the Kohler CV15S engine, the manual specifies a two-step tightening sequence: an initial torque of 20 N•m (177 lb-in.) followed by a final torque of 41 N•m (30 lb-ft). On Kawasaki air-cooled models like the FH500V, the final torque requirement is 25 N•m (221 lb-in.) applied in a cross-pattern sequence. Adhering to these exact technical values ensures uniform gasket crush and prevents the warping of head surfaces, which must maintain a flatness tolerance of 0.076 mm (0.003 in.) or less.

How do I troubleshoot an LX series engine that cranks but refuses to start? Troubleshooting starts with verifying the electrical and fuel delivery systems. You must confirm the battery maintains 12.4 volts or higher to ensure the starter motor reaches the minimum cranking speed of 350 RPM. If the engine still fails to fire, a critical diagnostic step is testing the fuel shutoff solenoid for an audible click when the key is turned to the run position; a faulty solenoid prevents fuel from entering the float bowl. Additionally, you should perform a spark test to verify a strong blue spark across a 1.0 mm (0.040 in.) gap for Kohler engines or a 0.75 mm (0.030 in.) gap for Kawasaki models.

What are the required maintenance procedures and fluid capacities for the hydrostatic transaxle? To protect the Kanzaki K62 hydrostatic transaxle from premature failure, the manual dictates the use of John Deere Low Viscosity Hy-Gard (JDM J20D) oil. The system requires a capacity of 2.5 L (2.7 qt) and must be carefully checked for "neutral creep," which is adjusted via the neutral return arm bearing. If the transaxle has been serviced, you must follow the specific bleeding procedure to purge air from the system, as air bubbles can cause erratic speed or a complete loss of ground speed during operation.

Can I use this manual for shop-floor repairs and complex system identification? The manual is optimized for high-utility technical use, featuring high-resolution schematics and exploded views that remain clear when zoomed in on digital devices. It includes specific "System Identifiers" such as the 15-amp stator unregulated voltage output test, which should read a minimum of 28 volts AC at fast idle for Kohler-powered units. This level of technical granularity allows owners to pinpoint failed components—like identifying if an ignition module air gap has drifted from its required 0.25 mm (0.010 in.) setting—without the guesswork involved in generic repair guides.
