1999 John Deere 524D, 724D, 826D, 828D, 1032D Snowblower Technical Manual (P/N TM1612)

John Deere technical manual TM1612 (October 1999) covers the 524D, 724D, 826D, 828D, and 1032D walk-behind snowblowers with Tecumseh Snow King engines. This revision replaces the July 1996 edition.

• Engine repair: Engine removal, internal inspection, cylinder-head service, valve-seat reconditioning, valve lapping, cylinder reboring, and recoil-starter repair, with model-specific specifications.

• Fuel system and governor: Carburetor removal, overhaul of non-CARB/EPA-certified versions, static governor adjustment, idle-speed checks, and crankcase breather inspection.

• Electrical diagnosis: CDI ignition, headlight-circuit troubleshooting, alternator testing and stator replacement, plus optional electric-starter disassembly and component testing.

• Friction drive: Friction disk, carrier, friction plate, axle, and reduction-shaft service, with clutch, drive-chain, and speed/shift-linkage adjustments.

• Auger and impeller: Gearbox disassembly, inspection and assembly, impeller-bearing replacement, drive-belt service, and impeller-brake adjustment.

• Chute and housing: Deflector chute cable and clutch replacement, scraper-blade and skid-plate adjustment and replacement, and drive/auger housing separation and reassembly.

Written for experienced technicians, this manual assumes familiarity with workshop service and the measuring equipment specified for each procedure.

Engine Diagnosis and Internal Repair

Engine coverage distinguishes the HSSK50 in the 524D, OHSK70 in the 724D, HMSK80 in the 826D/828D, and HMSK100 in the 1032D. The 724D has separate rocker-arm, pushrod, and automatic compression-release procedures.

Diagnostic tables connect symptoms with test locations, normal results, and follow-up checks. The illustrated Cylinder Leakdown Test specifies the JT03502 test kit and helps separate valve leakage from piston-ring or cylinder problems before teardown. Piston and Rings Wear Analysis illustrations address scoring, deposits, and abnormal wear.

Service data cover crankshaft end play, valve clearances, and engine break-in lubrication. Component-specific tightening specifications are supplemented by metric and inch torque tables.

The 1032D connecting-rod inspection distinguishes serial numbers through 9274 from 9275 and above. The cylinder-deglazing procedure excludes the 524D, whose cylinder lacks a cast-iron sleeve.

Carburetor Variants and Governor Service

Carburetor disassembly and assembly apply to non-CARB/EPA-certified versions of the 524D, 826D, 828D, and 1032D. The 724D section covers removal and installation of its certified carburetor; disassembly or adjustment is reserved for factory-trained technicians authorized to service it.

Governor-shaft removal notes explain how twisting the shaft can enlarge the crankcase-cover bore, leaving a replacement shaft loose.

Ignition, Lighting, and Electric Starting

The Ignition System illustration shows the CDI grounding connections and the headlight/stator arrangement for the 826D, 828D, and 1032D. Diagnostics cover key and stop switches, flywheel-key inspection, module air-gap adjustment, and alternator output. The sealed CDI module is replaced if defective.

The optional 120-volt starting motor has an exploded component view and procedures for brush, armature, commutator, and field-coil testing. Recoil-starter coverage includes spring inspection and rope replacement.

Friction Drive, Axles, and Serial Breaks

Primary Drive and Secondary Drive exploded views distinguish the direct axle gearing of the 524D/724D, the 826D chain drive, and the differential-equipped 828D/1032D. Differential-speed tables, belt-routing illustrations, and drive-belt tensioner inspections support drivetrain service.

For the 828D/1032D, speed/shift-linkage adjustments are separated at serial number 190001, alongside the serial-specific engine removal and installation procedures. Differential-lock operation is explained, but worn or damaged differential internals require replacement of the complete unit.

Friction-disk service notes warn that oil or grease can damage the rubber contact surface.

Auger Gearboxes and Discharge Controls

Gearbox procedures distinguish the cast-iron housing on the 828D/1032D from the aluminum case halves on the smaller models. They cover worm gears, shafts, bearings, seals, and reassembly checks. High-speed impeller service and early/late deflector-cable arrangements are also illustrated.

The 828D/1032D impeller-brake procedure is reserved for an authorized repair person. Follow the manual's precautions for rotating augers and accidental starting.

Selected Piston Ring and Valve Inspection Values

These examples are a small selection of the engine inspection specifications in the manual.

For ring inspection in a serviceable cylinder bore, the listed end gap is 0.254–0.508 mm for the 524D and 0.178–0.432 mm for the 724D.

Standard intake valve stem diameter is 7.85–7.87 mm for the 826D, 828D, and 1032D. The valve-inspection section distinguishes standard and oversize dimensions.

PDF Navigation and Included Pages

Text search and illustrated references: Searchable text and embedded bookmarks provide access to the manual's sections and index. Labels in the ignition and starter overview illustrations are readable at normal viewing size.

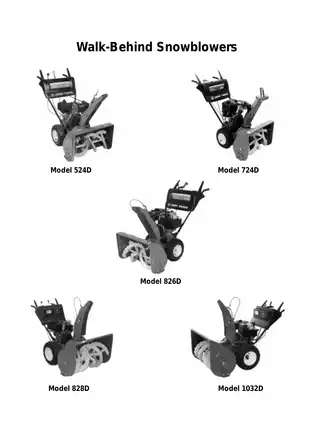

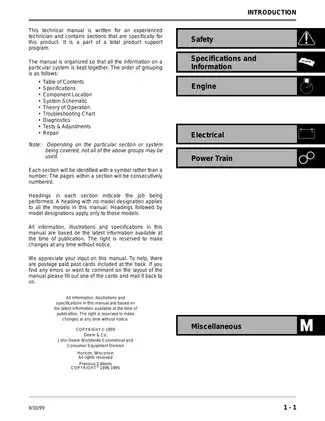

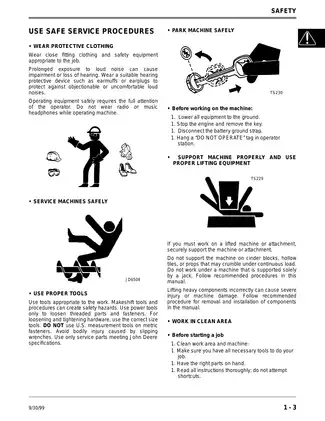

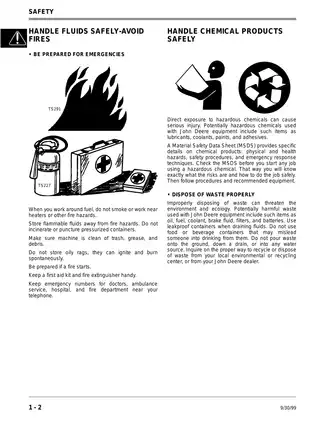

Supplied as one printable, English-language PDF with 218 pages. The total includes the title page, one model-overview page, four notes pages, and an eight-page index.
