2002–2005 John Deere 180B, 220B, 260B Walk-Behind Greensmower Technical Manual (P/N TM2004)

John Deere technical manual TM2004 (DEC05), North American Version, covers the 180B, 220B, and 260B walk-behind greensmowers powered by the Honda GX120 K1LJD2 engine.

• Engine repair: Engine removal, cylinder-head and valve service, crankshaft inspection, piston and connecting-rod repair, and recoil starter disassembly and assembly.

• Fuel system and governor: Fuel tank and carburetor removal, carburetor cleaning and inspection, float-level checks, and governor adjustments.

• Electrical troubleshooting: Ignition diagnosis, spark and ignition-coil tests, Run/Off switch testing, wiring diagrams, and a wire color abbreviation chart.

• Power train: Drive belt replacement and adjustment, differential gear case disassembly and assembly, traction roller service, and drive chain tension checks.

• Cutting unit: Backlapping, reel and bed knife grinding, cutting height adjustment, and separate reel removal and installation procedures with and without a Greens Tender Conditioner (GTC).

• Controls and brakes: Operator presence bail adjustment, clutch and throttle control service, handlebar repairs, park brake diagnosis, and brake cable and band replacement.

This manual is written for experienced technicians; its diagnostic and internal repair procedures call for the specified test equipment and measuring tools.

Engine Diagnosis and Internal Repair

Are you dealing with a no-start condition, overheating, or poor running at low or high engine speed? The diagnostic symptom tables connect these complaints to fuel, ignition, compression, governor, and cooling-system checks. Separate troubleshooting coverage addresses excessive oil and fuel consumption.

Internal engine repair extends to valve guide replacement, valve seat reconditioning, camshaft and tappet inspection, and piston ring wear analysis. Cylinder block inspection, deglazing, and reboring procedures include specifications for standard and oversize components.

The Lubrication System Operation drawing and accompanying explanation cover the Honda engine’s splash-lubrication system. Cooling-system information explains airflow through the blower housing and across the cylinder head and block.

Carburetor service includes pilot screw and limiter cap replacement. The manual restricts emissions-carburetor repair, jet replacement, and adjustment to factory-trained technicians authorized to service CARB/EPA-certified emissions carburetors.

Specified diagnostic tools include the JT07270 digital pulse tachometer, JDM-59 compression gauge, and D-05351ST spark tester.

Ignition Circuits and Fault Isolation

The Main Schematic and Main Wiring Harness identify the ignition coil, spark plug, Run/Off switch, and ground connections. Additional ignition-operation diagrams show current flow during spark generation and engine shutdown.

The transistor-controlled magneto explanation supports the diagnostic distinction between an engine that will not start and one that will not shut off. Circuit checks address shorts, open circuits, high resistance, and grounding faults, alongside flywheel magnet and switch continuity tests.

Differential, Traction Rollers, and Controls

The Drive Belt and Differential System view explains how power reaches the traction rollers and cutting reel. Troubleshooting covers loss of drive, noisy operation, erratic speed, reduced ground speed, and pulling to one side.

Separate traction roller assembly views distinguish full hex axle and partial hex axle construction, including earlier snap-ring and later nut-retained sprockets. These distinctions help match the assembly before selecting the relevant service information.

Differential gear case assembly notes identify the risk of damaging shaft seals during cover installation. Control-system coverage also includes cable routing, operator presence bail operation, and park brake checks after service.

Reel, Bed Knife, and GTC Service

Cutting-unit diagnosis addresses marcelling, streaking, changing cutting height, and poor cutting performance. Grinding and backlapping information explains how edge condition, roller alignment, and reel-to-bed knife clearance affect the cut.

The manual explains why excessive reel-to-bed knife contact generates heat and can distort the bed knife. Reel assembly exploded views support bearing and seal inspection, while separate procedures account for machines equipped with a GTC. Adjustment coverage includes the optional rotary brush.

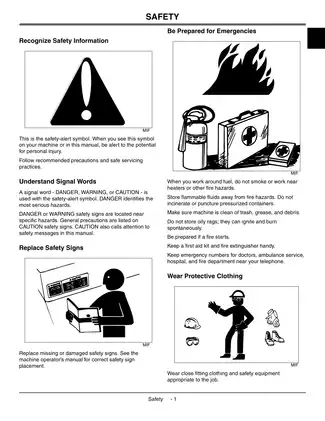

Safety note: Review the manufacturer’s precautions for rotating reels, GTC blades, sharp cutting edges, and securely supporting the mower before service.

A Preview of Engine Clearances and Fastener Data

These examples are a small selection of the engine specifications included in the manual.

Cylinder-head service specifies an initial cap screw torque of 12 N·m followed by a final torque of 24 N·m, with the tightening sequence shown in the repair section.

For a cold engine, intake valve clearance is 0.15 ± 0.02 mm. Internal inspection data lists standard piston-to-cylinder clearance at 0.015–0.050 mm, alongside separate wear limits and component measurements.

Searchable Text, Bookmarks, and Printable Pages

Finding procedures and reading circuits: Searchable PDF text and embedded bookmarks provide access to the manual’s sections and repair topics. Small wire numbers and circuit labels are clearly readable when enlarged.

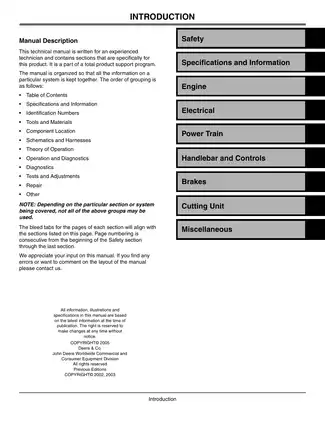

Supplied as one downloadable, printable 181-page PDF in English. The total includes the original cover and introductory pages, blank and separator pages, and the three-page index.
