Arctic Cat Prowler 550/650/700/1000 UTV 2009 Service Manual Set (P/N 2258-391)
344 Pages • Printable PDF • 100.99 MB • Download

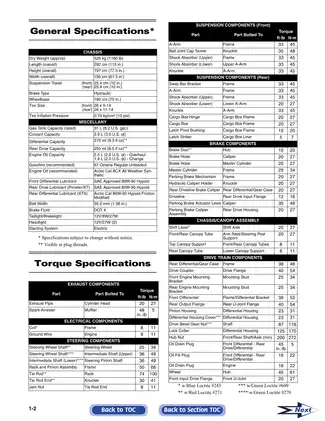

Arctic Cat Models Covered & Key Technical Specifications
Models: Prowler XT 650, Prowler XTX 700, Prowler XTZ 1000
Sub-models / Variants: Prowler, XT, XTX, XTZ, 650 cc, 700 cc, 1000 cc
Model Year: 2009
-
Dry Weight: Prowler/XT/XTX: approximately 526 kg (1160 lb); XTZ: approximately 564 kg (1243 lb)
-
Tire Inflation Pressure: 0.70 kg/cm² (10 psi)
-
Suspension Travel: 25.4 cm (10 in.)
-
Gas Tank Capacity: 31 L (8.2 U.S. gal.)
-
Engine Oil Capacity (Change): Prowler/XT/XTX: 1.9 L (2.0 U.S. qt); XTZ: 2.4 L (2.5 U.S. qt)
-
Coolant Capacity: 2.9 L (3.0 U.S. qt)
-
Brake Fluid: DOT 4
-
Drive Bevel Gear Nut Torque: Prowler/XT/XTX: 118 N-m (87 ft-lb); XTZ: 108 N-m (80 ft-lb), with green Loctite #609
-
Hub Nut Torque: 272 N-m (200 ft-lb) minimum
Arctic Cat Manual Features & Selected Content Preview
| Publication | Pages |
|---|---|
| Arctic Cat 2009 Prowler / Prowler XT / Prowler XTX Service Manual — 550/650/700 coverage; P/N 2258-391 | 175 |
| Arctic Cat 2009 Prowler XTZ Service Manual — 1000 coverage; P/N 2258-399 | 169 |
Use the manual for the applicable powertrain: the carbureted and EFI configurations have different fuel-system, ignition and engine-service procedures. The XTZ publication provides its own twin-cylinder repair information.
These are service manuals, not illustrated parts catalogs. Replacement-part numbers, quantities and descriptions require the appropriate Illustrated Parts Manual.
PDF Search, Bookmarks and Wiring Detail
Chapter navigation and diagram detail: The service chapters support text search, and embedded bookmarks organize both manuals by system. The three wiring sheets are not text-searchable; their small connector, pin and wire-color labels require zooming.
Both English-language manuals are combined in one printable, 344-page PDF. That total already includes two contents pages and three color wiring sheets.
Engine, Fuel-System and Driveline Repair
The following selected coverage highlights major workshop tasks rather than reproducing the full contents. Other topics include storage preparation and headlight aiming.
-
Engine and transmission: Step-by-step procedures for powertrain removal, cylinder-head and valvetrain service, piston/cylinder inspection, cam timing, clutch repair, crankcase separation, crankshaft checks and transmission disassembly.
-
Fuel systems: Carburetor disassembly and inspection, throttle-body removal, fuel-pump and fuel-level-sensor testing, with separate carbureted and EFI troubleshooting.
-
Lubrication and cooling: Oil-pump pressure testing, model-specific oil-cooler service, radiator removal, thermostat checks, fan testing and water-pump replacement.
-
Electrical diagnosis: Battery, PDM and switch tests; ignition, charging and starter-circuit diagnosis; CKP, ECT and tilt-sensor checks; ignition-timing verification, TPS adjustment and ECU error codes.
-
Driveline and brakes: Differential teardown, gear-contact and backlash adjustment, drive-axle/CV-boot repair, hub and universal-joint service, brake bleeding, pad replacement and burnishing.
-
Suspension, steering and body: A-arm and shock service, steering-shaft and knuckle work, wheel alignment, body-panel removal and cargo-box service.
-

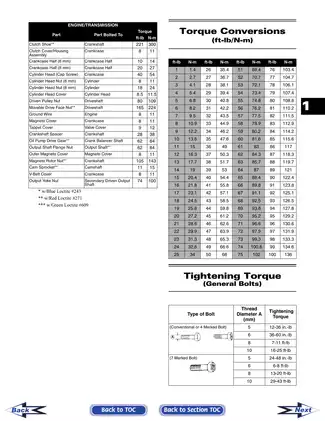

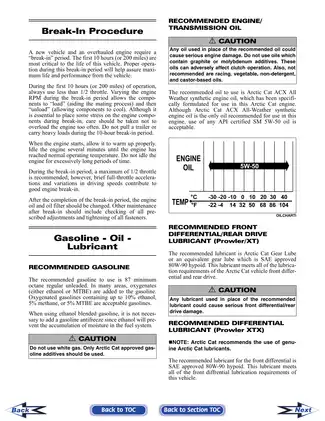

Workshop reference data: Maintenance schedules, troubleshooting charts, component torque tables, lubricant and capacity data, wear limits, clearances, electrical test specifications and component illustrations.
The repair depth, press work, measuring equipment and specified pullers make these manuals suited to professional technicians and experienced owners with a properly equipped shop.
Engine Teardown and Variant Differences
The in-frame service notes help establish how much dismantling a repair requires. Top-side and side-cover work can be performed with the powertrain installed; center-crankcase service requires engine/transmission removal and the preceding teardown.
The smaller-engine manual distinguishes spiral from net-forged secondary gears, with separate setup information. The XTZ procedures address front- and rear-cylinder cam timing individually and provide their own secondary-output-gear and crankcase instructions.
Replacement assemblies: The driven pulley, water pump, front-drive actuator, starter motor and ECU are treated as replacement units when defective. Hydraulic brake calipers and the master cylinder are also replaced as assemblies rather than internally rebuilt.
Carburetor, EFI and Electrical Fault Finding
The 650 procedures cover the Keihin CVK36 carburetor, electric choke, idle adjustment and vacuum-pulse fuel pump. The 550/700 and XTZ sections instead address EFI throttle bodies, sensors and electric fuel pumps; oil-cooler service is included for the applicable configurations.
The EFI troubleshooting sections connect starting complaints and a flashing EFI indicator with fault-code retrieval and component tests. This provides a way to investigate fuel delivery, sensor signals and wiring before attributing a fault to the ECU.
Electrical test equipment is specified by system. For example, the 650 ignition-coil peak-voltage tests require an adapter that the 550/700 coil tests do not use.
Shift Controls and Rear-Drive Arrangements
The XT shift-linkage procedure differs from the cable-operated Prowler/XTX arrangement. Rear-drive instructions distinguish the Prowler/XT gear case, XTX rear differential and XTZ rear gear case, keeping component selection and service procedures tied to the applicable configuration.
Schematics, Special Tools and Repair Cautions
Color harness drawings include Prowler 550/700 schematic 0743-203, Prowler 650 schematic 0742-225 and Prowler 1000 schematic 0743-659. The Keihin carburetor exploded view, countershaft component layout and bevel-gear tooth-contact/shim illustrations support assembly identification and setup.
Engine tooling includes crankcase separator/crankshaft remover 0444-009, magneto rotor remover set 0444-206 and XTZ secondary gear drive holder 0444-253. Electrical and driveline references identify test plug/error-code list 0444-216, pinion gear/shaft removal tool 0444-127 and U-joint separator 0444-128.
The XTZ timing instructions identify loose cam chains and loss of the cam-sprocket alignment pin as causes of severe engine damage. Incorrect countershaft component or CV-joint bearing-ring orientation can damage the transmission or axle assembly.
Observe the manuals’ vehicle-support, fuel-pressure, brake-service and electrical-isolation precautions during repair.
Preview: Cold Valve-Clearance Specifications
Both manuals specify cold-engine valve/tappet clearances of 0.1016 mm (0.004 in.) for the intake valves and 0.1524 mm (0.006 in.) for the exhaust valves. The associated sections describe feeler-gauge and valve-adjuster methods, with separate front- and rear-cylinder positioning for the XTZ.
