- 2004 Arctic Cat Bearcat 570 - Engine: 565 cc / 34.5 ci, 2-stroke, 2 cylinders, Horizontal In-line, Reed Valve, carburetor
- 2004 Arctic Cat Firecat 500 - Engine: 499 cc / 30.4 ci
- 2004 Arctic Cat Firecat 500 Sno Pro - Engine: dito
- 2004 Arctic Cat Firecat 600 - Engine: 599 cc / 36.6 ci, 118 bhp / 88.1 KW, 2-stroke, liquid cooled, 73.8 / 2.91 x 70 / 2.76, Reed Valve, Horizontal In-line
- 2004 Arctic Cat Firecat 600 Sno Pro - Engine: dito
- 2004 Arctic Cat Firecat 600 EFI (EB) - Engine: dito
- 2004 Arctic Cat Firecat 600 EFI EXT - Engine: dito
- 2004 Arctic Cat Firecat 600 EFI - Engine: dito
- 2004 Arctic Cat Firecat 600 EFI Sno Pro - Engine: dito
- 2004 Arctic Cat Firecat 700 - Engine: 698 cc / 42.6 ci, dito
- 2004 Arctic Cat Firecat 700 Sno Pro - Engine: dito
- 2004 Arctic Cat Firecat 700 EFI EXT - Engine: dito
- 2004 Arctic Cat Firecat 700 EFI - Engine: dito
- 2004 Arctic Cat Firecat 700 EFI Sno Pro - Engine: dito
- 2004 Arctic Cat King Cat 900 - Engine: 862 cc / 52.6 ci, 2-Stroke, 2 cylinders, Reed Valve, Carburetor
- 2004 Arctic Cat Mountain Cat 570 - Engine: 565 cc / 34.5 ci, 2 cylinders, 2-stroke, Reed Valve
- 2004 Arctic Cat Mountain Cat 600 EFI - Engine: 599 cc / 36.6 ci, fuel Injected, dito
- 2004 Arctic Cat Mountain Cat 800 EFI - Engine: 785 cc / 47.9 ci, 140 BHP / 104.5 KW, 2-Stroke, liquid cooled, Gas / Oil Injected, Horizontal In-line
- 2004 Arctic Cat Mountain Cat 900 - Engine: 862 cc / 52.6 ci, dito
- 2004 Arctic Cat Pantera 550 - Engine: 550 cc / 33.6 ci, dito
- 2004 Arctic Cat Pantera 600 EFI - Engine: 599 cc / 36.6 ci
- 2004 Arctic Cat Pantera 800 EFI - Engine: 785 cc / 47.9 ci, 140 BHP / 104.5 hp, 2-stroke, 2 cylinders, liquid cooled, Horizontal In-line, Reed Valve, Gas / Oil Injected
- 2004 Arctic Cat Panther 370 - Engine: 367 cc / 22.4 ci, 2-stroke, 37 bhp / 27.6 kw, dito
- 2004 Arctic Cat Panther 570 - Engine: 565 cc / 34.5 ci, 2-stroke, 70 BHP / 52.2 KW, 2 cylinders, 73.8 / 2.91 x 66 / 2.6, Horizontal In-line
- 2004 Arctic Cat Sabercat 500 - Engine: 499 cc / 30.4 ci, 80 BHP / 59.7 KW, liquid cooled, 71 / 2.8 x 63 / 2.48, Mikuni
- 2004 Arctic Cat Sabercat 500 LX - Engine: dito
- 2004 Arctic Cat Sabercat 600 - Engine: 599 cc / 36.6 ci, 2-stroke, 118 BHP / 88.1 KW, liquid cooled, 73.8 / 2.91 x 70 / 2.76, Mikuni, fuel Injected
- 2004 Arctic Cat Sabercat 600 LX - Engine: dito
- 2004 Arctic Cat Sabercat 600 EFI EXT - Engine: dito
- 2004 Arctic Cat Sabercat 600 EFI - Engine: dito
- 2004 Arctic Cat Sabercat 600 EFI LX - Engine: dito
- 2004 Arctic Cat Sabercat 700 EFI EXT - Engine: 698 cc / 42.6 ci, 140 BHP / 104.5 KW, 79.7 / 3.14 x 70 / 2.76, liquid cooled, 2 stroke, Reed Valve, fuel injected
- 2004 Arctic Cat Sabercat 700 EFI - Engine: dito
- 2004 Arctic Cat Sabercat 700 EFI LX - Engine: dito
- 2004 Arctic Cat Z 370 - Engine: 367 cc / 22.4 ci, dito
- 2004 Arctic Cat Z 370 LX - Engine: dito
- 2004 Arctic Cat Z 440 LX - Engine: 431 cc / 26.3 ci, 2-Stroke, 2 cylinders, 50 bhp / 37.3 kw, 65 / 2.56 x 65 / 2.56, Horizontal In-line
- 2004 Arctic Cat Z 570 - Engine: 565 cc / 34.5 ci, 2-stroke, dito
- 2004 Arctic Cat Z 570 LX - Engine: dito
- 2004 Arctic Cat ZR 900 - Engine: 862 cc / 52.6 ci, dito
- 2004 Arctic Cat ZR 900 Sno Pro - Engine: dito
2004 Arctic Cat (all models) snowmobile service manual
Models covered in this manual:
File specifications
File type: PDF
Language: English
Pages: 644
Printable: Yes
Estimated download time: 1.87 Minutes
$17.99
Pay with Bitcoin
Product Information

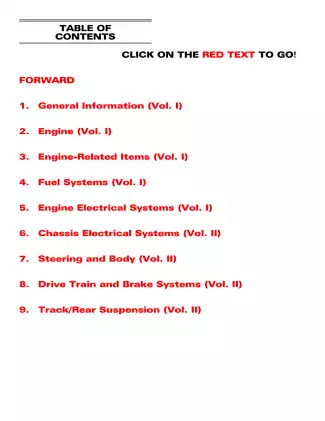

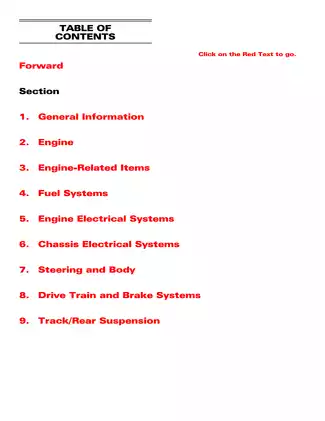

Table of Contents
General Information (Vol. I)
- Snowmobile Identification
- Recommended Gasoline and Oil
- Break-In Procedure
- Gasoline/Oil Ratio
- Oil Injection System
- Engine Serial Number Location
- Component Serial Numbers
- Control Locations/Functions
- Fuel Mixture
- Lubrication Points
- Torque Specifications
- Special Tools
Engine (Vol. I)
- Engine Removal and Installation
- Engine Disassembly
- Engine Inspection
- Engine Assembly
- Engine Troubleshooting
Engine-Related Items (Vol. I)
- Carburetor
- Fuel Pump
- Cooling System
- Exhaust System
Fuel Systems (Vol. I)
- Fuel System Components
- Fuel Tank
- Fuel Lines and Filters
- Fuel System Troubleshooting
Engine Electrical Systems (Vol. I)
- Ignition System
- Charging System
- Battery
- Electrical Components Inspection
- Electrical System Troubleshooting
Chassis Electrical Systems (Vol. II)
- Wiring Diagrams
- Lighting System
- Switches and Relays
- Electrical System Troubleshooting
Steering and Body (Vol. II)
- Steering Components
- Handlebar
- Body Panels
- Windshield
- Seat
- Skis and Ski Alignment
Drive Train and Brake Systems (Vol. II)
- Drive Clutch
- Driven Clutch
- Drive Belt
- Chaincase and Gears
- Track Drive Sprockets
- Brake System Components
- Brake System Troubleshooting
Track/Rear Suspension (Vol. II)
- Track Inspection and Replacement
- Rear Suspension Components
- Rear Suspension Adjustment
- Rear Suspension Troubleshooting
-
