1999 Yamaha Big Bear 400 ATV Service Manual Set with 2WD & 4WD Supplements (P/N LIT-11616-13-22)
425 Pages • 1 Printable PDF (English) • Download
Yamaha Models Covered & Key Technical Specifications
Models: Big Bear 400 (YFM400FWN, YFM400FWNM, YFM400FWNMC, YFM400N, YFM400NM, YFM400NMC, YFM400FWNP)
Sub-models / Variants: 4WD (YFM400FWN): Standard (5FU1), California Model (5FU2); 2WD (YFM400N): Standard (5GW1), California Model (5GW2); Selectable 2WD/4WD: YFM400FWNP (5FUA, USA)
Serial Number / VIN Location: VIN stamped on the left side of the frame; model label affixed to the frame.
Model Year: 1999
-
Engine: Air-cooled 4-stroke, SOHC, single-cylinder
-
Displacement: 386 cc
-
Bore x Stroke: 83.0 x 71.5 mm
-
Compression Ratio: 8.6:1
-
Compression Pressure: 920 kPa (131 psi) at 350 r/min
-
Idling Speed: 1,450–1,550 r/min
-
Ignition Timing: 10˚ BTDC at 1,000 r/min
-
Transmission: Constant mesh 5-speed forward, 1-speed reverse
-
Drive System: Shaft drive
-
Tire Pressure (Cold): 25 kPa (3.6 psi)
-
Brake Fluid: DOT 4
Yamaha Manual Features & Selected Content Preview
| Publication | Pages |
|---|---|

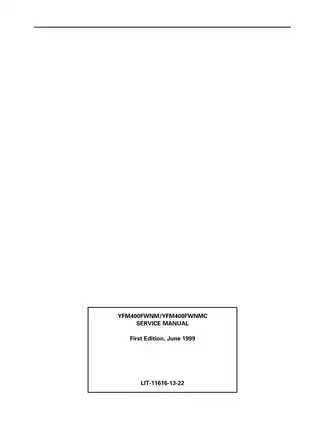

| Yamaha Big Bear 400 4WD Service Manual — YFM400FWNM / YFM400FWNMC (5FU1 / 5FU2), first edition, June 1999, P/N LIT-11616-13-22 | 339 |
| 2WD Supplementary Service Manual — YFM400NM / YFM400NMC (5GW1 / 5GW2), P/N LIT-11616-13-34 | 35 |
| Selectable 2WD/4WD Supplementary Service Manual — YFM400FWNP (5FUA, USA), P/N LIT-11616-15-22 | 51 |
Yamaha directs technicians to use each supplement with the included base manual. The supplements provide the service procedures and specifications that change for their respective models.
Search, Bookmarks, and Wiring Diagrams
Finding information in the PDF: The base manual and FWNP supplement have searchable text. The 2WD supplement and the base manual’s battery-charging flowcharts are image-only. Bookmarks open the main chapters, base wiring diagram, and both supplements. Small wire-color and connector labels in the wiring diagrams are legible when zoomed in.
The download contains one printable 425-page PDF in English. The total includes 25 cover, introductory, and contents pages across the three publications, plus both wiring-diagram pages.
Engine Overhaul, Drivetrain Service, and Electrical Diagnosis
Selected workshop topics are outlined below. The manuals also cover spark arrester cleaning and reverse control cable adjustment.
- Engine overhaul: Engine removal, cylinder-head and valve work, piston and crankshaft inspection, balancer service, timing-chain installation, and reassembly.
- Clutch and transmission: Primary and secondary clutch inspection, shift-fork and gear checks, middle drive shaft service, and recoil starter repair.
- Carburetion: Mikuni BSR33 teardown, jet and diaphragm inspection, and float-height and fuel-level adjustments.
- Drivetrain: Differential gear case and constant velocity (CV) joint service, rear axle and final drive repair, shim selection, and gear-lash measurement.
- Brakes and chassis: Hydraulic brake bleeding, caliper and master-cylinder service, rear drum service, steering knuckle and tie-rod inspection, and swingarm bearing replacement.
- Electrical diagnosis: Wiring diagrams and troubleshooting for ignition, starting, charging, lighting, cooling-fan control, and carburetor warming. The FWNP supplement adds diagnosis of the selectable drive system.

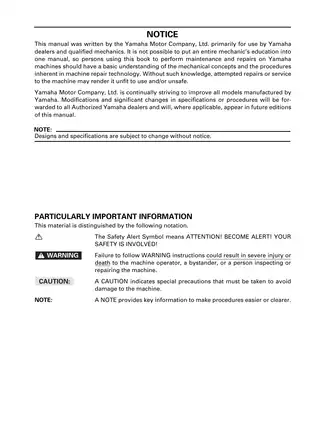

Yamaha wrote the base manual primarily for its dealers and qualified mechanics. It assumes familiarity with mechanical principles and workshop repair procedures.
Maintenance, Engine Measurements, and Carburetor Setup
Periodic maintenance charts are backed by procedures for valve-clearance adjustment, cylinder compression testing, and engine oil and filter replacement. Exploded views show how assemblies fit together, and lubrication diagrams trace oil flow through the pump, cooler, crankshaft, and transmission.
Engine overhaul procedures include valve-guide replacement and reaming, valve-seat lapping, and piston-to-cylinder clearance checks. Carburetor coverage includes the coasting enricher and vacuum piston, float-height illustrations, and fuel-level measurement with gauge YM-01312-A / 90890-01312. The base specifications give separate jet-needle settings for standard and California models.
Gear Setup and Model-Specific Procedures
The middle-gear and final-drive sections show how to use markings on the gears, crankcase, and bearing housings with the shim tables. This helps technicians select shims and check gear lash after replacing a gear or housing.
For the base model’s factory-assembled limited-slip differential, Yamaha covers removal, inspection, and lash adjustment and warns against dismantling the internal gear unit. The lash procedures also warn that overtightening the ring-gear holding bolt can damage the gear.
The 2WD supplement revises engine removal and installation, middle-gear service, and front-wheel removal. The FWNP supplement covers gear-motor installation, the shift fork sliding gear and 2WD/4WD shift sleeve, and differential-lash measurement with tool YM-01467 / 90890-01467.
Steering, Brake Service, and Electrical Fault Tracing
The steering section covers ball-joint replacement using tool YM-01474 and attachment set YM-01477, plus front wheel-bearing replacement. Cable-routing and shift-pedal adjustment illustrations support reassembly. The FWNP supplement also covers front brake and rear brake light switch adjustment.
The electrical chapter uses connector tests and pass/fail branches to trace no-spark, no-crank, charging, and lighting faults. For a four-wheel-drive indicator fault, the FWNP supplement gives separate checks for the On-command switch, gear motor, and indicator circuit.
For brake, axle, and swingarm work, follow the manual’s support and safety precautions and standard shop safety practices.
Fastener Torque and Pickup-Coil Test Examples
The YFM400FWN base manual specifies 140 N·m for the primary clutch carrier nut and 23 N·m for the final gear case oil filler bolt.
The base manual and FWNP supplement both specify 459–561 ohms at 20°C (68°F) for the pickup coil. Their ignition troubleshooting sections identify the White/Green and White/Red terminals and show the test-lead polarity for each model.
