Yamaha V6 2-Stroke Outboard Service Manual

Maintaining Yamaha V6 marine propulsion systems requires the specialized calibration data and sequential diagnostic logic found only in official factory literature. Engineered for master technicians and dedicated owners, this technical volume delivers the high-tier specifications needed to manage high-pressure fuel systems and complex CDI ignition timing. Executing seasonal maintenance or full powerhead overhauls with these OEM-standard protocols ensures long-term operational reliability and protects the engine's precision-machined internal components from premature wear.

Technical ROI & Equipment Longevity

• Eliminate expensive diagnostic guesswork with factory-verified sensor output voltages and resistance benchmarks.
• Ensure structural integrity during reassembly by adhering to the five-stage crankshaft and connecting rod tightening sequence.
• Protect marine gearsets from catastrophic failure using the specified hypoid SAE 90 lubricants and gear backlash shimming procedures.
• Prevent component seizure by strictly following the air-bleeding and discharge measurement steps for the precision oil injection system.

Document Metadata & Logistics

• Total Content: 178 High-Resolution Pages
• Publication Number: 67H-28197-28-11
• Release Date: October 1998 (1st Edition)
• File Format: Searchable PDF

Comprehensive Fleet & Model Coverage

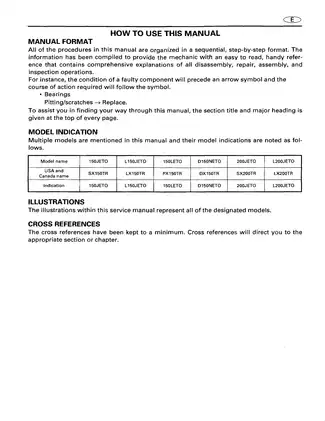

This manual provides actionable technical data for the following Yamaha V6 Outboard models and their corresponding regional variants:

• 130 Series: 130TXRA
• 150 Series: DX150 (TLRA, TLRB, TLRX, TLRY, TLRZ), LX150 (TXRA, TXRX, TXRY, TXRZ), PX150TLRX, SX150 (TXRA, TXRX, TXRY, TXRZ), VX150 (TLRA, TLRB, TLRY).
• 200 Series: LX200 (TXRA, TXRZ), SX200 (TXRA, TXRB, TXRZ), V200TLRX.
• Global Designations: 150J, L150J, 150L, D150N, 200J, L200J.

V6 Powerhead & Mechanical Content

• Chapter 1: General Info & Technical Identification
• Chapter 2: Specifications & Tightening Torques
• Chapter 3: Periodic Inspections & Adjustments
• Chapter 4: Fuel & Oil Injection Management
• Chapter 5: Power Unit Removal & Overhaul
• Chapter 6: Lower Unit Gearcase & Propulsion
• Chapter 7: Bracket & Trim/Tilt Hydraulics
• Chapter 8: Electrical Systems & Wire Harnesses
• Chapter 9: Troubleshooting & Failure Analysis

Marine Engineering Data Matrix

Advanced System Diagnostics

• CDI Logic: Detailed output peak voltage lower limits for charging and pulser coils across cranking, 1,500 RPM, and 3,500 RPM ranges.
• EFI Monitoring: Throttle Position Sensor (TPS) adjustment protocols using pink (P) and orange (O) lead output voltages (0.48–0.52V target).
• Thermal Protection: Resistance benchmarks for the engine cooling water temperature sensor (54–69 kΩ at 68°F) to ensure overheat protection.
• Fuel Metering: Multi-step procedures for reducing high-pressure line tension and inspecting the pressure regulator via Mity vac tests.

Precision Schematics & Fluid Mapping

• High-Resolution Zoom: Vector-quality exploded views of the vapor separator and fuel injection units for flawless seal orientation.
• Lubrication Layout: Explicit mapping of water-resistant grease points (Yamaha Grease A/Marine Grease) across the bracket and drive assemblies.
• Component Routing: Detailed pathing for low-pressure and high-pressure fuel hoses, including the specific placement of non-reusable plastic locking ties.
• Sealant Application: Critical coding for the use of Gasket Maker, Yamabond #4, and Loctite 271/572 on specific structural mating surfaces.

FAQ

What are the critical torque specifications for the flywheel and connecting rod assemblies?

Maintaining precise rotational balance is essential for the long-term structural integrity of the V6 powerhead. The flywheel magnet assembly requires a tightening torque of 190 Nm (137 ft-lb), which must be applied using a specialized holder to prevent crankshaft rotation. For the internal rotating assembly, the connecting rod bolts follow a strict five-stage sequence: an initial seat at 19 Nm (14 ft-lb), a secondary pull to 37 Nm (27 ft-lb), a reset to zero, and a final two-stage repetition of the 19 Nm and 37 Nm targets.

How do I troubleshoot ignition output issues on the 150-200 HP V6 series?

System diagnostics for the CDI units (codes 6G4, 6K0, 6G6, and 6K1) rely on peak voltage benchmarks measured during cranking and operation. When testing the CDI unit output for cylinders #1 through #6, you should see a lower limit of 100V under loaded cranking (Cranking 2) and 150V at 1,500 RPM. If the pulser coil is suspected, the hardware should provide at least 3.0V during Cranking 2 and rise to a minimum of 30V at 3,500 RPM to maintain reliable spark timing.

What are the factory-authorized clearances for piston-to-cylinder fitment?

To prevent thermal seizure and ensure optimal compression across the loop-charged induction system, the manual specifies distinct tolerances based on cylinder position. For Cylinder #1, the standard piston-to-cylinder clearance is 0.150–0.156 mm (0.0059–0.0061 in). For Cylinders #2 through #6, this gap is tighter at 0.100–0.106 mm (0.0039–0.0042 in). If wear exceeds the limit of 0.206 mm for #1 or 0.156 mm for #2–#6, a transition to first or second oversize pistons is required.

How is the high-pressure fuel injection system calibrated for idle stability?

Field performance at low RPM is dictated by the synchronization of the fuel control system and throttle position sensor (TPS). The high-pressure fuel line must maintain a constant 250 kPa (35.6 psi) at idle. Concurrently, the TPS output voltage (measured between the pink and orange leads) must be calibrated to a precision window of 0.48–0.52V when the throttle valves are fully closed. This synchronization ensures the microcomputer CDI provides the exact fuel-to-air ratio needed for a steady 730 RPM idle.

What is the procedure for verifying lower unit seal integrity?

To avoid water ingress and subsequent gear failure, the lower unit should undergo a holding pressure test whenever the gear oil (SAE 90) is changed. Using a pressure tester on the gear oil level check hole, apply 100 kPa (14.2 psi) of air. The gearcase must hold this specific benchmark for at least 10 seconds without a drop. This test validates the condition of the drive shaft oil seals and the shift rod detent mechanism prior to high-speed operation.
