Johnson Evinrude 48–235 HP Outboard Shop Manual 1973–1989

This Clymer multi-model shop manual covers 1973–1989 Johnson and Evinrude 48–235 HP two-stroke outboards, including 2-cylinder inline, 3-cylinder inline, V4, V6, and Sea Drive applications.

PDF Search, Bookmarks and Wiring Detail

Search and navigation: PDF text search is not available. Thirteen embedded section bookmarks provide navigation. Some printed pages appear out of sequence, and dense wiring diagrams require zooming to read small connector labels and wire-color keys.

Missing pages: Printed page 136 is absent from the ignition troubleshooting section, pages 440–452 are missing at the oil-injection chapter, and page 491 is absent from the wiring section.

One printable English-language PDF contains 559 pages, including 12 opening cover/reference pages and four blank pages. The wiring section spans 92 PDF pages, including one of those blank pages.

Ignition Diagnosis, Powerhead Repair and Lower-Unit Service

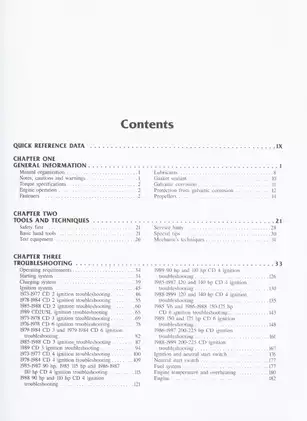

The following selected coverage highlights outline the main workshop sections. Other topics include storage preparation, recovery after submersion, and protection against galvanic corrosion.

• Electrical and ignition diagnosis: Starting, charging, neutral-start/stop circuits, and CD 2, CD2USL, CD 3, CD 4, and CD 6 fault isolation, including S.L.O.W. and QuikStart checks.

• Timing and synchronization: Throttle pickup, maximum advance, idle, choke, and shift-linkage adjustments, organized by control type, engine family, horsepower group, and model year.

• Fuel-system repair: Diaphragm pump service, carburetor removal and overhaul, float and low-speed settings, and choke/primer solenoid checks.

• Powerhead service: Flywheel and powerhead removal, crankcase disassembly, internal inspection, reassembly, reed-block service, and thermostat work.

• Gearcase repair: Water-pump service, hydro-mechanical and mechanical gearcase overhaul, shift-rod setup, and post-overhaul pressure/vacuum testing.

• Power trim and Sea Drives: External and integral trim/tilt diagnosis, motor/current-draw tests, pressure checks, and Sea Drive SelecTrim/Tilt service.

• Wiring and test diagrams: Model-specific engine wiring, starter-circuit tests, connector views, ignition test connections, and power trim/tilt diagrams.

Written for marine owners and mechanics, the manual explains basic tools and techniques while identifying major engine and gearcase work that requires greater mechanical ability and specialized equipment.

Model Identification and Sea Drive Coverage

Procedures are sorted by horsepower, year, cylinder layout, ignition family, and control arrangement. The identification section explains model and serial identification and decodes the model-year suffix used from 1980 onward.

Sea Drive coverage runs from 1982 through 1989 and spans 1.6L, 1.8L, 2.0L, 2.5L, 2.6L, 2.7L, and 3.0L versions, including S-type and ducted configurations. The chapter maps these applications to the corresponding V4 or V6 cross-flow and loop-charged families. It covers Sea Drive-specific hardware; engine-side repair refers back to the outboard chapters.

Circuit Tests and Diagnostic Equipment

Starting and charging: Tests cover starter-circuit operation, voltage drop, alternator output, stator windings, rectifiers, and regulators. Ignition diagnosis extends to sensor coils, charge coils, ignition coils, power packs, isolation diodes, and key/stop circuits, with resistance and output specifications for the relevant systems.

Test equipment: Specified equipment includes an S-80 or M80 neon tester, Stevens PL-88 load adapter, TS-77 terminal extenders, and CD or peak-reading voltmeters. Jumper-lead instructions identify OMC connector pin P/N 511469 and socket P/N 581656.

Cold-engine resistance checks help distinguish electrical faults from heat-inflated readings that could otherwise lead to unnecessary sensor-coil, charge-coil, or timer-base replacement.

Named illustrations include the Starter Circuit Test, Voltage Drop Test, Alternator Stator Resistance Test, Power Pack Output Test, Isolation Diode Check, and Sea Drive SelecTrim/Tilt wiring diagram.

Carburetors, Fuel Delivery and Linkage Adjustment

Fuel-system coverage includes tri-jet carburetors, anti-siphon devices, tanks, fuel lines, and primer bulbs. Carburetor orifice charts address high-elevation operation, while serial-specific notes identify certain 150 HP engines with oversized carburetor venturis and lean-running complaints.

Synchronization sections distinguish early and late inline engines, tiller and remote controls, V4 groups, and V6 groups through 225 HP. Reference tables provide model- and year-specific timing and spark-plug data.

Oil-injection scope: Chapter Eleven’s OMC Economixer and OMC VRO service pages are absent. The fuel chapter refers VRO pump service to that missing chapter, although related wiring references remain in the end-of-book diagram section.

Powerhead Inspection and Gearcase Overhaul

Step-by-step instructions cover pistons and rings, connecting rods, crankshaft and bearing assemblies, and cylinder-block inspection, with separate details for cross-flow and loop-charged engines. Tables provide internal inspection limits and component-specific tightening torques.

Factory-oversize powerheads marked OS have a specific repair limit: the manual calls for cylinder/crankcase replacement rather than further cylinder reboring.

Lower-unit scope: Hydro-mechanical procedures include the hydraulic-assist shift components and oil pump. Mechanical-gearcase procedures cover the conventional shifting assembly, with shift-rod dimensions and sealing tests. The internal mechanical-gearcase overhaul section excludes 1989 48 and 50 HP models; general gearcase removal and water-pump coverage still applies.

The manual warns that reversing a used water-pump impeller that has taken a set can cause premature failure and extensive powerhead damage. It also links grease trapped at the top of the driveshaft to excessive shaft preload and premature powerhead or gearcase failure.

Trim/Tilt Systems and Shop Safety

External power trim/tilt is used on 2-cylinder, some 3-cylinder, and early V4 engines. Integral systems are used on some 3-cylinder, later V4, and all V6 engines. Motor-current, operating-time, and pressure tables support electrical and hydraulic fault isolation, with system removal/installation procedures.

Internal hydraulic faults are referred to a dealer or qualified specialist; complete internal hydraulic component overhaul is outside the documented service coverage.

Running tests, rotating-engine work, trim/tilt pressure checks, fuel service, and powerhead removal involve high ignition voltage, moving parts, residual pressure, flammable liquids, and heavy assemblies. Follow the manual’s cautions, use the specified test equipment, and support the engine securely during repair work.

A Preview of Three-Cylinder Piston-Ring Specifications

The three-cylinder inline powerhead table lists a piston-ring end gap of 0.007–0.017 in. and side clearance of 0.0015–0.0040 in. The same table provides bore, stroke, bearing, crankshaft-journal, and crankpin specifications for internal inspection.
