Johnson Evinrude 48-235hp Outboard Motor 1965–1989 Service & Repair Manual (OEM)

Across five PDF manuals totaling 2,340 pages, this set covers Johnson and Evinrude two-stroke outboards from the mid-1950s through 1989, with overlapping volumes for small, mid-range, and high-horsepower engines. Coverage is divided by publication rather than one blanket model range, which matters when matching repair procedures and specifications to a particular engine.

• The 1956–1970 1.5–40 hp and 1958–1972 50–125 hp service volumes cover early small engines, 3-cylinder models, V4 engines, and the ignition, charging, and lower-unit designs used through the 1960s and early 1970s.
• The Evinrude Service & Repair Handbook covers 1.5–35 hp models for 1965–1978, with a separate 1976–1978 service-information supplement.
• Seloc publication 1302 covers 1971–1989 Johnson/Evinrude 1–60 hp, 1- and 2-cylinder 2-stroke models. The 48–235 hp 1973–1989 outboard shop manual adds 2-cylinder, 3-cylinder, V4, V6, and Sea Drive coverage.

Operational Overview and Technical Reference

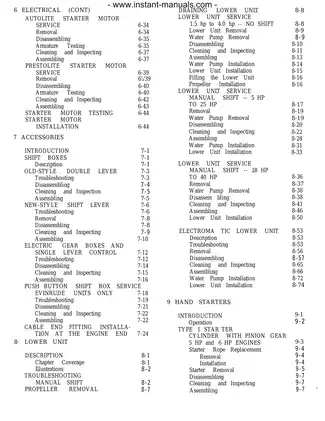

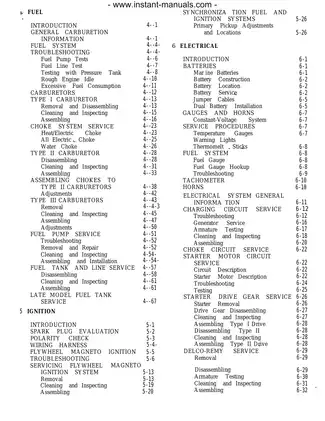

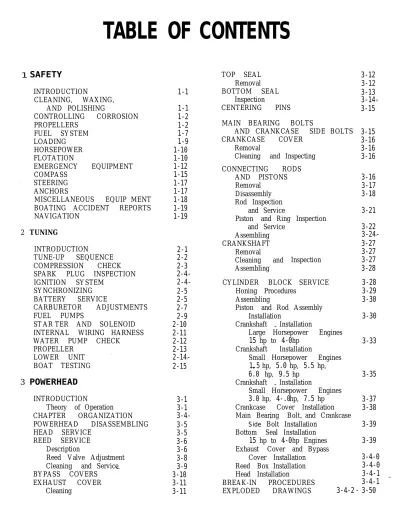

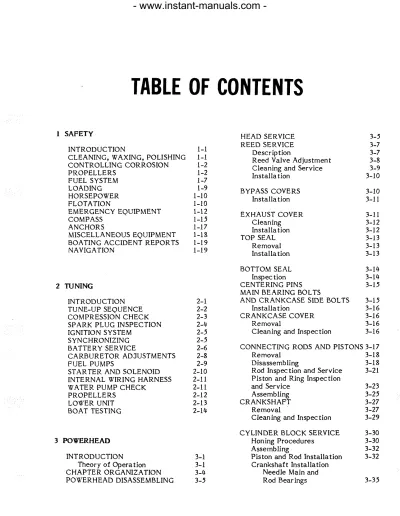

The repair material goes well beyond routine tune-up data. Powerhead sections cover compression checks; cylinder-head, reed, exhaust- and bypass-cover service; crankshaft, connecting-rod and piston work; cylinder honing; crankshaft seals; main bearings; and reassembly checks. Fuel chapters separate carburetor types and choke or primer systems, fuel pumps, tanks, and lines. The later 1971–1989 material also covers VRO oil injection and AccuMix (AutoBlend).

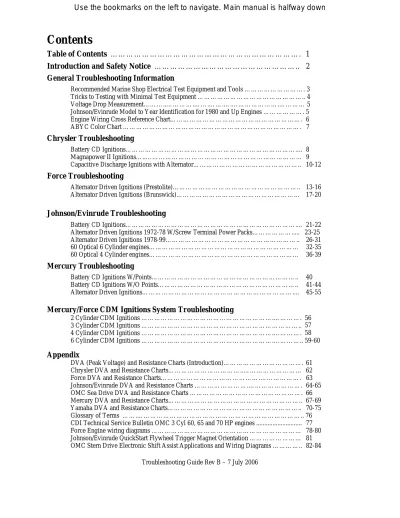

Ignition coverage follows the hardware changes across the production years, from flywheel magneto and distributor magneto/battery systems through breaker-point and sensor-controlled capacitor-discharge (CD) ignition. Electrical chapters cover marine batteries, generator and alternator charging circuits, rectifiers/regulators, starter motors, solenoids, gauges, horns, and internal wiring-harness troubleshooting.

Lower-unit repair is likewise configuration-specific. The manuals distinguish no-shift, manual-shift, electric-shift/Electramatic gearcases, water pumps, propeller-shaft and clutch components, and hydraulic electric-shift units rather than treating every gearcase as interchangeable. The 48–235 hp volume separately indexes synchronization and timing procedures for 2-cylinder, 3-cylinder, V4, and V6 engine families.

Major shop procedures described in the set include powerhead disassembly and overhaul, carburetor repair and synchronization, ignition diagnosis, starter and charging-system testing, lower-unit teardown and resealing, water-pump service, and gearcase setup. These are the kinds of model-specific jobs commonly sent to a marine repair shop when the correct service data are unavailable.

The safety material is specific to outboard work: fuel-system handling, ignition isolation, battery polarity, cooling during engine tests, and precautions around rotating components are built into the service sections. Marine fuel and high-voltage ignition systems require an appropriate test environment and correctly rated diagnostic equipment before teardown or powered testing.

Engine and Component Data

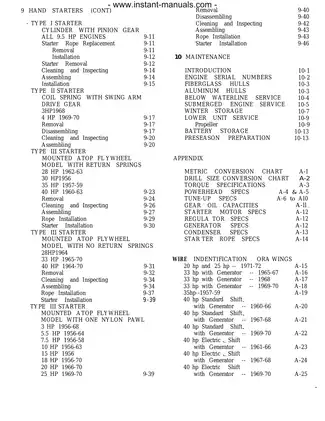

The technical tables and service text provide model-dependent clearances, torque values, tune-up settings, gear-oil capacities, starter and charging-system specifications, and wiring identification. One older multi-cylinder tuning section makes an important distinction that a single “normal compression” number cannot: more than 5 psi variation between cylinders is treated as evidence that the lower-compression cylinder may have a ring, piston, or cylinder problem. For breaker-point systems, the specified point setting is 0.020 in.; this is a breaker-point gap, not a spark-plug gap.

Electric-shift gearcases have their own lubricant requirement. The service data call for Type C / Premium Blend Gearcase Lube in electric-shift units and Hi-Vis Gearcase Lube for other units. The Type V electric-shift V4 section also documents pinion-depth setup with OMC shimming tool No. 315767 at zero clearance and a 40–45 ft-lb pinion-nut specification. Other named service tools include OMC No. 312752 for holding the driveshaft and OMC No. 317002 for carburetor high-speed orifices.

Several repair cautions show why the model-specific procedures matter. On the early powerheads, removing the top crankshaft seal with the wrong type of tool can damage the powerhead flanges badly enough to require block replacement. On 1972 lower units, the specified bearing must be pulled rather than driven from the housing; the manual identifies OMC puller No. 385546 because forcing the bearing out can break the retaining lip and ruin the lower-unit housing. On CD-ignition models, reversed battery polarity can damage charging-system diodes and leave the engine with cranking but no ignition.

The illustration set supports diagnosis as well as assembly work. Representative titles include “Schematic diagram of a magneto ignition system,” “Functional diagram of a CD ignition system with sensor,” “Troubleshooting schematic diagram of the shift circuit,” and “Exploded drawing of the complete powerhead for a three-cylinder engine.” Wiring references include “Wire Identification – 40 hp Electric Shift with Generator – 1969–70” and a 1970 60 hp 3-cylinder alternator wiring identification drawing. Together, these views make the electrical, ignition, powerhead, and lower-unit repair depth visible before a specific procedure or specification table is selected.
