1973–1991 Johnson Evinrude 60–235HP 3-Cylinder, V4 & V6 Outboard Motor Service & Repair Manual

This service and repair manual covers the 1973–1991 Johnson and Evinrude 60–235 HP outboard series, including 3-cylinder, V4, and V6 two-stroke powerheads and outboard jet drives. It combines tune-up procedures with internal engine work, gearcase overhaul, and system diagnosis.

Chapter navigation and wiring detail: Embedded PDF bookmarks open the major chapters and appendix. Technical text search is not usable in this file. Small wiring labels need enlargement, and some fine lettering and circuit lines remain uneven.

• Powerhead repair: Removal, disassembly, cylinder inspection, piston and crankshaft installation, reed service, and reassembly procedures for the different engine configurations.

• Fuel and lubrication: Carburetor overhaul, float adjustments, fuel-pump testing, primer-choke diagnosis, VRO checks, and fuel/ignition synchronization for the applicable systems.

• Ignition and electrical: Capacitor-discharge ignition troubleshooting, charge-coil and sensor tests, alternator charging circuits, starter-motor service, and model-specific wiring diagrams.

• Lower units and controls: Hydro-electric, hydraulic-assisted mechanical, and mechanical shift assemblies, plus gearcase overhaul, water-pump service, remote control boxes, and cable adjustments.

• Power tilt and trim: Hydraulic fault diagnosis, electrical circuit tests, valve checks, cylinder service, and Prestolite and Bosch trim-motor testing and repair.

• Outboard jet drives: Jet-pump disassembly, impeller inspection and shimming, reverse-gate adjustment, driveshaft-bearing lubrication, and cooling-system flushing provisions for the different housings.

The diagnostic tests and internal overhaul work suit experienced outboard owners and marine technicians with the specified electrical testers, measuring equipment, and service tools.

Powerhead and Fuel System Documentation

The text walks through powerhead disassembly, reed service, and exhaust cover maintenance. It also explains two-cycle operation, lubrication requirements, and the differences between cross-flow and loop-charged configurations; exploded powerhead drawings identify the assemblies involved.

Piston assembly installation is supported by cylinder inspection limits, ring checks, and crankshaft-bearing procedures. The repair notes explain how loose ring-locating pins can let a ring rotate, catch a cylinder port, and break.

Carburetor types: Fuel delivery sections break down front-draft single-barrel and double-barrel designs, including low-, intermediate-, and high-speed orifice arrangements. Type IV units receive separate treatment, while carburetor exploded views support parts identification during overhaul.

Float-system maintenance and fuel-pump pressure tests sit alongside primer-choke diagnosis. Orifice-service cautions explain how an incorrectly sized screwdriver can burr a calibrated passage and restrict fuel flow; the specified OMC 317002 tool is identified.

VRO and hose routing: The VRO oil-injection coverage explains fuel/oil-pump operation, warning signals, and supply checks, with pump replacement as an assembly. Separate V4 and V6 primer-choke hose-routing diagrams distinguish primer lines from fuel-recirculation hoses.

Drivetrain and Tilt/Trim Diagnostics

Lower-unit repair sections distinguish hydro-electric shifting, hydraulic-assisted mechanical shifting, and fully mechanical clutch-dog arrangements. Matching the installed gearcase to these sections helps identify the applicable solenoid tests, shift adjustments, and pinion-shimming procedures before overhaul.

Remote-control coverage extends to neutral-start interlocks and throttle/shift cable settings. The jet-drive chapter explains impeller-to-housing clearance adjustment and reverse-gate alignment, while referring driveshaft-bearing assembly dismantling to a suitably equipped dealer.

Trim hydraulics: Functional hydraulic diagrams show fluid paths through the valves and cylinders in different operating modes. Current-draw checks and pressure testing with the OMC 390010 tester help separate electrical faults from hydraulic leakage or mechanical binding.

Ignition, Charging, and Starter Testing

The ignition sections distinguish Type I terminal-style powerpacks from Type II connector-style units. Illustrated test connections accompany CDI flywheel-magneto diagnosis, stator charge-coil and magneto pick-up sensor resistance checks, timing adjustments, and synchronization procedures.

Alternator coverage includes rectifier and regulator tests, while starter procedures address Prestolite and American Bosch motors. Appendix wire-identification diagrams trace ignition, starting, charging, and control circuits for the listed engine groups.

Maintenance and Specification Highlights

Routine maintenance includes thermostat inspection, propeller pitch selection, winter storage, and preseason preparation. Submerged-engine recovery is divided into fresh-water, salt-water, and running-engine situations, reflecting different damage risks.

Technical data is organized within the chapters and appendix, including model identification, piston-to-cylinder clearances, ignition settings, spark-plug specifications, and gear-oil capacities. Torque tables and assembly instructions address connecting-rod caps, cylinder-block fasteners, and tightening sequences.

Safety: Marine fuel and high-voltage ignition work involve fire and electrical hazards. Follow the manual's task-specific precautions and equipment requirements.

PDF Contents and Page Count

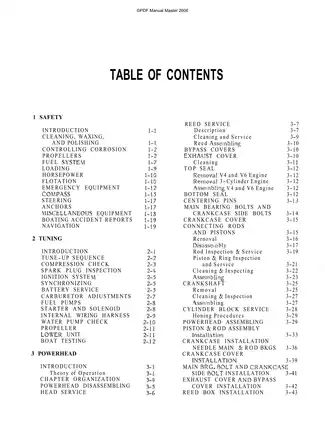

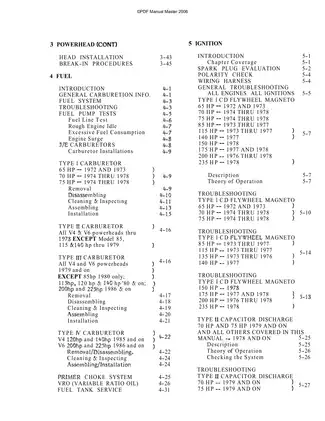

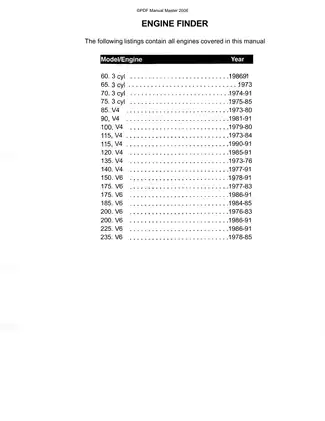

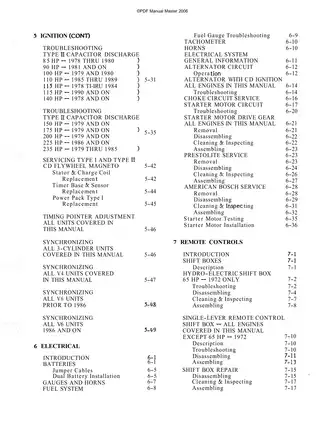

The English-language manual is supplied as one printable PDF. Its 404 pages include one cover, one Engine Finder page, five contents pages, 370 main chapter pages, and a 27-page appendix containing specifications, hose-routing diagrams, and wiring diagrams.
