Johnson/Evinrude 48–235 HP Outboard Shop Manual 1973–1990 (ISBN-10 0-89287-555-0)

579 Pages • Printable PDF • 81.94 MB • Download

4.5starstarstarstarstar_half(2)
$13.00 Instant Download / No Shipping Fees
or

Credit/debit card, Apple Pay or Google Pay

30-day refunds for defective files or manuals not as described. Refund policy.

print
Save & print
Keep a copy on your device
lock
Secure Payment
Stripe

Evinrude Models Covered & Key Technical Specifications

Models: 48 HP, 50 HP, 55 HP, 60 HP, 65 HP, 70 HP, 75 HP, 85 HP, 88 HP, 90 HP, 100 HP, 110 HP, 115 HP, 120 HP, 135 HP, 140 HP, 150 HP, 175 HP, 185 HP, 200 HP, 225 HP, 235 HP

Models & Model Codes:

70 HP — B model suffix (1975)

85 HP — 85EL, 85TXL

115 HP — 115EL, 115TXL

150 HP — 150STL; Johnson: 150TLCTE, 150TXCTE; Evinrude: 150TRLCTE, 150TRXCTE

200 HP — CH, CIA, CIB, CIM (timing-table variant identifiers)

Sub-models / Variants: 2-cylinder inline, 3-cylinder inline, V4, V6, Sea Drive, Tiller, Remote Control, Electric Start, Manual Start, 1.6L, 1.8L, 2.0L, 2.5L, 2.6L, 2.7L, 3.0L; internal power trim/tilt variants: CIH, CIA, CIB, CIM

Model Years: 1973–1990 (1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990)

Serial Breaks — 1983 150 HP Carburetor Advisory: Johnson 150TLCTE: 5850458 and above; Evinrude 150TRLCTE: 288678 and above; Johnson 150TXCTE: 5852028 and above; Evinrude 150TRXCTE: 290406 and above. These serial breaks identify engines addressed by the lean-running carburetor advisory.

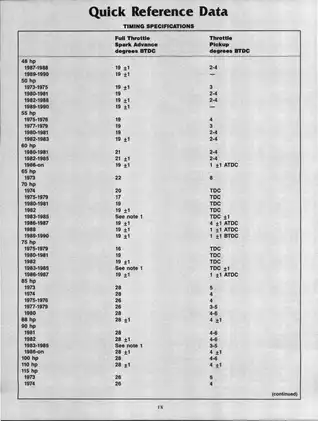

  • Full Throttle Spark Advance: 16° to 32° BTDC depending on model and year

  • Throttle Pickup Timing: Model-specific settings from 8° BTDC to 4 ± 1° ATDC, including TDC settings

  • Spark Plug Gap: 0.030 in. to 0.040 in. based on model and speed application

  • Battery Capacity: 80 Amp-hour or 105 Amp-hour variants

  • Sensor Coil Resistance (1973–1978 CD3): 7.5–9.5 ohms at 70° F

  • Charge Coil Resistance (various models): 220–330 ohms at 70° F for 1976–1978 CD6; 985 ± 25 ohms cold for 1989–1990 150/175 HP CD6 with the 35-amp system

  • Ignition Coil Primary Resistance: 0.1 ± 0.05 ohms

  • Ignition Coil Secondary Resistance: 225–325 ohms for the specified CD2, CD3 and later CD systems; 250–300 ohms for 1978–1984 CD4

Evinrude Manual Features & Selected Content Preview

Clymer’s third-party shop manual covers recreational-use 1973-1990 Johnson and Evinrude two-stroke outboards: 48-75 hp inline engines, 85-140 hp V4s, and 150-235 hp V6s. It is not an OMC factory manual and expressly excludes similar-displacement engines built for racing, sailing, or commercial service.

Searchable PDF, Chapter Bookmarks and Diagram Detail

Text search and wiring labels: The PDF has an OCR text layer and embedded bookmarks for the chapters, index, and wiring diagrams. OCR errors can affect individual words and codes. Small wiring labels and connector markings require zooming on densely labeled sheets.

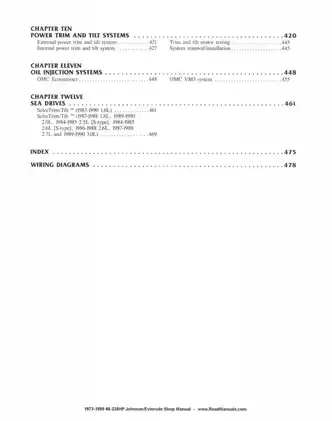

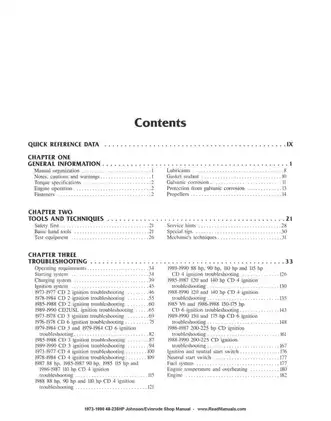

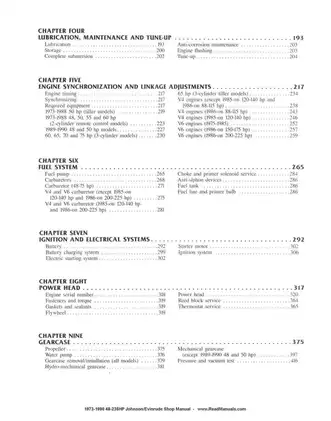

One printable, English-language 579-page PDF, including 10 preliminary pages with the chapter guide, contents, quick-reference data, and introduction. The total also includes the 92-page wiring-diagram section.


Outboard Diagnosis, Setup and Overhaul

The following selected repair topics outline the manual’s coverage. Other subjects include storage preparation, submerged-engine service, and galvanic-corrosion prevention.

  • Engine setup and linkage work: Timing-pointer alignment, carburetor pickup, idle and maximum-advance adjustment, throttle stops, and shift/throttle linkage setup.

  • Fuel and oil delivery: Fuel-pump testing, carburetor overhaul, float adjustment, choke and primer-solenoid service, OMC Economixer programming, and VRO diagnosis.

  • Powerhead repair: Step-by-step procedures for removal, crankcase disassembly, crankshaft and connecting-rod work, piston inspection, reassembly, reed-block service, and thermostat service.

  • Gearcase service: Hydro-mechanical and mechanical gearcase overhaul, water-pump service, bearing and seal replacement, pinion shimming, shift-rod adjustment, and pressure/vacuum testing.

  • Electrical fault isolation: CD2, CD2USL, CD3, CD4, and CD6 troubleshooting, plus starting, charging, neutral-start, fuel-system, and overheat diagnosis.

  • Trim, tilt and wiring: External and internal power trim/tilt tests, Sea Drive SelecTrim/Tilt service, electrical schematics, and component connection diagrams.

Written for first-time owners through professional mechanics, the manual begins with tool and technique fundamentals. Major powerhead work still requires considerable mechanical ability, and advanced electrical tests require the specified meters and adapters.

Synchronization and Carburetor Differences

Synchronization procedures distinguish tiller and remote controls, the 1989-1990 48/50 hp group, 60-75 hp three-cylinder models, three V4 configurations, and three V6 configurations. These divisions help match the setup procedure to the engine before adjustments begin.

Carburetor sections distinguish 48-75 hp units, earlier V4/V6 assemblies, 1985-on 120/140 hp engines, and 1986-on 200/225 hp engines. They cover fuel tanks, primer bulbs, and anti-siphon devices as well as carburetor service.

A serial-specific advisory addresses lean running near wide-open throttle on certain 1983 150 hp engines. It distinguishes incorrect venturi castings from the correct carburetor configuration.

Ignition, Starting and Oil-Injection Diagnosis

Electrical tests cover voltage drop, charge coils, power coils, sensor coils, ignition coils, power packs, rectifiers, and regulators. Later-system sections include S.L.O.W. overheat limiting, QuikStart operation, and shift-interrupter diagnosis where applicable.

Starter service distinguishes Bosch and Prestolite designs, including the Bosch gear-reduction starter used on 1986-on 200-225 hp V6 engines. The CDI sections warn that incorrect power-pack lead connections can damage the power pack or ignition system.

OMC Economixer coverage includes programming and signal-circuit tests. VRO sections address fuel pressure, oil flow, pickup-filter service, warning circuits, and excessive smoke.

Powerhead Inspection and Gearcase Repair

Powerhead tables provide fastener torques, bore and piston inspection limits, ring clearances, and crankshaft dimensions. The identification section explains coded model years and flags factory “OS” powerheads: these already-oversize engines cannot be rebored again; cylinder damage requires replacement of the cylinder/crankcase assembly.

Gearcase procedures separate conventional mechanical units from the dedicated 1989-1990 48/50 hp design. The chapter warns that operating a gearcase that fails its pressure or vacuum test can cause major gearcase damage.

Power Trim/Tilt and Sea Drive Coverage

Trim/tilt troubleshooting separates electrical faults from hydraulic problems and includes switch, sender, gauge, motor, and pressure tests. Suspected hydraulic faults are referred to a dealer or qualified specialist for service.

Sea Drive coverage is configuration-specific: 1983-1990 1.6L; 1987-1988 1.8L; 1989-1990 2.0L and 3.0L; 1984-1985 2.5L and 2.6L S-type; 1986-1988 2.6L; and 1987-1988 2.7L SelecTrim/Tilt systems. The Sea Drive chapter handles installation-specific service; related engine work uses the corresponding outboard chapters.

Wiring Examples and Workshop Equipment

Representative wiring sheets include separate Evinrude and Johnson 1973 50 hp manual-start diagrams, 1984 V4 power trim/tilt, and 1984 OMC Economixer circuits. Later examples cover 1988-1990 200-225 hp engines, both 1989-1990 150-175 hp charging versions, and Sea Drive SelecTrim/Tilt.

Hundreds of photographs and line drawings support the mechanical procedures. Tool references include the OMC universal puller P/N 378103, bearing remover/installer P/N 391257, universal shift-rod gauge P/N 389997, and trim/tilt pressure tester P/N 390010.

Fuel-system work calls for proper ventilation and fire precautions, while flywheel and powerhead work requires the ignition to be disabled. Live CDI and trim-system tests should be performed only with the specified equipment and connections.

Examples of Trim-Motor Test Specifications

Internal power trim/tilt no-load specifications include 7-9 amps for the Prestolite motor P/N 393259 and 4.5 amps for Showa motors. Separate under-load tables distinguish motor type, production code, movement direction, and operating time; no-load figures are distinct from trimming, tilting, and stall-test current.
