1992–2001 Evinrude/Johnson V4, V6 & V8 Outboard Service Manual

This Seloc service manual covers 1992–2001 Evinrude/Johnson V4, V6, and V8 outboards, including carbureted and Ficht Fuel Injection (FFI) configurations. It combines routine maintenance with system diagnosis, component repair, and powerhead overhaul procedures.

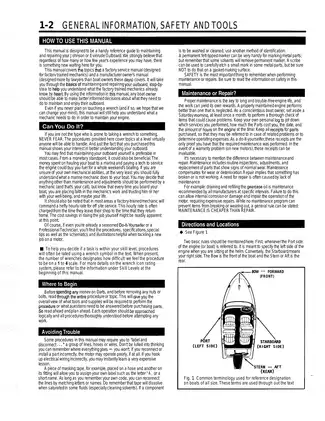

PDF Search, Diagram Detail and Page Count

Text search and wiring detail: The PDF has an OCR text layer, but search coverage is incomplete: some procedure pages, index pages, and diagrams have little or no searchable text. No embedded PDF bookmarks are provided. Small wiring labels require zooming, and some fine lines in dense FICHT diagrams are faint.

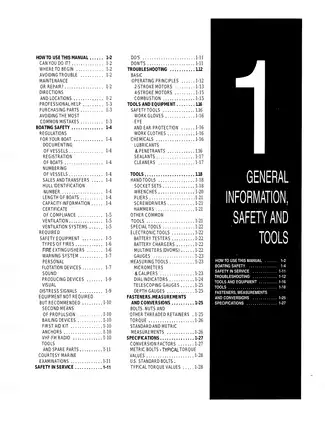

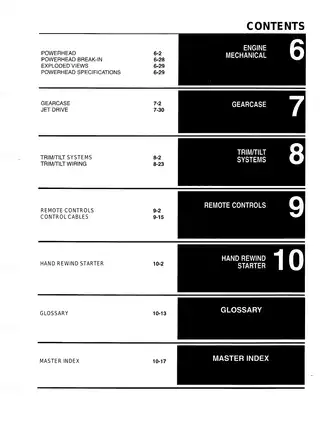

One printable English-language PDF contains 520 pages, including the opening cover and two overview contents pages.

Powerhead, FICHT and Lower-Unit Service

The following selected coverage highlights outline the main workshop content. Other topics include hand rewind starter service and boat maintenance.

• Powerhead repair: Step-by-step removal, disassembly, inspection, and assembly procedures, with separate illustrations for cross-flow, loop-charged, carbureted, and FICHT configurations.

• Fuel systems: Carburetor overhaul and synchronization, fuel-pump testing, FICHT trouble-code diagnosis, injector checks, and fuel-delivery circuit testing.

• Ignition and electrical: CD ignition fault isolation, optical timing-sensor tests, charging-system checks, starter-motor overhaul, connector pin charts, and wiring diagrams.

• Lubrication and cooling: VRO2 pump tests and overhaul, FICHT oil-delivery diagnosis, thermostat checks, water-pump impeller replacement, and cooling-water schematics.

• Gearcase and jet drive: Bearing and seal service, driveshaft shimming, shift-rod adjustment, pressure testing, and jet impeller removal and clearance adjustment.

• Trim, tilt and controls: FasTrak and conventional trim/tilt diagnosis and overhaul, relay tests, remote-control repair, and control-cable adjustment.

Written for boat owners as well as experienced DIY mechanics and professional technicians, the manual explains basic maintenance while identifying work that calls for special tools or professional assistance.

Engine Systems and Maintenance

The maintenance chapter covers lubrication, compression checks, tune-up, winter storage, spring commissioning, and clearing a submerged motor. Timing and synchronization procedures distinguish cross-flow engines from the different loop-charged configurations rather than treating all V-engines alike.

Powerhead repair extends to crankcase separation and inspection of cylinder bores, pistons, rings, connecting rods, crankshafts, and bearings. Component inspection criteria and exploded powerhead views support decisions about which parts can be reused during a rebuild.

FICHT spark-plug coverage addresses indexing and the distinction between pinned and non-pinned cylinder heads. Those details matter when matching service information to an engine that may have received replacement components.

FICHT Fuel and Electrical Diagnosis

The FICHT sections distinguish engines with hard fuel rails from those using flexible fuel-distribution lines. Fuel and cooling-water flow diagrams show the different layouts, while diagnostic charts address starting faults, rough running, and related symptoms.

Injector coverage includes static and dynamic checks, pressure and resistance tests, and removal and installation. Internal injector overhaul applies to the serviceable fuel-rail design; the flange-retained injectors used on other configurations are replaced as assemblies.

Trouble-code explanations and EMM connector pin charts help trace a fault through its circuit before an electronic module is replaced. An unresolved electrical fault can damage a replacement component, making that distinction more than a parts-selection issue.

CD ignition troubleshooting includes a spark-evaluation and stop-circuit functional diagram. The optical timing-sensor section also explains how intense light can interfere with testing when the timing-wheel cover is removed.

Cooling, Lubrication and Drive Service

VRO2 coverage includes pump priming, oil-delivery checks, warning circuits, and pump overhaul. Air leaks in the oil supply can interrupt lubrication and damage the powerhead, a risk addressed by the system’s supply and delivery tests.

Cooling-system water-flow schematics accompany thermostat, pressure-relief valve, and water-pump service. Gearcase procedures distinguish standard and counter-rotation units and cover seal testing, bearing-carrier work, and shift adjustment.

FasTrak fluid-flow diagrams support trim/tilt diagnosis alongside motor, relay, sender, and hydraulic-component checks. Remote-control sections cover surface, concealed-side, and binnacle-mounted units.

Examples of Technical Test Data

For the covered jet drives, the maintenance section specifies approximately 0.020–0.030 in. (0.5–0.8 mm) between the impeller edge and intake-housing cone wall.

The FICHT injector leak-test specification is 30 psi (207 kPa), held for at least five minutes. The accompanying text distinguishes serviceable fuel-rail injectors from replacement-only designs.
