Johnson/Evinrude 4 HP to 300 HP 1970–2006 Outboard Motors Manual (Rev B, edition July 7, 2006)

• Covers 1970–2006 Johnson, Evinrude, Mercury, Force, and Yamaha outboards ranging from 4 HP to 300 HP, including multi-cylinder CDI, ADI, and CDM ignition configurations.
• Official CDI Electronics troubleshooting publication, P/N: Rev B-7, dated July 2006.
• Features 47 detailed wiring connection diagrams, 28 specific DVA and resistance data charts, alongside 5 illustrated flywheel magnet alignment guides.
• Serves as the definitive 87-page PDF reference for diagnosing high-speed misses, no-start conditions, and S.L.O.W. activation on carbureted outboard systems.

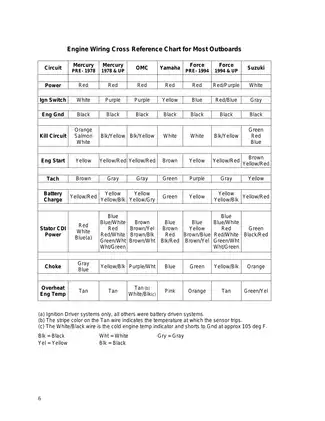

• Includes exact values for: engine wiring cross reference charts, ABYC color codes, OIS 2000 optical ignition systems, Electronic Shift Assist (ESA) applications, trigger resistance benchmarks, and voltage drop measurement procedures.
• Outlines comprehensive diagnostic workflows for: Prestolite ADI ignitions, Magnapower II systems, switch box testing, stator output evaluation, power pack diagnostics, and points-type ignitions.

Diagnostic Coverage and System Walkthrough

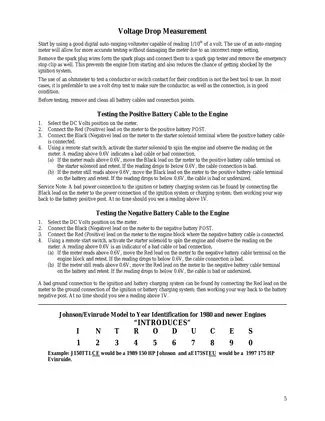

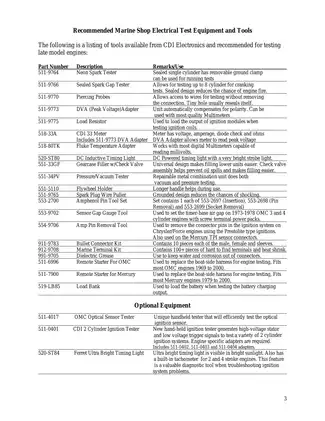

When chasing an elusive high-speed miss or a dead cylinder, this manual breaks down electrical and ignition malfunctions across major marine platforms to help get engines off the bench faster. It details the exact marine shop tools required for the job, outlining the proper use of DVA peak reading adapters, spark testers, and piercing probes during complex troubleshooting procedures. Inside, the documentation covers step-by-step instructions that typically require specialized dealership interventions, such as complete voltage drop measurement testing on positive and negative battery cables, verifying bias circuit resistance, and indexing the flywheel to check timing on all cylinders. Mechanics will find essential Wiring diagrams for Force engines, detailed OMC Stern Drive Electronic Shift Assist wiring diagrams, and OIS 2000 Stator To Power Pack Connection views. Working with marine electrical systems carries inherent risks of severe high-voltage shocks or engine fires, so verifying proper safety gear, disconnecting batteries appropriately, and utilizing correct shop protocols is essential before probing live ignition circuits. Tables segment the engines by horsepower, year, and model to map out precise DVA output values and resistance ranges for stators, triggers, and ignition coils.

Specification Previews

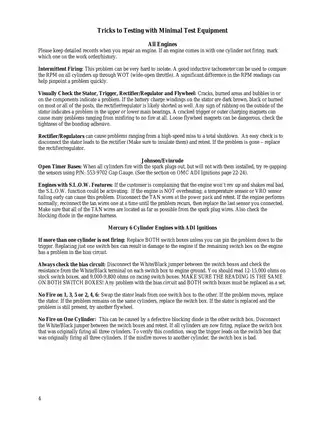

Diagnostic reference values target complex multi-cylinder setups, providing a massive advantage for day-to-day shop productivity by eliminating hours of tracing dead shorts. This includes data for the Johnson/Evinrude OIS 2000 optical systems alongside Mercury CDM designs. Stator resistance for many 9 to 16 Amp charging systems is documented squarely at 5000–7000 ohms. Need cranking specs? The stator charge coil voltage for most configurations sits at 180V or higher during the crank phase. Furthermore, trigger resistance for 2-cylinder models commonly ranges between 150 and 200 ohms. Beyond standard specifications, the text highlights critical real-world repair traps. For instance, replacing a single switch box on a Mercury 6-cylinder ADI system without verifying the bias circuit resistance will instantly destroy the new module. Additionally, utilizing standard automotive spark plug wires instead of Gray inductive resistor wires on Johnson/Evinrude OIS 2000 optical ignitions causes severe RFI noise, ultimately burning out the power pack control circuits. Similarly, installing maintenance-free batteries on older points-type ignitions leads to erratic firing and rapid component failure. Having these exact benchmarks and system warnings allows for accurate verification of ignition performance across multiple engine generations. Please note that this page outlines the specific contents and technical data provided inside the publication, rather than acting as a standalone repair guide.
