Johnson & Evinrude 2007 Outboard Manual Set: 9.9/15 HP + E-TEC 40–60/75–90 HP (P/N 5007207)

Each publication provides service procedures for its own engine family. The Johnson manual covers carbureted engines; the E-TEC manuals address direct injection, electronic engine management, and controlled oil injection.

The E-TEC manuals call for the matching Parts Catalog for parts identification and additional exploded views. Parts catalogs, diagnostic software, interfaces, and service tools are not included in this PDF set.

PDF Files, Search and Navigation

Text search and bookmarks: Service text is searchable, and all three PDFs contain chapter and subsection bookmarks. The external “Return to Menu” bookmark points to a separate menu file that is not included. Small wiring labels require zooming.

The ZIP contains three printable English PDFs totaling 933 pages, including six cover pages and six blank or largely blank divider pages. Safety sections, indexes, diagrams, troubleshooting charts, and EMM service-code charts are included in the publication totals above.

Powerhead, Fuel-System and Electrical Service

This selected content overview highlights the main workshop areas. Other included topics range from propeller selection to recovery procedures for submerged engines.

• Powerhead repair: Step-by-step removal, disassembly, inspection, reassembly, and installation, with compression checks, cylinder-bore and piston inspection, crankshaft and connecting-rod service, and seal replacement.

• Johnson fuel and synchronization: Fuel-pump testing, carburetor overhaul, float setup, tamper-resistant mixture adjustment, intake-manifold and leaf-valve inspection, and throttle, idle, and shift-linkage adjustments.

• E-TEC engine management: EMM service codes, S.A.F.E. and SystemCheck diagnosis, static and dynamic tests, timing verification, and throttle-position-sensor calibration.

• E-TEC fuel and oil injection: Fuel-pressure and supply-vacuum tests, vapor-separator service, injector replacement and coefficient programming, oil-system priming, flow checks, and warning-circuit tests.

• Gearcase overhaul: Pressure and vacuum leak testing, water-pump and impeller service, bearing and seal replacement, and gear, clutch-dog, driveshaft, shift-rod, and propeller-shaft assembly.

• Electrical and ignition diagnosis: Charging-system checks, starter-circuit testing, ignition-component tests, connector service, and model-specific wiring diagrams.

• Midsection and starting systems: Steering-handle and twist-grip service, exhaust-housing and bracket repair, E-TEC trim/tilt service, and applicable manual-starter rope, spring, pawl, and lockout procedures.

BRP wrote these manuals for qualified, factory-trained technicians already familiar with Evinrude/Johnson Special Tools; they are not substitutes for hands-on service experience.

Configuration, Rigging and Maintenance

Johnson accessories: The listed Johnson engines are rope-start tiller models. Charging-system information also addresses installations equipped with Electric Start Kit P/N 586398, Remote Electric Start Kit P/N 176905, or Battery Charging Kit P/N 176942. Remote-control setup and supporting Modular Wiring System diagrams do not broaden the base engine-model coverage.

Installation and predelivery: Procedures cover hull and transom preparation, measuring and drilling, steering requirements, fuel-supply and battery setup, control-cable adjustment, and cable, hose, and wire routing. Predelivery checks address fuel and oil priming, start-in-gear prevention, emergency stopping, cooling-water delivery, operating temperature, and break-in.

Maintenance: Inspection schedules are supported by corrosion protection, cooling-system flushing, lubrication, storage, and pre-season service instructions.

Ignition Tests and Factory Repair Data

The Johnson electrical chapters include a charging-system check chart, running alternator-output testing, stator and rectifier resistance checks, tachometer tests, starter voltage and voltage-drop tests, solenoid tests, and no-load current-draw checks.

Ignition diagnosis covers flywheel indexing, stop circuits, charge and sensor coils, power-pack output, and ignition coils. Pack Load Adapter P/N 507983 is specified for power-pack output testing.

Component torque charts, lubricant requirements, wear limits, and electrical test specifications provide reference data for evaluating measured parts and test results. Illustrated tools include Float Gauge P/N 324891 and Cylinder Bore Gauge P/N 771310.

E-TEC Fault Tracing and Injector Setup

The EMM sections distinguish current, stored, and persistent faults and explain engine-history review and live monitoring. Dynamic fuel and ignition tests compare cylinder contribution, helping trace a running problem to the affected cylinder and circuit before components are replaced.

Computer-based procedures use Evinrude Diagnostics Software P/N 763724 and Diagnostic Interface Cable P/N 437955. The manuals also cover timing verification, TPS calibration, rebuilt-powerhead break-in programming, and oil-control settings. Software replacement requires Bootstrap Tool P/N 586551; internal EMM sensors are not individually serviceable.

Fuel-injector service requires matching each injector’s cylinder location and serial number with its compensation data. Replacement instructions address coefficient installation, crush rings, seals, and fuel-manifold connections.

Gearcase, Cooling and Trim Service

The E-TEC gearcase chapters include driveshaft shimming with Tool P/N 393185. The larger-engine manual distinguishes “S” and “O” gearcases with different housings, shafts, gears, and bearings.

The Johnson procedures include gearcase extension-kit considerations and identify Gearcase Bearing Housing Puller P/N 386631 and Universal Pinion Bearing Remover and Installer P/N 391257. Manual-starter work specifies Starter Spring Winder/Installer P/N 342682.

E-TEC cooling diagnosis separates thermostat-controlled operation from pressure-relief-valve operation and traces cooling water through the EMM and vapor separator. Trim/tilt sections include relay tests, motor current-draw checks, leak diagnosis, and hydraulic-unit removal and servicing.

Wiring Diagrams and Component Views

Named references include the Water Flow Diagram, MWS Instrument Wiring Harness, Lanyard Switch / Emergency Stop Circuits, MWS Key Switch and Neutral Safety Switch, and MWS Dashboard.

The files also contain the Johnson 9.9/15 HP ignition-system diagram, E-TEC engine-harness diagrams, and the EMM Inputs and Outputs Diagram. Exploded service charts and powerhead views show component positions and assembly relationships.

Service Cautions

The Johnson intake-manifold section warns that the two horsepower versions use leaf valves of different thicknesses; turning over a used valve can cause breakage and serious powerhead damage. Its assembly instructions also warn that incorrect piston-ring alignment at the locating pins can break rings and permanently damage the powerhead.

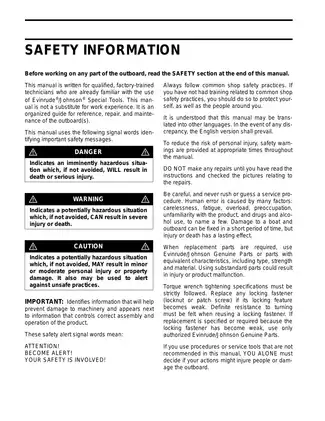

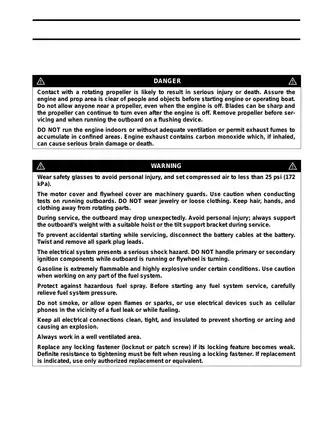

Fuel-system work, running ignition tests, propeller service, and supporting the outboard involve fire, shock, rotating-part, and drop hazards. Read the manual's Safety section and follow its factory precautions before beginning any repair.

Carburetor and Cooling Specification Preview

For the Johnson carburetor, the float-drop specification is 1 to 1 3/8 in. (25 to 35 mm), measured from the carburetor-body base with the body in its normal running position. The carburetor chapter explains this measurement alongside float-level inspection.

The E-TEC cooling sections specify different minimum water pressures at 5000 RPM: 11 psi for the 40/50/60 HP engines and 16 psi for the 75/90 HP engines. These values accompany the model-specific cooling-system checks.
