2001 John Deere PowerTech 2.9L Diesel Engines Component Technical Manual (P/N CTM125)

John Deere Component Technical Manual CTM125, dated 14JUN01 and replacing the 26JUN98 edition, covers repair and diagnosis of PowerTech 2.9L diesel engines used in the listed 5000, 5010, and 5020 series tractors, Goldoni tractors, and OEM equipment.

Text search and navigation: The written sections and specification tables are searchable, with embedded PDF bookmarks for procedures, reference sections, and the index. Labels inside some illustrations are not included in text search.

• Engine overhaul: Cylinder-head repair and valve seat lapping, wet-liner replacement and deglazing, piston inspection, crankshaft service, and PLASTIGAGE bearing-clearance checks.

• Valve train and timing: Rocker-arm assembly service, valve-clearance adjustment, camshaft bushing replacement, and timing-gear installation and backlash checks.

• Fuel injection: Stanadyne DB2/DB4 and Delphi/Lucas DP200 pump removal and installation, dynamic timing with TIME-TRAC, and conventional and RSN nozzle testing.

• Lubrication and cooling: Oil-pump inspection, piston cooling jet checks, oil-cooler service, water-pump overhaul, thermostat testing, and cooling-system pressure testing.

• Turbocharger diagnosis: GARRETT TA25 and SCHWITZER S1B radial and axial clearance checks, boost-pressure testing, and removal and installation procedures.

• Fault isolation: Engine and fuel-system troubleshooting by symptom, compression and blow-by tests, oil-pressure checks, and cold-start and light-load advance testing.

Written for experienced technicians, this manual assumes workshop skills and access to the specified service tools and test equipment.

Engine Applications and Production Changes

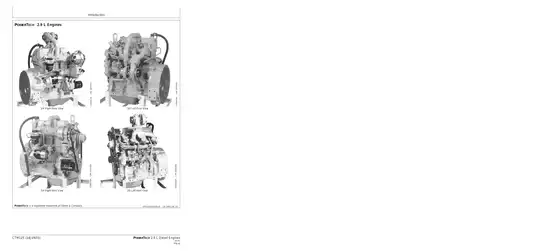

Saran (CD) and Torreon (PE) applications are identified by engine model, with certified and non-certified versions. Naturally aspirated 3029D and turbocharged 3029T configurations are covered; the application chart distinguishes Agritalia-built and Augusta-built tractors.

The repair sections distinguish rocker-arm shaft revisions, tongue-and-groove and Precision Joint connecting rods, and spur and helical timing gears. The front-plate gasket change at 291261CD is documented, including compatibility with the earlier block design. These details help match parts and repair procedures to the engine's actual build.

Engine-only scope: Vehicle-specific engine removal and reinstallation require the corresponding machine technical manual.

Cylinder Head, Block, and Crankshaft Repair

The overhaul sections provide engine disassembly and reassembly sequences, liner and piston protrusion checks, crankshaft regrinding limits, and post-repair break-in procedures. Separate instructions address straight and tapered connecting-rod pin ends and different thrust-bearing arrangements.

Precision Joint rods have matched fracture surfaces; scraping or nicking these faces damages the rod-and-cap joint. Longitudinal and transversal engine cutaways and the valve-actuating-parts exploded view support component identification.

Fuel-System Testing and Service Limits

Nozzle procedures cover spray pattern, leakage, opening pressure, and adjustment. The conventional-nozzle chatter test does not apply to Rate Shaping Nozzles (RSN), an important distinction when evaluating injector condition.

Fuel bleeding, Stanadyne throttle-lever and aneroid service, and Delphi/Lucas shut-off-solenoid tests are included. The cold-start sections explain the different operation and testing of the Stanadyne solenoid and Delphi/Lucas wax-motor systems.

Specialist work: Internal injection-pump repair and bench adjustment are assigned to authorized pump workshops. Nozzle disassembly and reconditioning are referred to a Stanadyne dealer.

The dynamic-timing section warns that adjusting pump position while the engine is running can seize the pump. Electrical coverage focuses on fuel-system components; complete tractor wiring diagrams are outside this manual's scope.

Lubrication, Cooling, and Turbocharger Service

Lubrication coverage distinguishes standard, auxiliary-drive, and remote-filter installations. Cooling repair includes water-pump seal and bearing work, system deaeration, coolant-heater handling, and the radiator exploded view.

Turbocharger procedures cover housing orientation, prelubrication, and break-in, supported by the SCHWITZER cutaway view. Internal turbocharger repair is reserved for an authorized workshop.

Repair Specifications and Workshop Tools

Group 300 consolidates component torque tables, wear limits, bearing-bore dimensions, valve settings, and application-specific injection-pump data. Group 305 collects diagnostic and test specifications.

Tool references include the FKM10429A/JT07158 TIME-TRAC timing kit, JDG670A injection-pump removal tool, JDG739B camshaft-bushing service set, and KCD10001 cylinder-liner tool.

Follow the manual's safety precautions for high-pressure fuel, battery servicing, heavy-component handling, and engine break-in.

Printable PDF and Included Pages

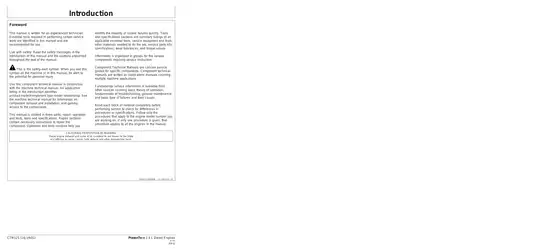

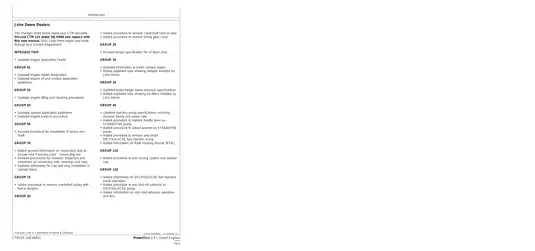

One printable 312-page PDF contains 276 technical pages, 12 introductory and contents pages, a 4-page index, front and back covers (2 pages), and 18 blank or header-only pages. All are included in the stated total.
